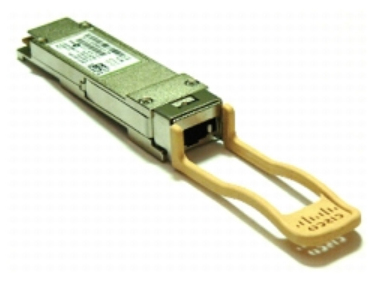

Cisco QSFP-40G-SR4= 40Gbps 850nm QSFP+ 492ft Fiber Optic Transceiver
The Cisco QSFP-40G-SR4= is a fiber optic QSFP+ transceiver module designed for 40 Gigabit Ethernet connectivity. It supports Ethernet 40GBASE-SR4 technology and provides a data transfer rate of 40Gbps.
This 40G QSFP+ transceiver operates at an optical wavelength of 850 nm and supports a maximum transfer distance of 492 ft. Its plug-in module form factor is designed for compatible networking equipment.
The module uses wired connectivity technology and supports the 40 Gigabit Ethernet data link protocol. It provides a 1 x 40Gb Ethernet interface with MPO multi-mode connectivity.
The Cisco QSFP-40G-SR4= complies with Laser Class 1, ELV, RoHS, IEC 60825-1, GR-326-CORE, MSA, GR-20-CORE, and GR-1435-CORE standards.
The transceiver operates from 32 °F to 158 °F, features a beige housing, and is supplied as a packaged quantity of one. It includes a limited 90-day warranty.
Key Features
-
40Gbps data transfer rate
-
QSFP+ transceiver module
-
Ethernet 40GBASE-SR4
-
850 nm optical wavelength
-
492 ft maximum transfer distance
-
MPO multi-mode interface
-
Wired connectivity technology
-
Plug-in module form factor
-
Laser Class 1 compliant
-
RoHS and MSA compliant
-
32 °F to 158 °F operating temperature
Specifications
| Miscellaneous |
|
| Compliant Standards |
Laser Class 1, ELV, RoHS, IEC 60825-1, GR-326-CORE, MSA, GR-20-CORE, GR-1435-CORE |
| Networking |
|
| Form Factor |
Plug-in module |
| Connectivity Technology |
Wired |
| Data Transfer Rate |
40Gbps |
| Optical Wave Length |
850 nm |
| Cabling Type |
Ethernet 40GBASE-SR4 |
| Data Link Protocol |
40 Gigabit Ethernet |
| Type |
QSFP+ transceiver module |
| Max Transfer Distance |
492 ft |
| Header |
|
| Product Line |
Cisco |
| Packaged Quantity |
1 |
| Manufacturer Warranty |
|
| Service & Support |
Limited warranty - 90 days |
| Environmental Parameters |
|
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
158 °F |
| Service & Support |
|
| Type |
90-day warranty |
| General |
|
| Device Type |
QSFP+ transceiver module |
| Color |
Beige |
| Form Factor |
Plug-in module |
| Expansion & Connectivity |
|
| Interfaces |
1 x 40Gb Ethernet - MPO multi-mode |
