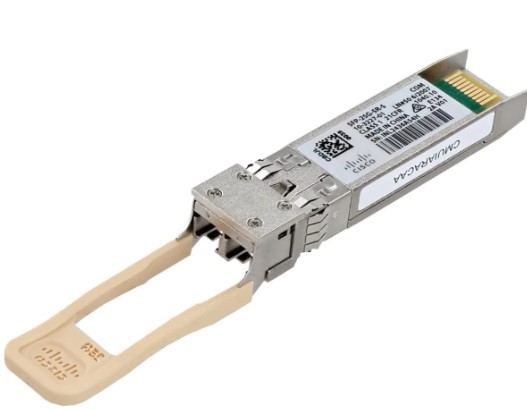

Cisco SFP-25G-SR-S 25GBASE-SR SFP28 MMF 100m Transceiver Module
The Cisco SFP-25G-SR-S is a 25GBASE-SR SFP28 transceiver module designed for 25 Gigabit Ethernet connectivity over multimode fiber (MMF). It provides high-speed optical networking with a maximum link length of up to 100 m on compatible OM4 and OM5 fiber.
This 25G SFP28 transceiver operates at an 850 nm wavelength and uses an LC Duplex connector. It is designed for MMF applications and supports a 50.0-micron fiber core size.
The module supports different modal bandwidth and cable distances depending on the fiber type. It provides 70 m on OM3, 100 m on OM4, and 100 m on OM5 MMF.
With a maximum power consumption of 1.2 W, the Cisco SFP-25G-SR-S provides a compact optical connectivity solution for compatible networking equipment. The module supports host RS-FEC according to IEEE Clause 108.
The transceiver has transmit and receive wavelength operation across 840–860 nm. Its specified transmit and receive optical power levels support reliable 25GBASE-SR connectivity over supported MMF links.
Key Features
-
Cisco SFP-25G-SR-S transceiver module
-
25GBASE-SR Ethernet standard
-
SFP28 form factor
-
MMF cable type
-
850 nm wavelength
-
LC Duplex connector
-
1.2 W maximum power consumption
-
RS-FEC (IEEE Clause 108) host FEC
Specifications:
| Product |
SFP-25G-SR-S |
| Description |
25GBASE-SR SFP28 Module for MMF |
| Ethernet Standard |
25GBASE-SR |
| Form Factor |
SFP28 |
| Cable Type |
MMF |
| Wavelength |
850 nm |
| Fiber Core Size |
50.0 microns |
| Cable Distance |
100 m |
| Connector |
LC Duplex |
| Maximum Power Consumption |
1.2 W |
| Host FEC |
RS-FEC (IEEE Clause 108) |
| Transmit Power, Maximum |
+2.4 dBm |
| Transmit Power, Minimum |
-8.4 dBm |
| Receive Power, Maximum |
+2.4 dBm |
| Receive Power, Minimum |
-10.3 dBm |
| Transmit/Receive Wavelength |
840–860 nm |
