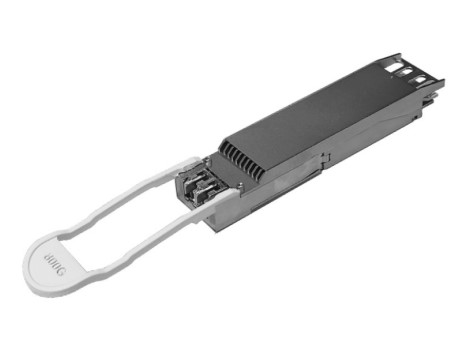

Coherent FTCE3327E1PCL 800G OSFP Digital Coherent Optics (DCO) Transceiver

Coherent FTCE3327E1PCL 800G OSFP DCO OIF 800ZR 120km Tunable Transceiver

The Coherent FTCE3327E1PCL is an 800G OSFP Digital Coherent Optics (DCO) transceiver designed for high-capacity optical networking. It supports an operating distance of up to 120 km and features OIF 800ZR technology for long-distance optical transmission.

This 800G OSFP transceiver uses a C-Band 5THz DWDM tunable wavelength configuration, providing tunable optical operation across the C-band. It features a high transmitter optical output power of 0dBm.

The transceiver uses a coherent receiver and supports a tunable DP-16QAM/8QAM/QPSK transmitter. Its 825 Gb/s data rate provides high-capacity optical connectivity for compatible network applications.

The FTCE3327E1PCL features a CMIS management interface and digital diagnostics. It uses a Duplex SMF media type and an LC connector for optical connectivity.

Designed for operating temperatures from 0°C to 70°C, the Coherent FTCE3327E1PCL provides an OSFP-based DCO solution for long-distance, high-speed optical networking applications.

Key Features

• 800G OSFP Digital Coherent Optics transceiver

• OIF 800ZR technology

• 120 km operating distance

• 800G data transfer rate

• 825 Gb/s data rate

• C-Band 5THz DWDM tunable wavelength

• 0dBm transmitter optical output power

• Coherent receiver

• Tunable DP-16QAM/8QAM/QPSK transmitter

• CMIS management interface

• Duplex SMF media

Specifications
