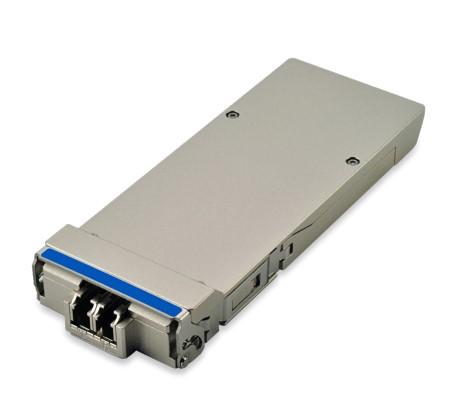

Coherent FTLC1122SDNL 10km Multi-rate 100Gb/s CFP2 Optical Transceiver Module

Need a fast, reliable link that can carry 100 Gb/s over long distances without breaking the budget? The Coherent FTLC1122SDNL 10km Multi-rate 100Gb/s CFP2 Optical Transceiver Module is built for exactly that. It plugs into a CFP2 slot and turns a single-mode fiber run into a high-speed highway for data centers, metro networks, and carrier backbones. If you are tired of frequent signal loss, overheating modules, or costly upgrades, this transceiver gives you the distance, speed, and stability you need today.

Coherent FTLC1122SDNL 10km Multi-rate 100Gb/s CFP2 Optical Transceiver Module

Network operators often struggle with limited reach and high power use when they try to push 100 Gb/s across a campus or metro link. Shorter reach forces extra equipment, higher cost, and more points of failure. This module solves the problem by delivering up to 10 km of reach on a single-mode fiber while staying under 5 W of power. The result is a clean, low-maintenance solution that fits into existing CFP2 slots and meets industry standards for 100G Ethernet and OTU4. You get longer distance, lower power, and full compliance without redesigning the whole rack.

Key Features

• CFP2 form factor for easy integration.
• Aggregate bit rate of 103.1 Gb/s and 112 Gb/s.
• Maximum link length of 10 km on SMF.
• 4 28 Gb/s DFB-based LAN-WDM transmitter.
• Duplex LC receptacles for reliable fiber connection.
• Single 3.3 V power supply simplifies wiring.
• MDIO management interface provides real-time diagnostics.
• Lead-free construction meets EU Directive 2011/65/EU.

Specifications:
