Features:
Wired Transfer Rate 10/100Mbps
Private Mold Yes
Application Outdoor
Brand Name foclink
5G Wi-Fi Transmission Rate None
Chipset QCA9531+EC20
Memory +Flash 64+16G
Antenna 4G: External 5dBi antenna 2.4G: External 5dBi antenna
wifi speed 300Mbps
wifi 2.4GHz
Standard Supports IEEE802.11 B/g/n standard
port 1 100Mbps RJ45 WAN port 1 100Mbps RJ45LAN port
slot 1 micro SIM card slot
button 1 RESET reset button
interface 1 micro USB interface
Specifications:
| Motherboard Chip |
DDR: 64MB; Flash: 16MB |
| PA Chip |
2.4GHz SKY85330-11 × 2 |
| Antenna |
2.4GHz: 5dBi omnidirectional; 4G: 5dBi omnidirectional |
| 4G Specification |
150Mbps downlink and 50Mbps uplink data rates;
EC25-V, EC25-J, EC25-A, EC25-AU, EC25-AUT, EC25-AUTL, EC25-E |
| Output Power |
Class3 (23dBm+-2dB) for LTE FDD
Class3 (23dBm+-2dB) for LTE TDD
Class3 (24dBm+1/-3dB) for WCDMA
Class E2 (27dBm+-3dB) for EDGE 850/900MHz
Class E2 (26dBm+3/-4dB) for EDGE 1800/1900MHz
Class 4 (33dBm+-2dB) for GSM 850/900MHz
Class 1 (30dBm+-2dB) for GSM 1800/1900MHz |
| Transmission Rate |
2.4GHz: 300Mps
LTE Cat4: 150Mbps(DL MAX) 50Mbps(UL MAX) |

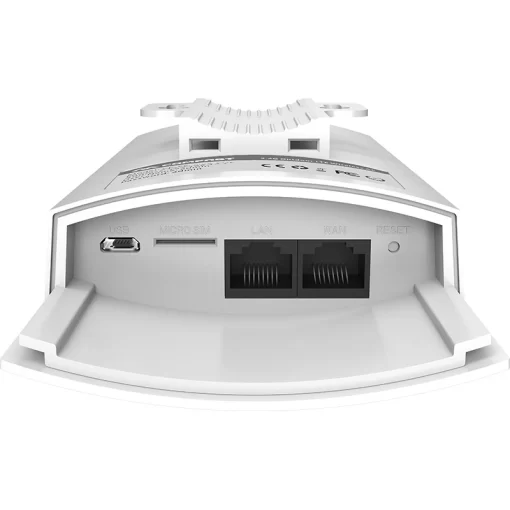

| Physical Interface |
1*10/100Mbps LAN RJ45 port (Support DC24V POE Power supply);
1*10/100Mbps WAN RJ45 port;
1*RESET Resent button;
1*Micro USB (Support DC5V 2.5A Power supply)
1*Micro SIM Cassette |
| Indicator Light |
Power, WAN, LAN, WiFi, 4G, 3 × signal strength indicators |
| Power Supply |
24V PoE (up to 100m) or USB power; Adapter: 24V 0.5A |
| Power Dissipation |
< 12W |
| Protection Level |
IP66 |

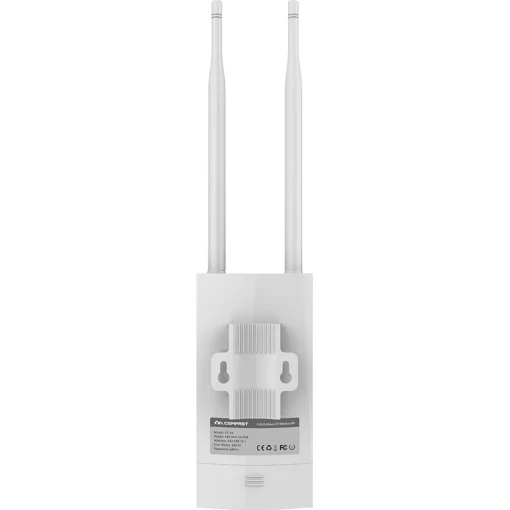

| Installation |
Pole mount, wall-mount, scaffold installation |
| Product Size |
353 × 85 × 44 mm |
| Working environment |
Working temperature: -10℃~55℃
Storage temperature: -40℃~70℃
Working humidity: 10%~90%RH Non-condensing
Storage humidity: 5%~95% RH Non-condensing |
