When your office network keeps dropping or you struggle to power devices over a single cable, the frustration can halt productivity and waste time. The CommScope UTG Category 6A twisted-pair patch cord is designed to end those interruptions, delivering reliable high-speed data and robust Power over Ethernet (PoE) in one tidy solution. It’s the ideal cable for anyone who needs fast, stable connections without the hassle of multiple wires.

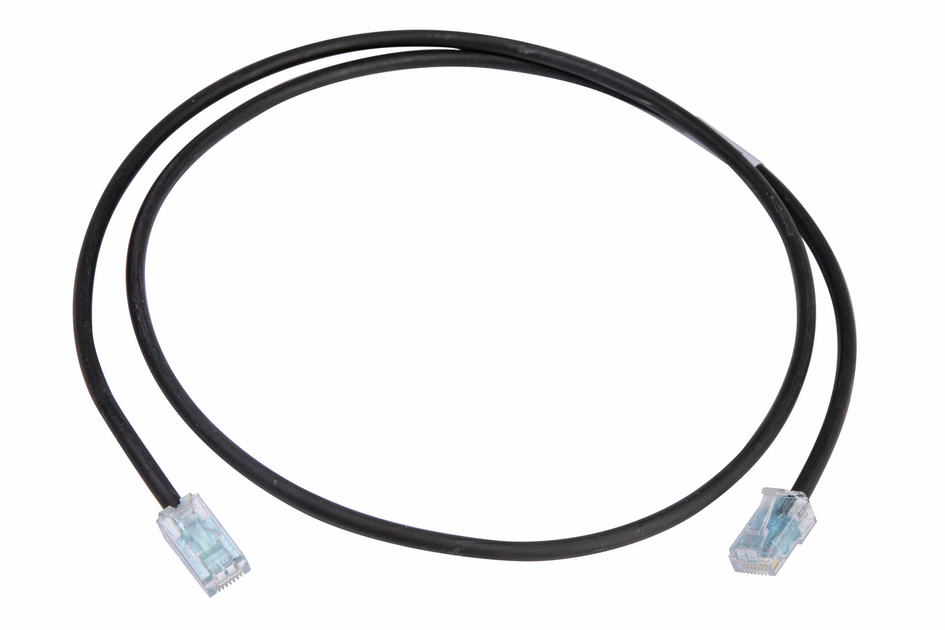

MiNo6A Cat 6A U/UTP Reduced Diameter RJ45 Patch Cord, LSCM Dual Rated
This patch cord tackles the common problem of unreliable network performance caused by outdated or low-grade cabling. In today’s data-driven workplaces, slow or intermittent connections can mean missed deadlines and angry users. The CommScope UTG Category 6A cable solves this by meeting ANSI/TIA-568.2-D and ISO/IEC 11801 Class EA standards, ensuring you get up to 10 Gbps speeds and full support for IEEE 802.3bt Type 4 (90 W) PoE. The result is a single, tidy cable that carries both data and power safely and efficiently.
Usages
The UTG patch cord fits seamlessly into a range of environments. Whether you are wiring a server rack, connecting a high-definition IP camera, or setting up a desktop workstation, this cable provides the performance you need.
- Server rooms and data centres
- Office desk connections and conference rooms
- Surveillance systems and access-control panels
- VoIP phones and wireless access points
Key Features
Perfect for cross connects, workstations or racks with higher-density and/or limited space
Small diameter unshielded twisted pair patch cords (0.195 inch/4.95 mm) that offers flexibility, durability and reliability
Unique laminate barrier wrap provides excellent alien cross-talk performance
Designed for Cat 6A applications such as 2.5/5/10 Gbps
Specifications
| Portfolio |
CommScope® |
| Product Type |
Twisted pair patch cord |
| Product Series |
CO | CON | UTG |
| ANSI/TIA Category |
6A |
| Cable Type |
U/UTP (unshielded) |
| Conductor Type |
Solid |
| Interface, Connector A |
RJ45 plug |
| Interface Feature, connector A |
Standard |
| Interface, Connector B |
RJ45 plug |
| Interface Feature, connector B |
Standard |
| Jacket Color |
Black | Blue | Dark gray | Light blue | Orange | Red | Spring green | White | Yellow | Purple/Violet |
| Pairs, quantity |
4 |
| Transmission Standards |
ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA |
| Wiring |
T568B |
| Cable Assembly Length Range |
1–40 m | 1–131 ft | 15–999 cm | 6–999 in |
| Diameter Over Jacket |
4.95 mm | 0.195 in |
| Compatible Conductor Gauge, solid |
28 AWG |
| Contact Resistance, maximum |
20 mOhm |
| Current Rating at Temperature |
1.5 A @ 20 °C | 1.5 A @ 68 °F |
| DC Resistance, maximum |
0.3 ohm |
| Dielectric Withstand Voltage, RMS, contact-to-contact |
1,000 Vac @ 60 Hz |
| Insulation Resistance, minimum |
500 MOhm |
| Remote Powering |
Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002 |
| PoE Durability |
Supports IEEE 802.3bt Type 4 (90 W) applications greater than 3000 plug to jack mating cycles |
| Safety Voltage Rating |
300 V |
| Conductor Material |
Bare copper |
| Contact Plating Material |
Gold over nickel |
| Plug Contact Material |
Phosphor Bronze |
| Plug Housing Material |
Polycarbonate clear |
| Jacket Material |
Low Smoke Zero Halogen (LSZH) |
| Plug Retention Force, minimum |
50 N | 11.24 lbf |
| Plug to Jack Mating Cycles |
Complies to IEC 60603-7 series |
| Operating Temperature |
-10 °C to +75 °C (+14 °F to +167 °F) |
| Storage Temperature |
-40 °C to +70 °C (-40 °F to +158 °F) |
| Environmental Space |
Non-plenum , Low Smoke Zero Halogen (LSZH) |
| Flammability Rating |
UL 94 V-0 |
| Safety Standard |
ETL , cETL , Anatel |
| Packaging Quantity |
1 |
