Tired of juggling separate power and fiber lines that clutter your rack and cause connection headaches? The CommScope FiberREACH PFC-302L12 OM3 2-Fiber 12AWG Powered Fiber Cable combines high-speed data and reliable power in one sleek cable, so you can keep your network tidy and running smoothly. This hybrid cable solves the common problem of space-limited installations while delivering the performance you need for modern data centers and enterprise builds.

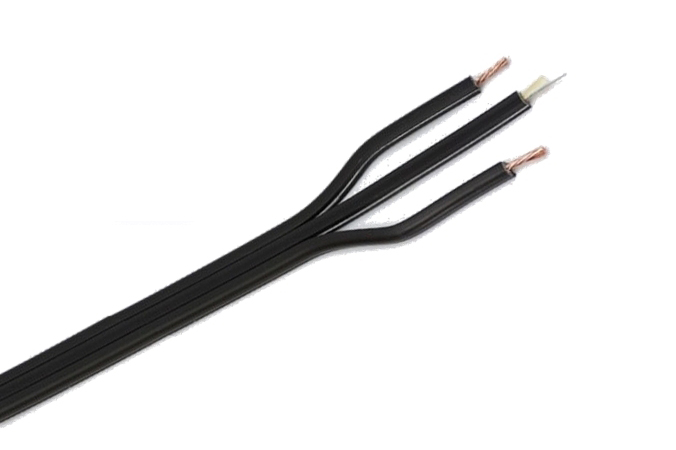

CommScope FiberREACH PFC-302L12 OM3 2-Fiber 12AWG Powered Fiber Cable
You often face a mess of separate power cords and fiber runs that make troubleshooting slow and increase the risk of accidental disconnects. When cables are tangled, downtime rises and maintenance costs climb. This cable eliminates the mess by delivering both 300 V power and OM3 multimode fiber in a single, rugged jacket. The result is a cleaner installation, faster deployment, and fewer points of failure, all while meeting strict fire and safety standards.
Features and Benefits
- Easy peel, stranded conductors for maximum cable flexibility and rapid access
- Polarization indentation along one side of the cable for polarity identification
- No special tools or mounting hardware required - usage of a standard “FTTH” pressure clamp for lashed aerial installation

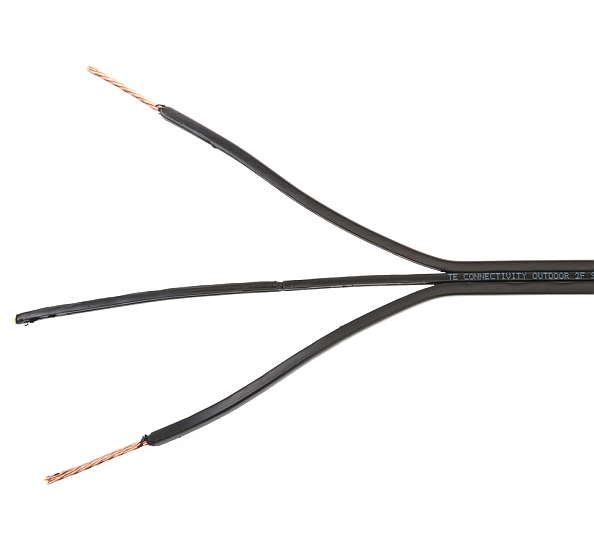

- Easy split of cable into three separate sections for separate routing in closures, as needed for installation
- Riser/LSZH jacket for indoor/outdoor applications
- Cable should not be installed in conduit, direct burial applications or below grade where cable is immersed or is continually in contact with water or moisture
Specifications
| Product Type |
Hybrid cable, fiber and power |
| Cable Type |
Stranded indoor/outdoor |
| Fiber Short Description |
PFC-L12 |
| Jacket Color |
Black |
| Total Fiber Count |
2 |
| Height Over Jacket |
4.318 mm | 0.17 in |
| Width Over Jacket |
11.43 mm | 0.45 in |
| Conductor Gauge |
12 AWG |
| Voltage Rating |
300 V |
| Minimum Bend Radius, Loaded |
88.9 mm | 3.5 in |
| Minimum Bend Radius, Unloaded |
45.72 mm | 1.8 in |
| Tensile Load, Long Term, Maximum |
133.447 N | 30 lbf |
| Tensile Load, Short Term, Maximum |
440.374 N | 99 lbf |
| Vertical Rise, Maximum |
122.011 m | 400.3 ft |
| Fiber Type |
OM3, bend insensitive |
| Installation Temperature |
-10 °C to +60 °C (+14 °F to +140 °F) |
| Operating Temperature |
-40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature |
-40 °C to +70 °C (-40 °F to +158 °F) |
| Cable Qualification Standards |
Telcordia GR-20-CORE Issue 4 |
| EN50575 CPR Cable EuroClass Fire Performance |
Dca |
| EN50575 CPR Cable EuroClass Smoke Rating |
s1a |
| EN50575 CPR Cable EuroClass Droplets Rating |
d1 |
| EN50575 CPR Cable EuroClass Acidity Rating |
a1 |
| Environmental Space |
Low Smoke Zero Halogen (LSZH) | Riser |
| Flame Test Method |
IEC 60332-1-2 | IEC 60754-2 | IEC 61034-2 | NFPA 130 | UL 1666 |
| Jacket UV Resistance |
UV stabilized |
| Cable Weight |
109.975 kg/km | 73.9 lb/kft |
| CENELEC |
EN 50575 compliant, Declaration of Performance (DoP) available |
| CHINA-ROHS |
Below maximum concentration value |
