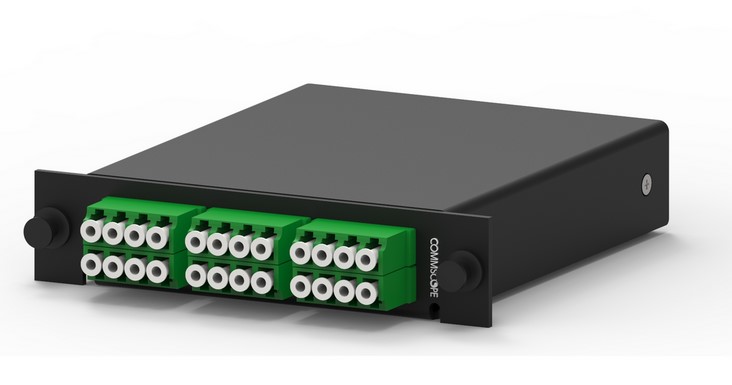

CommScope LGX LX1SSP3208001, 2x8 symmetrical Split Ratio, Splitter module

When a fiber network grows, the signal must be shared with many endpoints without losing strength. If the splitters are weak or uneven, customers see slow internet, dropped calls, or blurry video. This hurts both service providers and end users who expect reliable, high-speed connections. The CommScope LGX LX1SSP3208001, 2x8 symmetrical Split Ratio, Splitter module solves that problem by delivering consistent, low-loss splitting for up to eight lines from each of two inputs. It keeps the optical power balanced, meets strict industry standards, and works in harsh indoor or outdoor cabinets, so you can expand your network with confidence.

CommScope LGX LX1SSP3208001, 2x8 symmetrical Split Ratio, Splitter module with CommScope

If you need to distribute fiber to many homes, offices, or small cells, this splitter is the answer. It is a compact PLC device that takes two SC/APC inputs and creates eight equal outputs from each, giving you a total of sixteen balanced feeds. Service providers often struggle with uneven power distribution that leads to customer complaints. With this CommScope module, the split ratio stays symmetrical, the insertion loss stays low, and the return loss stays high, ensuring every user receives the same quality of service.

Usages

The splitter fits into FTTH (Fiber-to-the-Home) cabinets where many households share a single fiber line. It is also ideal for enterprise campus builds that need to feed multiple buildings from a central hub. Telecom operators can use it in metro networks to branch out to small cells or remote radio heads. Because it works from -40 C to +70 C, it can be placed in outdoor shelters or indoor racks without extra heating or cooling.

Benefits

• Balanced power to every output reduces customer complaints.
• Low insertion loss saves energy and improves overall network efficiency.
• Compact size frees up rack space for other equipment.
• Wide temperature range lets you install it in harsh environments.
• Compliance with ROHS and BABA standards eases regulatory approval.

Key Features

• 2 8 symmetrical split ratio.
• Planar Lightwave Circuit (PLC) technology.
• SC/APC connectors on both input and output sides.
• Minimum directivity of 55 dB.
• Maximum insertion loss of 11.4 dB.
• Return loss minimum of 50 dB.
• Polarization Dependent Loss 0.3 dB.
• Uniformity within 1.85 dB.
• Humidity tolerance 5 %-95 % non-condensing.
• Wavelength range 1260-1650 nm.
• Compliant with ROHS, UK-ROHS, and China-ROHS.

Specifications
