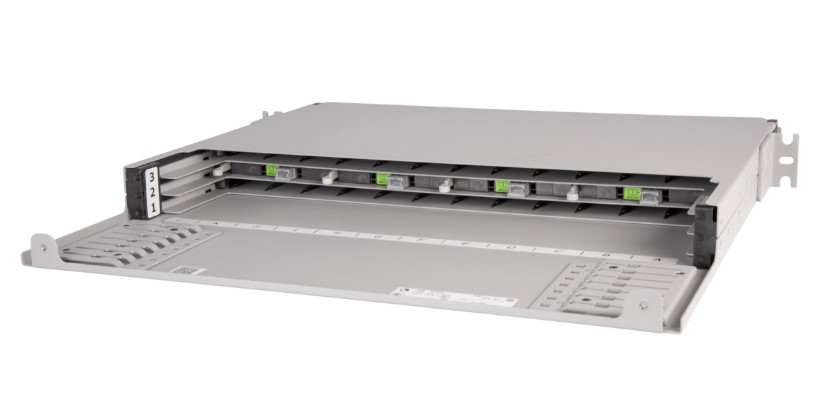

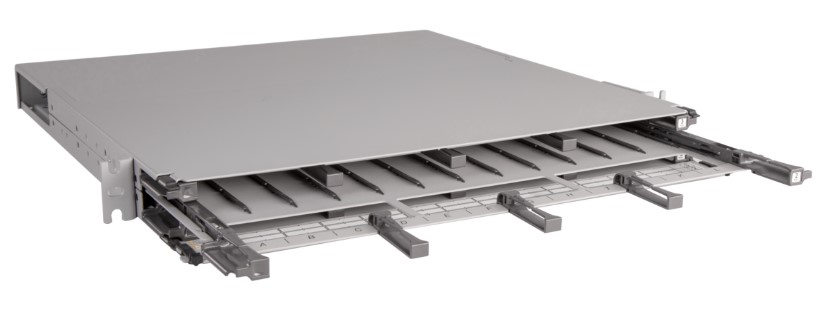

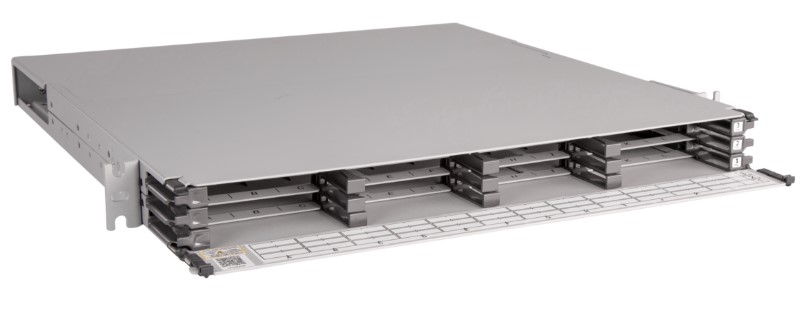

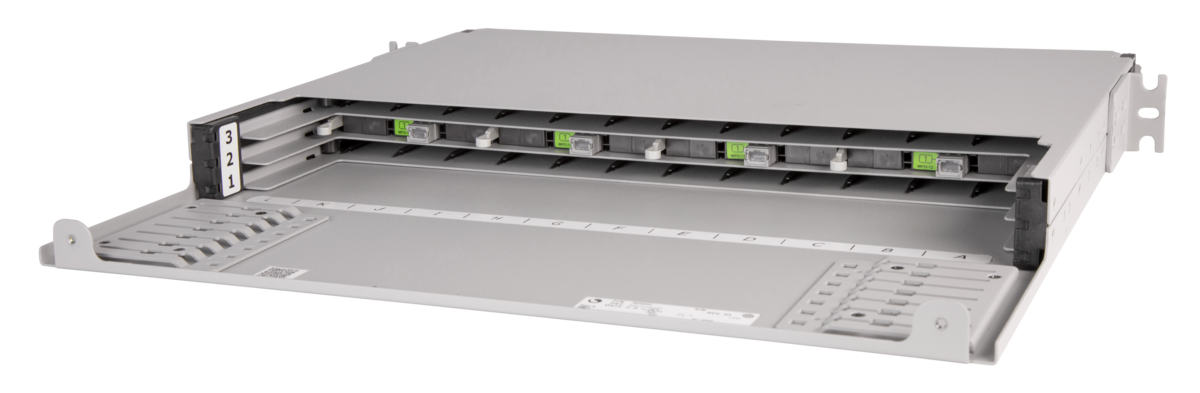

CommScope Propel 760252002 PPL-1U 1RU Sliding Fiber Patch Panel, 288F

Tired of hunting for a single fiber cable among a tangled mess? The CommScope Propel 760252002 PPL-1U 1RU Sliding Fiber Patch Panel, 288F gives you a clean, organized rack that lets you see every connection at a glance. It is built for data centers, carrier hotels, and any telecom closet where space is tight and uptime matters. If you have ever wasted minutes (or hours) untangling fibers, this panel solves that problem and keeps your network running fast.

CommScope Propel 760252002 PPL-1U 1RU Sliding Fiber Patch Panel, 288F

When fiber cables are crowded, a small mistake can cause a big outage. That risk hurts your business because downtime means lost revenue and frustrated users. The sliding design of this panel removes the hassle - you can pull the shelf out, work on a single module, and push it back without moving other cables. The 1-RU depth saves rack space while still holding 288 ports, so you get high density without sacrificing access.

Benefits

• All 288 ports are visible, cutting troubleshooting time in half.
• Sliding shelf lets you add or replace modules without disturbing the rest of the rack.
• Only 1-RU tall, freeing up valuable rack space for power or cooling units.
• Sturdy aluminum and steel construction protects fragile fibers from damage.
• Meets c-UL-us safety standards, so you stay compliant with regulations.

Usages

The panel fits standard 19-inch racks, making it ideal for enterprise data centers, carrier hotels, and small office telecom rooms. Use it to terminate incoming service-provider fibers, to organize inter-rack links, or to build a central patch hub for a campus fiber run. It also works well in test labs where engineers need to re-configure connections quickly without removing the whole unit.

Key Features

• 288 fiber ports in a single 1RU panel.
• Sliding shelf design for easy access.
• Gray finish blends with most rack environments.
• Front interface is unloaded, ready for custom adapters.
• EIA-19 inch rack mount.
• Height 44 mm, width 483 mm, depth 470 mm.
• Aluminum and steel body for strength and durability.
• c-UL-us safety certification.
• Compliant with ROHS, China-ROHS, and UK-ROHS.
• Weight 5.375 kg, easy to handle during installation.

Specifications
