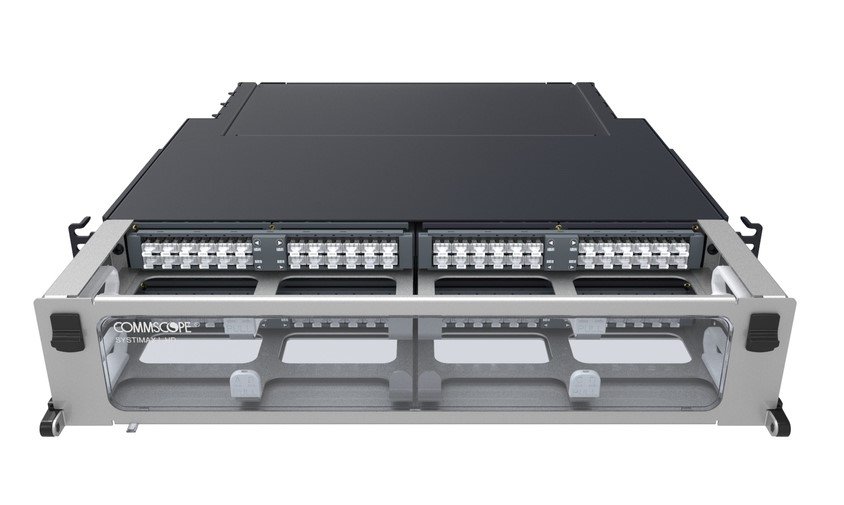

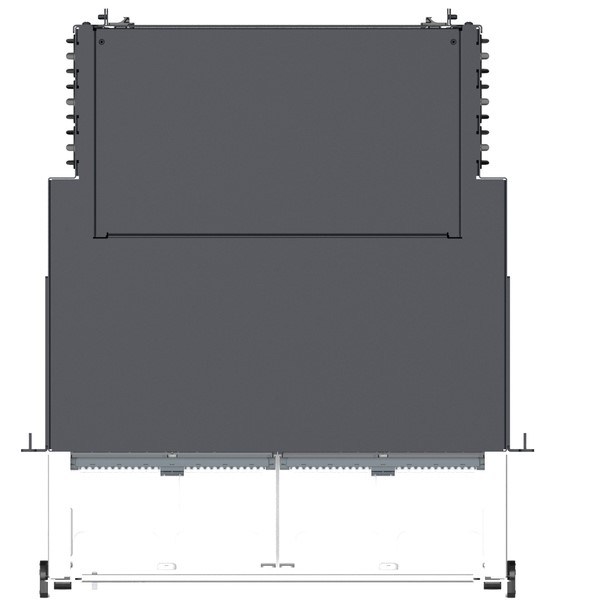

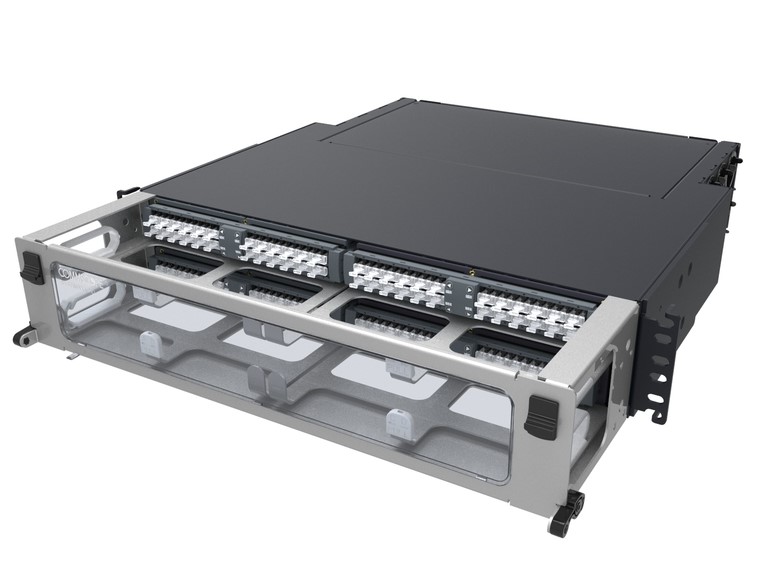

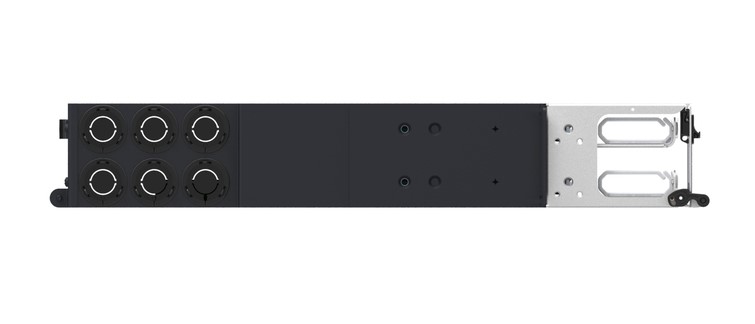

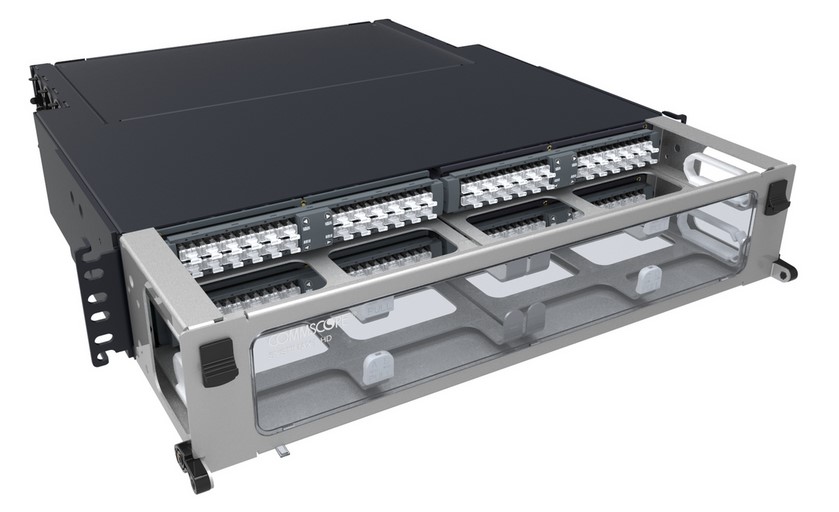

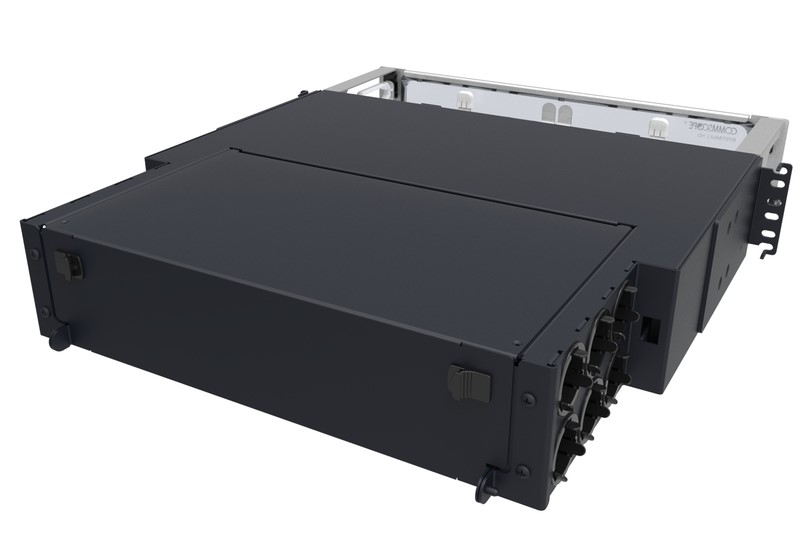

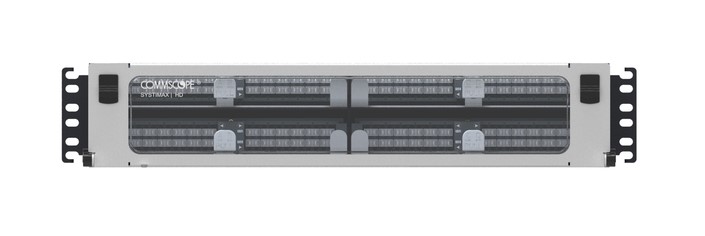

CommScope SYSTIMAX HD iPATCH 2U 192F-LC Distribution Module with Sliding Panel

Imagine a data center where every fiber connection snaps into place without fuss, and you never waste time hunting for a loose patch. The SYSTIMAX HD iPATCH 2U 192F-LC Distribution Module, LazrSPEED with Sliding Panel is that solution. It is a high-density fiber patch panel designed for fast, reliable connections in any rack. If you struggle with cluttered cabling, limited space, or slow changes during maintenance, this module gives you the order and speed you need.

CommScope SYSTIMAX HD iPATCH 2U 192F-LC Distribution Module, LazrSPEED with Sliding Panel

Network managers often face a bottleneck when they have to add or move fiber links in a crowded rack. The problem creates downtime, higher labor costs, and the risk of errors. This module solves the issue by offering a sliding panel that pulls out for easy access, while keeping 96 LC/UPC ports neatly organized in a 2-U footprint. The result is a clean rack, faster service, and less chance of mis-plugging fibers.

Benefits

• Quick access - the sliding panel lets you reach any port without removing the whole unit.
• Space efficiency - 96 ports fit into just 2 rack units, freeing space for other equipment.
• Reduced errors - clear labeling and iPatch-enabled intelligence guide you to the right connection.
• Durable steel construction - protects connections from vibration and accidental impact.
• Future-proof - LC/UPC interfaces support high-speed fiber standards for growing bandwidth needs.

Usages

This distribution module works well in data centers, enterprise server rooms, and telecom closets where high-density fiber is required. It is ideal for connecting switches, routers, and storage arrays in a compact rack. Service technicians use it for rapid patch changes during upgrades or troubleshooting. It also fits well in campus backbone rooms where many fiber runs converge into a single, organized panel.

Key Features

• 2-U rack height, 19-in width, 21.25-in depth.
• 96 LC/UPC ports for high-density fiber termination.
• Sliding shelf for easy front-panel access.
• iPatch-enabled intelligence for smart cable management.
• Black steel enclosure for strength and security.
• Compatible with LazrSPEED technology for fast optical performance.
• Designed for global markets - available in Asia, EMEA, Americas.
• ISO 9001:2015 quality certified.
• ROHS and UK-ROHS compliant.
• Simple tool-free installation of fiber adapters.

Specifications
