CommScope XPND XP-SPTJJ210400 1x4 symmetrical Split Ratio Splitter Module

Tired of weak signal splits that slow down your network? The CommScope XPND XP-SPTJJ210400 1x4 symmetrical Split Ratio Splitter Module gives you a clean, reliable split so every line gets the same strength. It is a PLC splitter made for XPND panels and uses SC/APC connectors. If you need to divide one fiber link into four equal paths without losing performance, this module solves that problem fast.

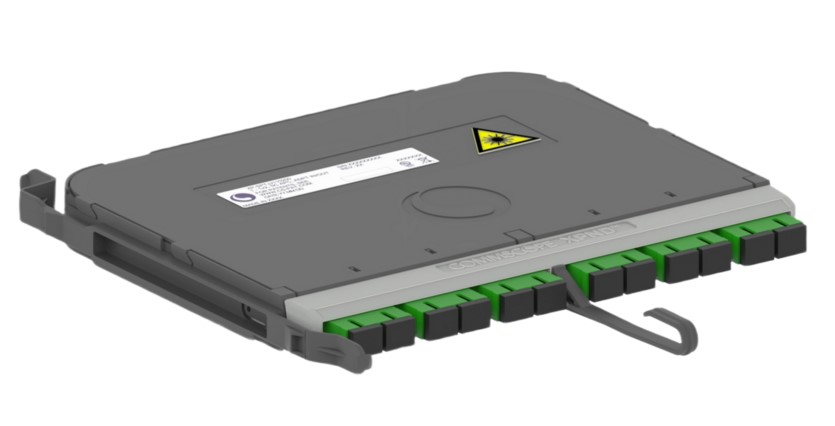

CommScope XPND XP-SPTJJ210400 1x4 symmetrical Split Ratio Splitter Module

Network installers often face uneven signal distribution that creates dead spots and customer complaints. Unequal splits can cause lower bandwidth and higher error rates, especially in FTTH deployments. This splitter provides a true symmetrical 1-to-4 split with a minimum directivity of 55 dB, keeping each output identical. The result is a stable, high-quality link that meets the demanding specs of modern broadband services.

Benefits

• Equal signal strength on all four outputs, so every customer gets the same speed.
• Low insertion loss (max 7.7 dB) preserves bandwidth and reduces the need for extra amplifiers.
• Wide temperature range lets you install it in outdoor cabinets or indoor racks.
• UL 94 V-0 flammability rating adds safety for critical infrastructure.
• Simple front-panel access speeds up installation and maintenance.

Usages

This module fits into XPND panels for fiber-to-the-home (FTTH) networks, enterprise backbones, and metro-area deployments. Use it in street cabinets to split a single feeder fiber to four homes, or in a data center to distribute a high-speed link to four servers. It also works well in test labs where a consistent split is needed for multiple measurements.

Key Features

• Symmetrical 14 split ratio
• Planar Lightwave Circuit (PLC) technology
• SC/APC input and output connectors
• Two circuits per module
• Humidity 5 %-95 % non-condensing
• Wavelength range 1260-1650 nm
• Minimum return loss 50 dB
• Maximum polarization dependent loss 0.2 dB
• Dimensions 19 mm 202.5 mm 207 mm
• Build America Buy America compliant
• ROHS and UL certifications
