Imagine a factory floor where every sensor talks to the cloud without delay. The Compulab IOT-GATE-RPI5 is a rugged edge gateway built for industrial IoT. It gathers data, runs AI at the edge, and keeps your system running even when the network drops. If you need reliable, fast processing in harsh environments, this device solves that problem.

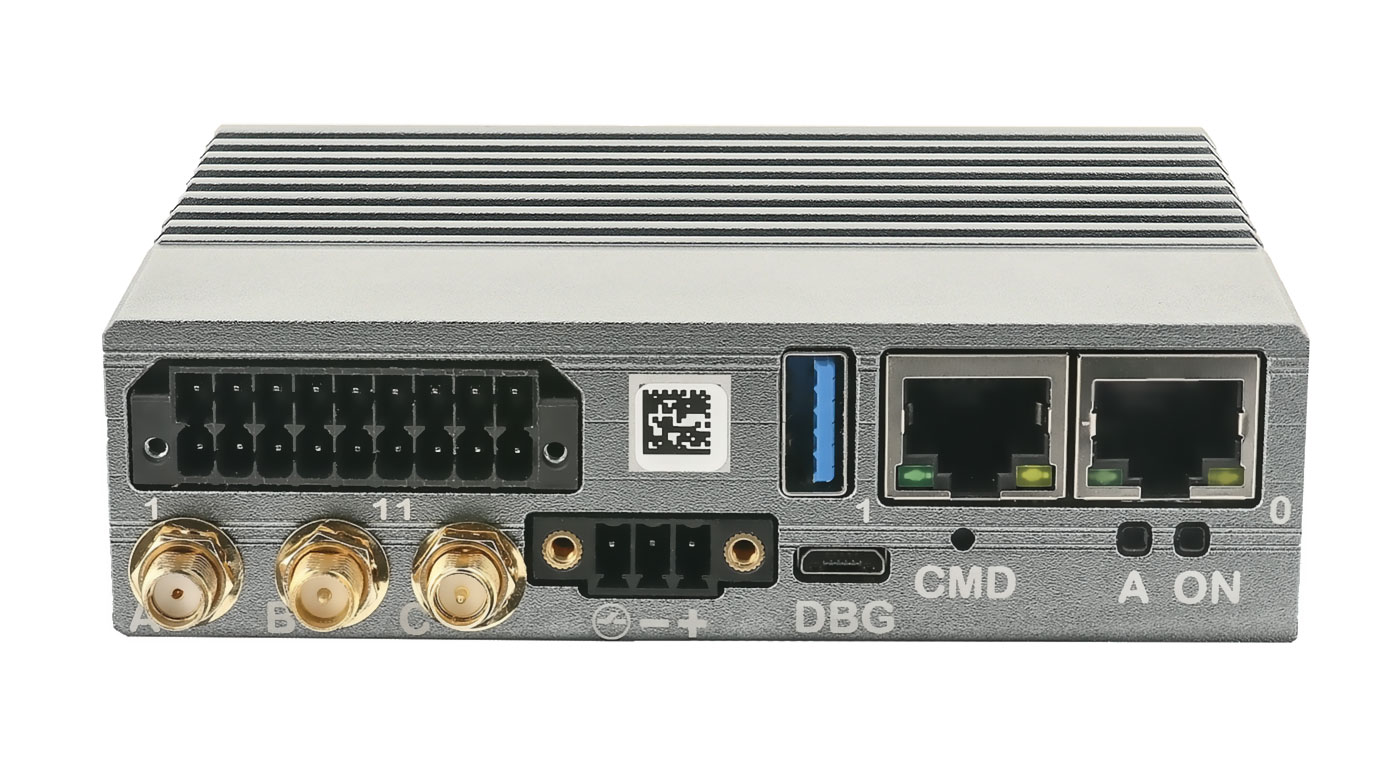

Compulab IOT-GATE-RPI5, 8GB/64GB Industrial Raspberry Pi IoT Edge Gateway
Many businesses struggle with slow data transfer and frequent downtime in remote or industrial sites. When data cannot be processed quickly, decisions are delayed and equipment may fail. This gateway removes the bottleneck by processing data locally, supporting AI models, and offering multiple network options. It gives you a stable, secure connection to the cloud while protecting your devices from temperature swings, vibration, and power spikes. In short, it turns a complex IoT network into a smooth, dependable system you can trust.
Key Features
- Quad-core Cortex-A76 CPU at 2.4 GHz for high performance.
- 8 GB LPDDR4 RAM and 64 GB eMMC storage on board.
- Optional Hailo-8L AI accelerator via M.2 slot.
- 4G/LTE CAT-4 modem with worldwide coverage.
- 802.11ac Wi-Fi and Bluetooth 5.0 with dual-band antenna.
- Two Ethernet ports (1 Gbps and 100 Mbps) for wired networks.
- RS485, CAN-FD, and 4 digital I/O ports for industrial sensors.
- Bluetooth mesh, Thread, and Zigbee support for wireless mesh networks.
- GPS built into the LTE module for precise location tracking.
- Passive fanless cooling and 12-24 V DC power input with reverse-polarity protection.
Specifications
| CPU |
Broadcom BCM2712 quad-core Cortex-A76, 2.4 GHz |
| GPU |
Broadcom VideoCore VII
OpenGL ES 3.1, Vulkan 1.2 |
| RAM |
8GB LPDDR4 |
| Storage |
64GB eMMC flash, soldered on-board |
| AI Accelerator |
Hailo-8L, optional M.2 module |
| Cellular Modem |
4G/LTE CAT-4 cellular module, Telit LE910
Worldwide LTE, UMTS/HSPA |
| SIM Card |
SIM card socket |
| WiFi & Bluetooth |
802.11ac WiFi interface
Bluetooth 5.0 BLE
2.4GHz / 5GHz rubber duck antenna |
| LAN |
1000Mbps Ethernet port, RJ45 connector
100Mbps Ethernet port, RJ45 connector |
| Wireless Mesh |
Bluetooth mesh, Thread, Zigbee
Nordic Semiconductor nRF52840 |
| GNSS |
GPS (implemented with Telit LE910 module) |
| Industrial I/O |
2× RS485 (half-duplex) / CAN-FD ports, isolated, terminal-block connector
4× Digital inputs/outputs, isolated, 24V compliant with EN 61131-2, terminal-block connector |
| USB |
1× USB 3.0 Type-A
1× USB 2.0 Type-A |
| Display Output |
2× DVI-D, up to 4Kp60 |
| RTC |
Real-time clock with on-board coin-cell battery |
| Watchdog |
Hardware watchdog |
| Debug |
1× Serial console via UART-to-USB bridge (Micro-USB)
USB programming port (Micro-USB) |
| Security |
TPM 2.0 (Infineon SLB9673) |
| Indicators |
1× Programmable dual-color LED
1× Power LED |
| PoE |
Support for PoE (powered device) |
| Power Supply |
12V–24V DC (-20%/+20%)
Reverse voltage protection |
| Power Consumption |
3W–9W (depending on system load and configuration) |
| Dimensions |
105 × 80 × 30 mm |
| Housing Material |
Aluminum |
| Cooling |
Passive cooling, fanless design |
| Weight |
550 g |
| Regulatory Compliance |
FCC, CE RED |
| EMC |
EN 55032/5, EN 61000-6-2, EN 61000-6-3 |
| Safety |
EN/UL/IEC 62368-1 |
| MTTF |
>200,000 hours |
| Warranty |
5 years |
| Operating Temperature |
Commercial: 0°C to 60°C
Industrial: -40°C to 80°C
|
| Storage Temperature |
-40°C to 85°C |
| Relative Humidity |
10% to 90% (non-condensing) |
