Tired of juggling separate controllers, computers and PLCs for a tiny automation job? The Contec CPI-PS10CM4 Small Embedded AIO PLC, Raspberry Pi Controller CM4 brings the power of a full-size computer into a compact PLC box. It lets you run CODESYS programs while handling I/O, networking and display in one unit. If you have limited space, tight budgets, or need fast development, this device solves those problems in a single, reliable package.

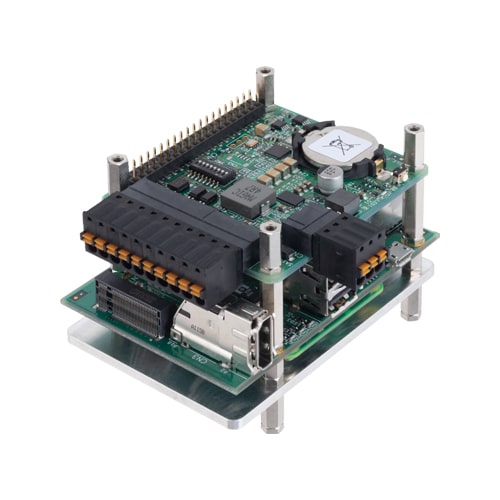

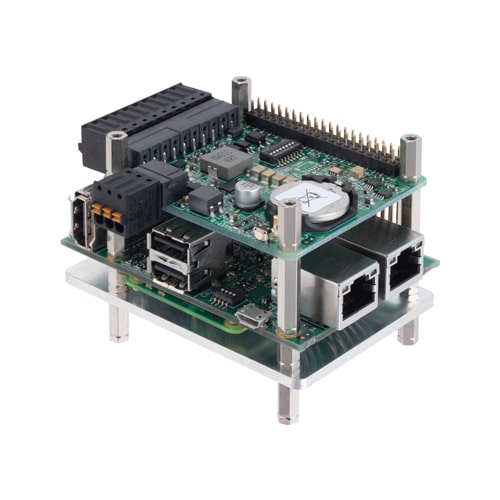

Contec CPI-PS10CM4 Small Embedded AIO PLC, Raspberry Pi Controller CM4
Many small-scale projects suffer from scattered hardware that is hard to mount and hard to program. The result is longer wiring, more points of failure and higher cost. This matters because downtime or wiring errors can delay production and increase expenses. The Contec controller solves the issue by integrating a quad-core ARM CPU, built-in digital I/O, Ethernet, USB and HDMI into a 82 56 62 mm box. You get a ready-to-run PLC with CODESYS support, so you can program, test and deploy without extra adapters.
Key Features
- Broadcom BCM2711 quad-core Cortex-A72 CPU @ 1.5 GHz
- 2 GB LPDDR4-3200 RAM and 16 GB eMMC flash storage
- 1 HDMI 1.4 output up to 1920 1080 resolution
- PCIe Gen2 M-Key slot for NVMe SSD expansion
- 40-pin GPIO connector for custom I/O modules
- 2 opto-coupled digital inputs, 1 solid-state relay output
- Ethernet port with 1000BASE-T support
- 2 USB 2.0 Type-A and 1 USB 2.0 Micro-B
- Input voltage range 8-28 VDC, external 5 V and 3.3 V supplies
- CODESYS Control Standard S runtime for PLC programming
Specifications
| General |
|
| Model |
CPI-PS10CM4-2E021 |
| Product Type |
Raspberry Pi Controller CM4 with CODESYS |
| CPU |
Broadcom BCM2711 Quad-Core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5 GHz |
| GPU |
VideoCore VI® 500 MHz |
| Memory |
2 GB LPDDR4-3200 SDRAM |
| Storage |
16 GB eMMC Flash |
| Display & Expansion |
|
| Display Output |
1 × HDMI 1.4 (Resolution up to 1920 × 1080) |
| Expansion |
PCIe Gen2 Type 2242 M-Key NVMe SSD Slot |
| GPIO |
40-pin GPIO Expansion Connector |
| Communication |
|
| Ethernet |
1 × 1000BASE-T/100BASE-TX/10BASE-T, 1 × 100BASE-TX/10BASE-T |
| USB |
2 × USB 2.0 Type-A, 1 × USB 2.0 Micro-B |
| Built-in I/O |
|
| Digital Inputs |
2 Channels, Non-isolated Opto-coupler Input |
| Digital Outputs |
1 Channel, Solid State Relay Output |
| Output Rating |
28 VAC/DC Max., 200 mA Max. |
| Power |
|
| Input Voltage |
8 to 28 VDC |
| Power Consumption |
11 W Max. (USB Device 1.0 A), 3 W (USB Device 1.0 A with SSD Installed) |
| External Power Output |
5 VDC ±5%, 500 mA Max.; 3.3 VDC ±5%, 500 mA Max. |
| Software |
|
| PLC Runtime |
CODESYS Control Standard S |
| Environmental |
|
| Operating Temperature |
-20°C to +50°C (No Airflow), -20°C to +60°C (0.7 m/s Airflow) |
| Storage Temperature |
-20°C to +60°C |
| Operating Humidity |
10 to 90% RH (Non-condensing) |
| Mechanical |
|
| Dimensions (W × D × H) |
82.9 × 56.5 × 61.7 mm |
| Weight |
Approx. 200 g |
