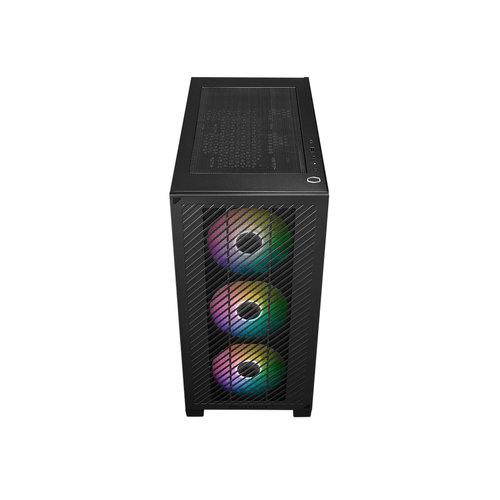

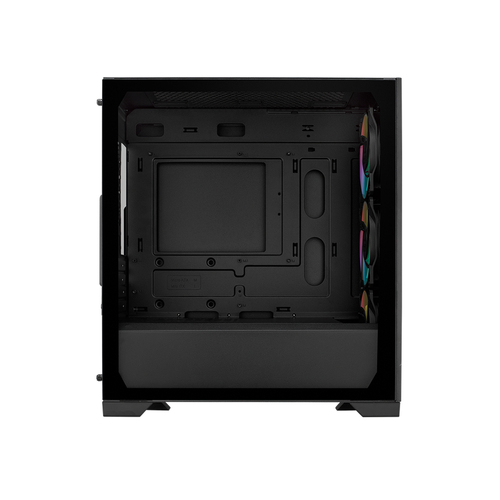

Build a compact and stylish PC with the Cooler Master Elite 301 Mini Tower Case, featuring durable plastic and steel construction with a tempered glass side panel. Designed for efficient airflow and a spacious interior, it’s ideal for gaming, professional setups, and custom small-form-factor builds.
EFFORTLESS EFFICIENCY
High in value and attention to detail, Cooler Master’s Elite 301 offers users a cost effective, space conscious
solution to gaming and computing needs. Elite 301 features a large intake grill and 3x 120mm ARGB fans to ensure a smooth, and efficient running system. The fully black coating and included PSU cover allows for clean builds that are visually appealing as well as functional.
Tool-less Intake Panel
Constructed with a substantially large, unrestricted intake grill to ensure that the system runs cool and efficiently. The front panel could be easily removed by magnets, making it easier for daily maintenance.
Unrestricted Air Flow
Pre-installed with 3x 120mm ARGB fans, providing considerable airflow and adds a layer of style to the system.
Large Support, Minimized Footprint–
Despite its compact size, Elite 301 supports up to 365mm graphics cards, 163.5mm CPU Coolers, providing solid potential for future upgrades.
Versatile Cooling Options
Supports up to six fans and 280mm radiator to ensure that performance is not compromised.
Breathable Power Supply Shroud
The PSU cover is ventilated on top of the power supply location, allowing actively cooled units to be installed in multiple orientations, while maintaining support for passively cooled power supplies.
USB Type-C Support
USB Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.
FEATURE HIGHLIGHTS
Tool-less Intake Panel
Constructed with a substantially large, unrestricted intake grill to ensure that the system runs cool and efficiently. The front panel could be easily removed by magnets, making it easier for daily maintenance.
Versatile Cooling Options
Supports up to six fans and 280mm radiator to ensure that performance is not compromised.
Unrestricted Air Flow
Pre-installed with 3x 120mm ARGB fans, providing considerable airflow and adds a layer of style to the system.
Breathable Power Supply Shroud
The PSU cover is ventilated on top of the power supply location, allowing actively cooled units to be installed in multiple orientations, while maintaining support for passively cooled power supplies.
Large Support, Minimized Footprint–
Despite its compact size, Elite 301 supports up to 365mm graphics cards, 163.5mm CPU Coolers, providing solid potential for future upgrades.
USB Type-C Support
USB Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.
Specifications
| Design |
| Maximum PSU length |
16 cm |
| Maximum graphics card length |
36.5 cm |
| Maximum CPU cooler height |
16.4 cm |
| Cable management |
Yes |
| Anti-dust filter |
Yes |
| Illumination location |
Case fans |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Side window |
Yes |
| Number of expansion slots |
4 |
| Number of 2.5" bays |
1 |
| Number of 3.5" bays |
1 |
| Number of 5.25" bays |
0 |
| Supported motherboard form factors |
ITX, micro ATX |
| Product colour |
Black |
| Material |
Plastic, Steel, Tempered glass |
| Type |
PC |
| Form factor |
Mini Tower |
| Power supply |
| Supported power supply form factors |
ATX |
| Power supply shroud |
Yes |
| Power supply included |
No |
| Ports & interfaces |
| USB Type-C ports quantity |
1 |
| Audio output |
Yes |
| Audio input |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 2.0 ports quantity |
0 |
| Cooling |
| Top radiator sizes supported |
120,140,240,280 mm |
| Rear radiator sizes supported |
120 mm |
| Front radiator sizes supported |
120,140 mm |
| Top fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
2 |
| Rear fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
1 |
| Front fans diameters supported |
120 mm |
| Number of front fans supported (max) |
3 |
| Front fans installed |
3x 120 mm |
| Storage |
| Supported HDD sizes |
2.5,3.5" |
| Weight & dimensions |
| Weight |
5.42 kg |
| Height |
430 mm |
| Depth |
390 mm |
| Width |
203.5 mm |
| Packaging data |
| Package weight |
6.33 kg |
| Package height |
446 mm |
| Package depth |
477 mm |
| Package width |
266 mm |
| Other features |
| Volume |
34.13 L |
