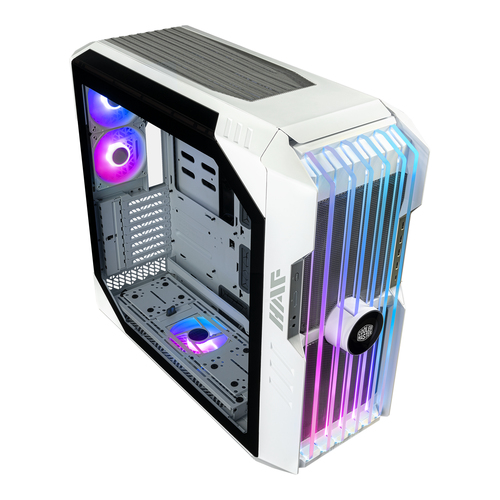

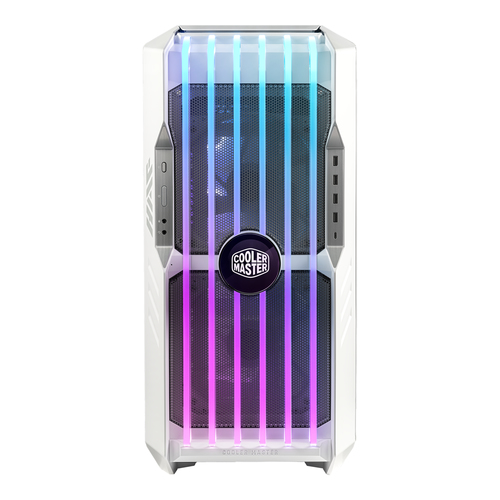

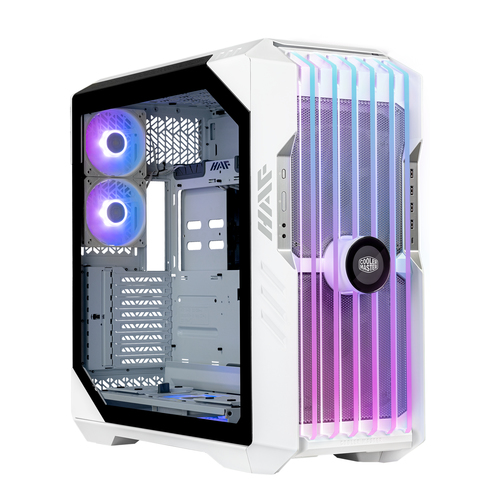

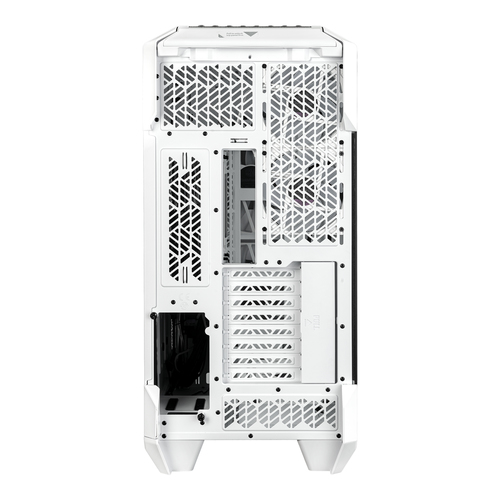

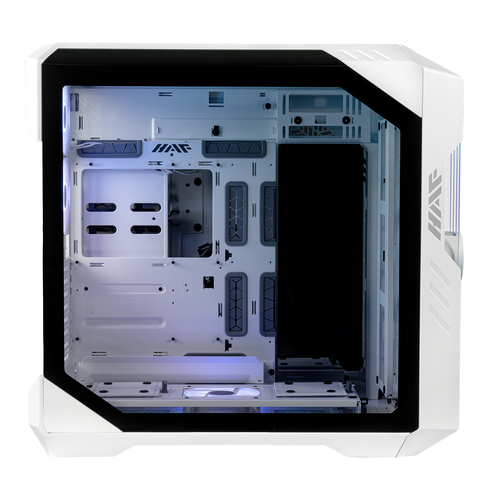

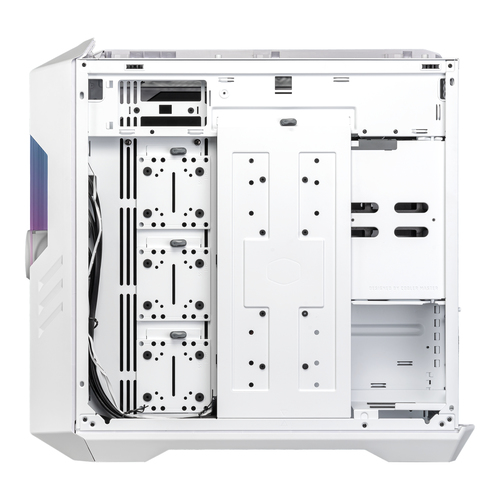

The Cooler Master HAF 700 EVO is a premium Full Tower Case engineered for enthusiasts and gamers who demand extreme airflow and superior build quality. Constructed with steel, mesh, tempered glass, and high-quality plastic, it supports advanced cooling solutions, large graphics cards, and extensive storage options, making it ideal for high-performance custom PC builds.
HAF 700 EVO unveils a new era of thermal efficiency through unique features designed to transcend the standards of contemporary cooling solutions.
Rediscover PC DIY: a form of entertainment, a polished skillset, an exquisite art form, and a way of living.
Hardware and Connectivity
No Limits.
The HAF 700 EVO is capable of housing up to SSI-EEB motherboards (E-ATX), as well as any sized graphics cards in BOTH horizontal and vertical orientations.
Cooling Options
Mammoth Radiator Support
Unparalleled Options for Custom Cooling
480mm: Side Panel*1
360mm: Front Panel*1 / Bottom Panel *1 / Top Panel*2
240mm: Rear Panel *1
Rotatable Radiator Bracket
Two rotatable radiator/fan brackets included out of the box for showcasing cooling components at unique angles.
Removable Top Panel
The unique removable top panel design allows you to effortlessly install, reach and maintain cooling components such as fans and radiators even in builds with complex custom cooling systems.
Exclusive 200mm SickleFlow PWM Performance Edition
HAF 700 EVO comes with dual exclusive 200mm SickleFlow PWM "Performance Edition" fans tailored to strike a balance between performance potential and noise levels.
Integrated 7x PWM & 5x ARGB Hub
Featuring a fully integrated PWM/ARGB hub for effortless cable management and simplified control over ARGB effects and PWM fan speeds.
Digital Features
ARGB Gen2 Ready, Controller Included
ARGB Gen2 technology allows users to explore full range customization down to the lighting effecting of each individual LED, while remaining compatible with third party devices.
IRIS: Customizable LCD Assistant
Monitor system and game stats in real time or showcase your favorite video and images.
Better yet, customize and create a setup that is truly unique by connecting to MasterPlus+.
Design Highlights
Edge Lit Intake Blades
Sleek, premium tempered glass or performant mesh? Why choose?
Thick, robust ARGB tempered glass Intake Blades create unique, futuristic lighting effects while maintaining the thermal efficiency and performance of mesh that you love.
Multi Chamber Layout
HAF 700 EVO’s structure segregates non heat sensitive components so heat dissipation can be targeted towards heat sensitive components at an overall higher efficiency.
Vertical GPU Holder With PCIe 4.0 Riser Cable
An included vertical graphics card holder with PCIe 4.0 riser cable grant users the flexibility of choice in aesthetic display and airflow performance.
Tool-less Installation
Tool-less Vertical GPU Mounting
No more fiddling with screws! HAF 700 EVO features a unique clamping mechanism that allows users to install, remove, and upgrade graphics cards without the need to use any tools.
Tool-less PSU Mount
To install PSUs, simply slide the power supply in place and secure it with the two included thumbscrews on the rear end of the case. No tools, no hassle.
Tool-less HDD Cage
The rear chambers includes a tool-less, swiveling drive cage that allows users to quickly access drives with ease.
Tool-less MultiFunction Brackets (HDDs, SSDs, Pumps, Reservoirs)
Multifunction, repositionable brackets can be used to mount SSDs, HDDs, or pumps/reservoirs for liquid cooling.
Infinity Mirror
…Because what’s the point of owning a flagship case without having a bit of fun?
The Infinity Mirror allows you to turn extra clearance in the build into your personal Hall of Fame.
Specifications
| Design |
| Maximum PSU length |
20 cm |
| Maximum graphics card length |
49 cm |
| Maximum CPU cooler height |
16.6 cm |
| LED indicators |
Yes |
| On/off button |
Yes |
| Cable management |
Yes |
| Anti-dust filter |
Yes |
| Tempered glass panel(s) |
Yes |
| Illumination location |
Case fans |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Suitable for |
Gaming |
| Side window |
Yes |
| Number of storage drives supported |
12 |
| Number of internal 3.5" bays |
12 |
| Number of 2.5" bays |
12 |
| Number of 3.5" bays |
12 |
| Number of 5.25" bays |
0 |
| Supported motherboard form factors |
ATX, micro ATX, SSI CEB, SSI EEB, Mini-ITX, EATX |
| Product colour |
White |
| Material |
Steel, Mesh, Tempered glass, Plastic |
| Type |
PC |
| Form factor |
Full Tower |
| Power supply |
| Supported power supply form factors |
ATX |
| Power supply location |
Bottom |
| Power supply included |
No |
| Ports & interfaces |
| ARGB ports quantity |
1 |
| Audio output |
Yes |
| Audio input |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 2.0 ports quantity |
0 |
| Cooling |
| Top radiator sizes supported |
360,420 mm |
| Rear radiator sizes supported |
240 mm |
| Bottom radiator sizes supported |
360,420 mm |
| Side radiator sizes supported |
420,480 mm |
| Front radiator sizes supported |
360,420 mm |
| Liquid cooling capability |
Yes |
| Bottom fans diameters supported |
120,140 mm |
| Number of bottom fans supported (max) |
3 |
| Bottom fans installed |
1x 120 mm |
| Top fans diameters supported |
140,120,200 mm |
| Number of top fans supported (max) |
6 |
| Rear fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
2 |
| Rear fans installed |
2x 120 mm |
| Side fans diameters supported |
140,120 mm |
| Number of side fans supported (max) |
4 |
| Front fans diameters supported |
120,140,200 mm |
| Number of front fans supported (max) |
2 |
| Front fans installed |
2x 200 mm |
| Storage |
| HDD/SSD combo cage |
Yes |
| Supported HDD sizes |
2.5,3.5" |
| Weight & dimensions |
| Weight |
24.7 kg |
| Height |
626 mm |
| Depth |
666 mm |
| Width |
291 mm |
| Packaging data |
| Package weight |
29.4 kg |
| Package height |
725 mm |
| Package depth |
780 mm |
| Package width |
399 mm |
