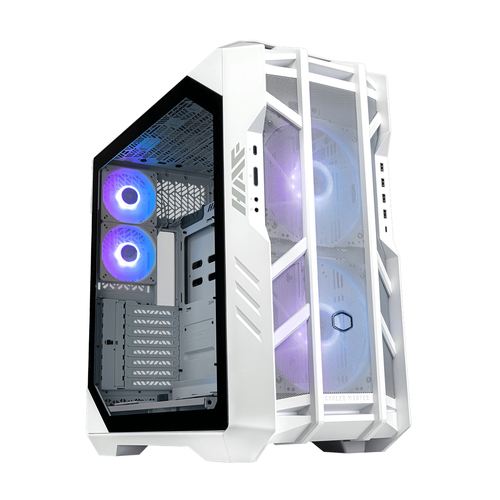

The Cooler Master HAF 700 is a high‑airflow Full Tower Case built with a robust steel frame, mesh front panel, and plastic accents. It features a tempered glass side panel for clear component visibility, supports a wide range of motherboards (Mini‑ITX, Micro ATX, ATX, E‑ATX) and includes dual 200 mm fans to maximize airflow.
In Spirit of Cooler Master’s HAF Legacy
HAF 700 embodies the spirit of HAF’s performance oriented design, boasting attention to mechanical detail.
Hardware & Connectivity
No Limits.
The HAF 700 is capable of housing up to SSI-EEB motherboards (E-ATX), as well as any sized graphics cards in BOTH horizontal and vertical orientations.
Rich Connectivity
The front I/O is designed to maximize the front connectivity for most high end motherboards, featuring four USB Gen 3.1 Type A ports, a USB Gen 3.2 Type C, a 4 pin audio/mic headset jack as well as a dedicated mic jack.
Cooling Options
Mammoth Radiator Support
Unparalleled Options for Custom Cooling
480mm: Side Panel *1
360mm: Front Panel *1 or Bottom Panel *1 / Top Panel *2
240mm: Rear Panel *1
Advanced Mounting Options
The unique removable top panel design allows you to effortlessly install, reach and maintain cooling components such as fans and radiators even in builds with complex custom cooling systems.
This, coupled with the rotatable radiator/fan bracket included out of the box allows for an unparalleled building experience.
Exclusive 200mm SickleFlow ARGB PWM Performance Edition
HAF 700 comes with dual exclusive 200mm Sickleflow ARGB PWM "Performance Edition" fans tailored to strike a balance between performance potential and noise levels.
Integrated 7x PWM & 5x ARGB Hub
This chassis features a fully integrated PWM/ARGB Hub that allows for effortless cable management and control over multiple fans and ARGB devices. The Hub is fully compatible with ARGB Gen2 devices.
A-RGB Gen2 Features
ARGB Gen2 Ready, Controller Included
ARGB Gen2 technology allows users to explore full range customization down to the lighting effecting of each individual LED, while remaining compatible with third party devices.
MasterPlus+ Software Integration
HAF 700 comes equipped with a software suite in MasterPlus+, facilitating user-friendly management and customization of the integrated ARGB Gen2 controller (A1).
The A1 controller plugin will automatically be activated on MasterPlus+ once the controller has been connected to the system.
Design Highlights
Unrestricted Front Panel Intake
HAF 700 sports a fully meshed front panel, specifically designed to allow for maximum air intake.
With the front panel structurally reinforced to prevent resonation caused by fan vibrations, systems can run smoothly at minimal noise levels.

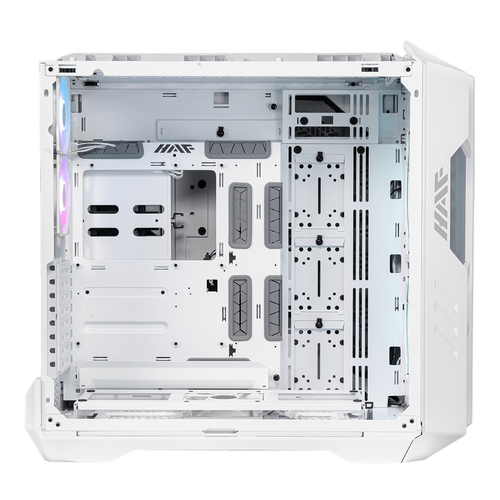

Multi Chamber Layout
HAF 700’s structure segregates non heat sensitive components so heat dissipation can be targeted towards heat sensitive components at an overall higher efficiency.
Tool-less Installation
Tool-less Vertical GPU Mounting (Patent Pending)
No more fiddling with screws! HAF 700 features a unique clamping mechanism that allows users to install, remove, and upgrade graphics cards without the need to use any tools.
Tool-less PSU Mount
To install PSUs, simply slide the power supply in place and secure it with the two included thumbscrews on the rear end of the case. No tools, no hassle.
Tool-less HDD Cage
The rear chambers includes a tool-less, swiveling drive cage that allows users to quickly access drives with ease.
Tool-less MultiFunction Brackets
Multifunction, repositionable brackets can be used to mount SSDs, HDDs, or pumps/reservoirs for liquid cooling.
Specifications
| Design |
| Maximum PSU length |
20 cm |
| Maximum graphics card length |
49 cm |
| Maximum CPU cooler height |
16.6 cm |
| LED indicators |
Yes |
| On/off button |
Yes |
| Cable management |
Yes |
| Anti-dust filter |
Yes |
| Tempered glass panel(s) |
Yes |
| Illumination location |
Case fans |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Suitable for |
Gaming |
| Side window |
Yes |
| Number of expansion slots |
8 |
| Number of storage drives supported |
9 |
| Number of internal 3.5" bays |
9 |
| Number of 2.5" bays |
9 |
| Number of 3.5" bays |
9 |
| Number of 5.25" bays |
0 |
| Supported motherboard form factors |
ATX, EATX, micro ATX, Mini-ITX, SSI CEB, SSI EEB |
| Product colour |
White |
| Material |
Mesh, Plastic, Steel, Tempered glass |
| Type |
PC |
| Form factor |
Full Tower |
| Power supply |
| Supported power supply form factors |
ATX |
| Power supply location |
Bottom |
| Power supply included |
No |
| Ports & interfaces |
| ARGB ports quantity |
1 |
| Audio output |
Yes |
| Audio input |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 2.0 ports quantity |
0 |
| Cooling |
| Top radiator sizes supported |
360,420 mm |
| Rear radiator sizes supported |
240 mm |
| Bottom radiator sizes supported |
360,420 mm |
| Side radiator sizes supported |
420,480 mm |
| Liquid cooling capability |
Yes |
| Bottom fans diameters supported |
120,140 mm |
| Number of bottom fans supported (max) |
3 |
| Bottom fans installed |
1x 120 mm |
| Top fans diameters supported |
120,140,200 mm |
| Number of top fans supported (max) |
6 |
| Rear fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
2 |
| Rear fans installed |
2x 120 mm |
| Side fans diameters supported |
120,140 mm |
| Number of side fans supported (max) |
4 |
| Front fans diameters supported |
200 mm |
| Number of front fans supported (max) |
2 |
| Front fans installed |
2x 200 mm |
| Storage |
| HDD/SSD combo cage |
Yes |
| Supported HDD sizes |
2.5,3.5" |
| Weight & dimensions |
| Weight |
19.9 kg |
| Height |
626 mm |
| Depth |
666 mm |
| Width |
291 mm |
| Packaging data |
| Package weight |
24.5 kg |
| Package height |
725 mm |
| Package depth |
780 mm |
| Package width |
399 mm |
