Level Up Your Power
Cooler Master presents the MWE Gold V2 ATX 3.1 Ready featuring high power, ultra-silent performance with exceptional efficiency and reliability.
ATX 3.1 Support & a Durable 12V-2x6 Adapter Cable
Includes ATX 3.1 support and a 90-degree 12V-2x6 PCIe 5.1 connector with higher electrical durability and three 8-pin connectors with improved safety, capable of bringing up to 600W to your GPU.
*All performance stats confirmed in 25°C ambient temperature testing.
Certified Efficiency
The MWE Gold V2 ATX 3.1 is certified to achieve more than 90% efficiency at typical loads.
Fully Modular Cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
High Temperature Resilience
A 50°C operating temperature and high quality Japanese capacitors allow for pushing your machine to the limits.
Three 8-pin Connectors
Up to 600W of power is split between three 8-pin connectors, providing enhanced safety.
PSU Calculator
Need help choosing the right power supply for your system? Try out our comprehensive and easy-to-use PSU calculator.
Specifications
| Power |
| Power protection features |
Over current, Over power, Over total voltage, Over voltage, Short circuit, Under voltage |
| Efficiency |
90% |
| Hold time |
16 ms |
| Power Good signal delay range |
100 - 150 ms |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
20 A |
| Max output current (+12V) |
62.5 A |
| Max output current (+3.3V) |
20 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
100 W |
| Combined power (+12V) |
750 W |
| Combined power (+3.3V) |
100 W |
| Power Factor Correction (PFC) type |
Active |
| Input current |
10 - 5 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Total power |
750 W |

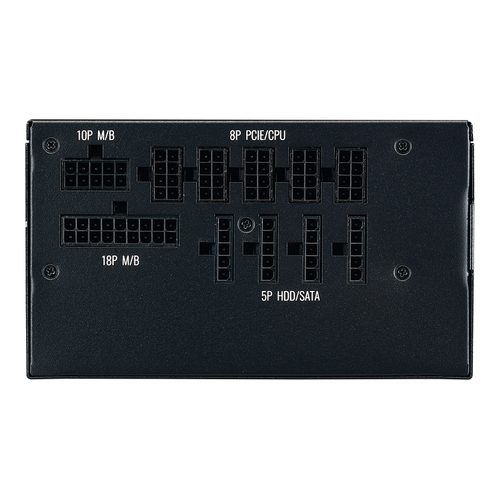

| Ports & interfaces |
| Cabling type |
Fully-Modular |
| ATX Power connector (24-pin) |
Yes |
| PCI Express power connectors (6+2 pin) |
4 |
| EPS power connector (4+4 pin) |
Yes |
| EPS power connector (8-pin) |
Yes |
| Peripheral (Molex) power cable length |
740,620,500,860 mm |
| Peripheral (Molex) power connectors (4-pin) |
4 |
| SATA power cable length |
500,620,740,860 mm |
| Number of SATA power connectors |
12 |
| Motherboard power cable length |
61 cm |
| Motherboard power connector |
24-pin ATX |
| Performance |
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
HDB |
| ATX version |
3.1 |
| 80 PLUS certification |
80 PLUS Gold |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
| On/off switch |
Yes |
| Fan location |
Top |
| Number of fans |
1 fan(s) |
| Fan diameter |
12 cm |
| Cooling type |
Active |
| Product colour |
Black |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Certificates |
| Certification |
TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA |
| Weight & dimensions |
| Weight |
2.62 kg |
| Height |
86 mm |
| Depth |
160 mm |
| Width |
150 mm |
| Packaging data |
| Package type |
Box |
| Package weight |
2.9 kg |
| Package height |
120 mm |
| Package depth |
310 mm |
| Package width |
194 mm |
| Technical details |
| Sustainability certificates |
ErP |
