Max Performance, Minimalist Design
Build a high-performance, compact setup with the Cooler Master N CORE 100 MAX SFF Mini‑ITX Case. This 15.7 L chassis blends anodized aluminium panels with steel and plastic construction for a premium yet durable feel. It supports full-size graphics cards (up to 3.9-slot width) by expanding from 155 mm to 172 mm in width. Pre-installed components include a custom 120 mm AIO cooler and an 850 W V‑SFX Gold ATX 3.0 power supply — giving you a powerful, all-in-one small form factor build out of the box.
THE COMPACT CASE FOR POWERFUL PC
Discover the Ncore 100 MAX by Cooler Master: a compact, high-performance addition to the MAX series. It offers advanced cooling, power solutions, and a small form factor with anodized aluminum panels. Accommodating up to 3.9 Slot GPU, it ensures compatibility with the latest processors, delivering unparalleled performance without sacrificing design. Experience versatility, compatibility and peak performance with the sleek, space-saving Ncore 100 MAX. Elevate your setup today!
Custom AIO cooling
A custom 120mm AIO cooling solution works well with the latest i9 and R9 CPUs and features both AMD AM4 and Intel LGA1700 sockets.
High-end GPU compatibility
Includes support for high performance, triple-slot GPUs up to 336mm in length and 140mm in height, with four included 6+2 pin power cables and a vertical mount design.
Tailor-made power solution
Cooler Master’s V SFX Gold 850W ATX 3.0 PSU covers all your power needs and comes with custom length cables.

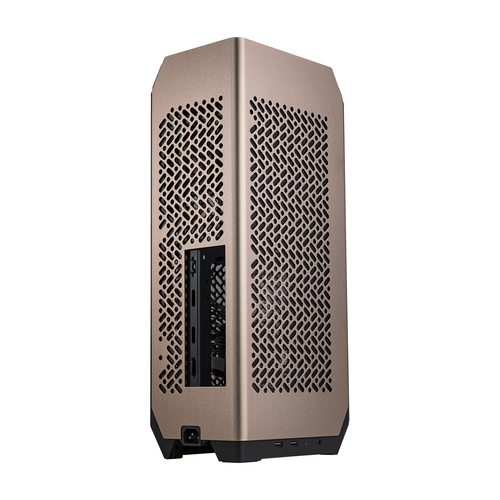

Premium aluminum paneling
An anodized aluminum shell makes the Ncore 100 MAX stand out as a desktop work of art.
Easy installation
Pre-routed cables ensure the installation process is as smooth as can be.
Innovative extendable mechanism
Extendable width from 155mm to 172mm allows for 4 GPU slots and RTX 4090 compatibility or 3 slots for a super-small form factor.
Ultra-silent performance
A custom Silencio fan provides total control over noise output and cooling performance.
Airflow
The NCORE 100 MAX layout has been meticulously designed to offer the most efficient thermal layout. This layout pulls in air from the standing sides of the case, which are its largest surfaces.
Pre-routed cables
Includes custom length, pre-routed cables which have been placed right where you need them and are ready to be connected to your motherboard and GPU.

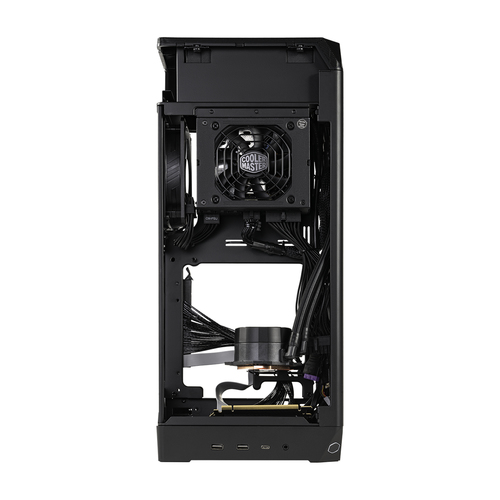

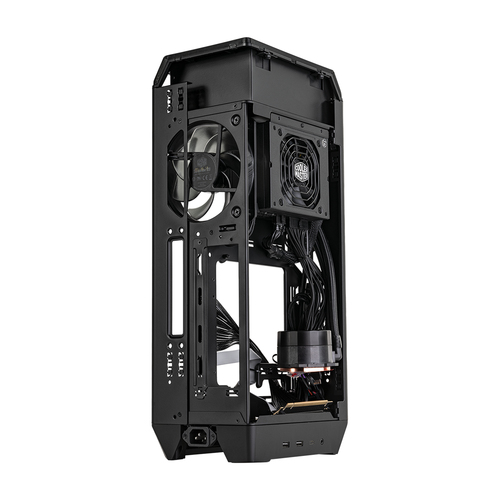

Open frame design
Eliminating three surfaces usually included in a standard case to let you approach installation from numerous angles. Even tha cable cover features tool-less removal, for the utmost in accessibility.
MINIMALIST DESIGN, MAXIMALIST POWER
The Ncore 100 MAX has been designed with a minimalist industrial design that would look right at home in a design studio. The MAX also includes ample ventilation and adjustable space to house enough power to satisfy even the most power-hungry use cases such as gaming and creative works.
MINIMUM EFFORT, MAXIMUM PAYOFF
Small form factor PC are notoriously difficult to install because of the cramped space. Not the Ncore 100 MAX, it is the easiest Compact case on the market to build in just pop in your motherboard and GPU through the open frame design and connect the pre-routed cables.
Specifications
| Design |
| Maximum PSU length |
10 cm |
| Maximum graphics card length |
35.7 cm |
| Maximum CPU cooler height |
4.8 cm |
| Cable management |
Yes |
| Anti-dust filter |
Yes |
| Number of expansion slots |
3 |
| Number of 2.5" bays |
1 |
| Number of 3.5" bays |
0 |
| Number of 5.25" bays |
0 |
| Supported motherboard form factors |
ITX |
| Product colour |
Bronze |
| Material |
Aluminium, Plastic, Steel |
| Type |
PC |
| Form factor |
Small Form Factor (SFF) |
| Power supply |
| 80 PLUS certification |
80 PLUS Gold |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Supported power supply form factors |
ATX |
| Power supply |
850 W |
| Power supply included |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
0 |
| Cooling |
| Liquid cooling installed |
Yes |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2, Socket FM2+ |
| Pump power consumption |
3.96 W |
| Rear fans installed |
1x 120 mm |
| Side fans installed |
1x 120 mm |
| Storage |
| SSD form factor |
2.5" |
| Weight & dimensions |
| Pump height |
4.7 cm |
| Pump depth |
8.1 cm |
| Pump width |
7.6 cm |
| Radiator height |
3.8 cm |
| Radiator depth |
15.9 cm |
| Radiator width |
11.9 cm |
| Weight |
6.3 kg |
| Height |
481 mm |
| Depth |
155 mm |
| Width |
212 mm |
| Packaging data |
| Package weight |
8.4 kg |
| Package height |
275 mm |
| Package depth |
570 mm |
| Package width |
298 mm |
| Cables included |
PCIe |
| Other features |
| Volume |
17.54 L |
