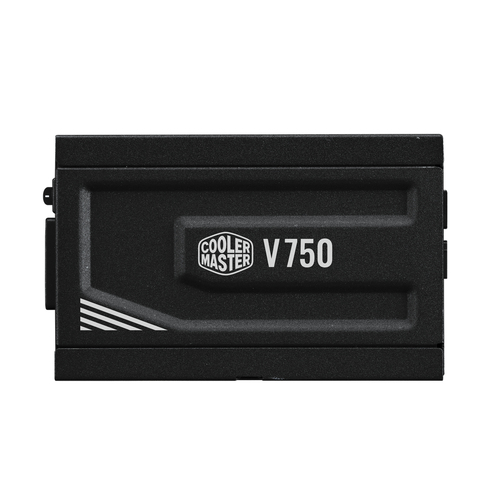

Small But Mighty
As the leading SFX power supply design, the V SFX Gold offers a highly powerful unit in a space-saving, mini form factor.
Flexible compatibility
With the included SFX-to-ATX bracket, the V SFX Gold ATX 3.1 can be used to power systems ranging from as small as a mini-ITX all the way up to E-ATX motherboards.
80 PLUS Gold certified
The V SFX Gold is certified to achieve more than 90% efficiency at typical loads.
ATX 3.1 support & a durable 90-degree 12V-2x6 cable
Includes ATX 3.1 support and a 90-degree 12+4pin (12V-2x6) PCIe 5.1 connector featuring higher electrical durability, lower temperatures, and improved safety.
100% Japanese capacitors
Large, high-quality Japanese capacitors feature improved efficiency and reduced ripple noise.

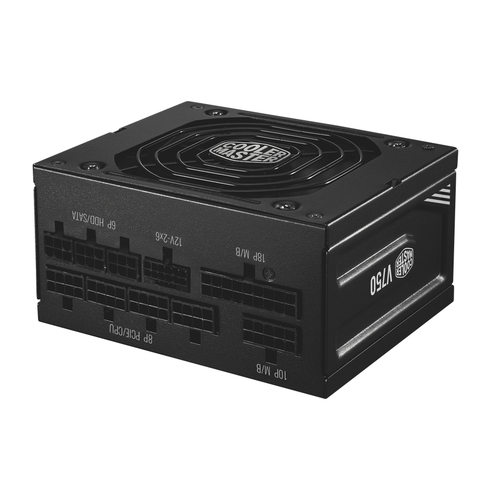

Fully modular cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.

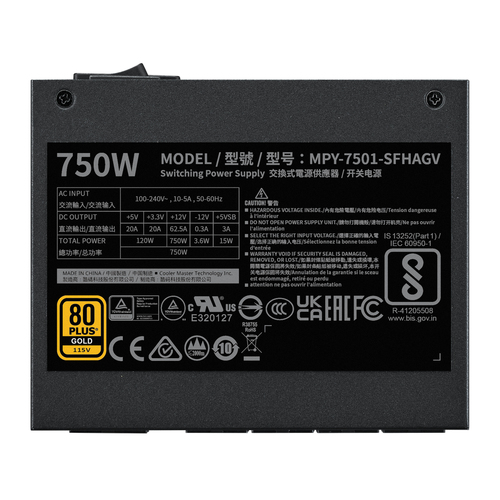

Specifications
| Power |
| Power protection features |
Over current, Over power, Over total voltage, Over voltage, Short circuit, Under voltage |
| Efficiency |
90% |
| Hold time |
16 ms |
| Power Good signal delay range |
100 - 500 ms |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
20 A |
| Max output current (+12V) |
62.5 A |
| Max output current (+3.3V) |
20 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
120 W |
| Combined power (+12V) |
750 W |
| Combined power (+3.3V) |
120 W |
| Power Factor Correction (PFC) type |
Active |
| Input current |
10 - 5 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Total power |
750 W |
| Ports & interfaces |
| Cabling type |
Fully-Modular |
| Number of EPS connectors |
2 |
| ATX Power connector (24-pin) |
Yes |
| PCI Express power connectors (12-pin) |
1 |
| PCI Express power connectors (6+2 pin) |
4 |
| EPS power connector (4+4 pin) |
Yes |
| EPS power connector (8-pin) |
Yes |
| Peripheral (Molex) power cable length |
100,215,330,445 mm |
| Peripheral (Molex) power connectors (4-pin) |
4 |
| SATA power cable length |
100,215,330,445 mm |
| Number of SATA power connectors |
8 |
| Motherboard power cable length |
30 cm |
| Motherboard power connector |
24-pin ATX |
| Performance |
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
FDB |
| ATX version |
3.42 |
| 80 PLUS certification |
80 PLUS Gold |
| Power supply unit (PSU) form factor |
SFX |
| Purpose |
PC |
| Design |
| On/off switch |
Yes |

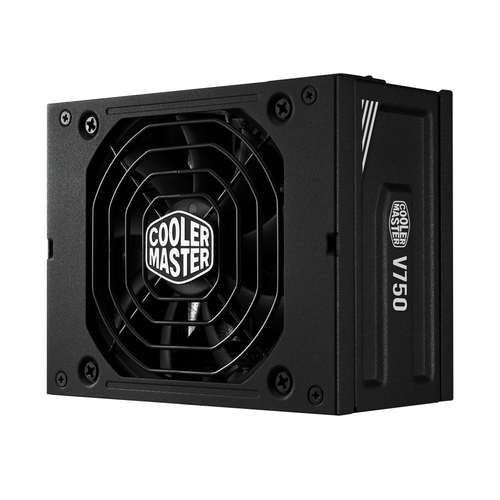

| Fan location |
Top |
| Number of fans |
1 fan(s) |
| Fan diameter |
9.2 cm |
| Cooling type |
Active |
| Product colour |
Black |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Certificates |
| Certification |
TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA |
| Weight & dimensions |
| Weight |
1.42 kg |
| Height |
63.5 mm |
| Depth |
100 mm |
| Width |
125 mm |
| Packaging data |
| Package type |
Box |
| Package weight |
1.86 kg |
| Package height |
100 mm |
| Package depth |
190 mm |
| Package width |
260 mm |
| Manual |
Yes |
| Cable storage bag included |
Yes |
| Technical details |
| Sustainability certificates |
ErP |
