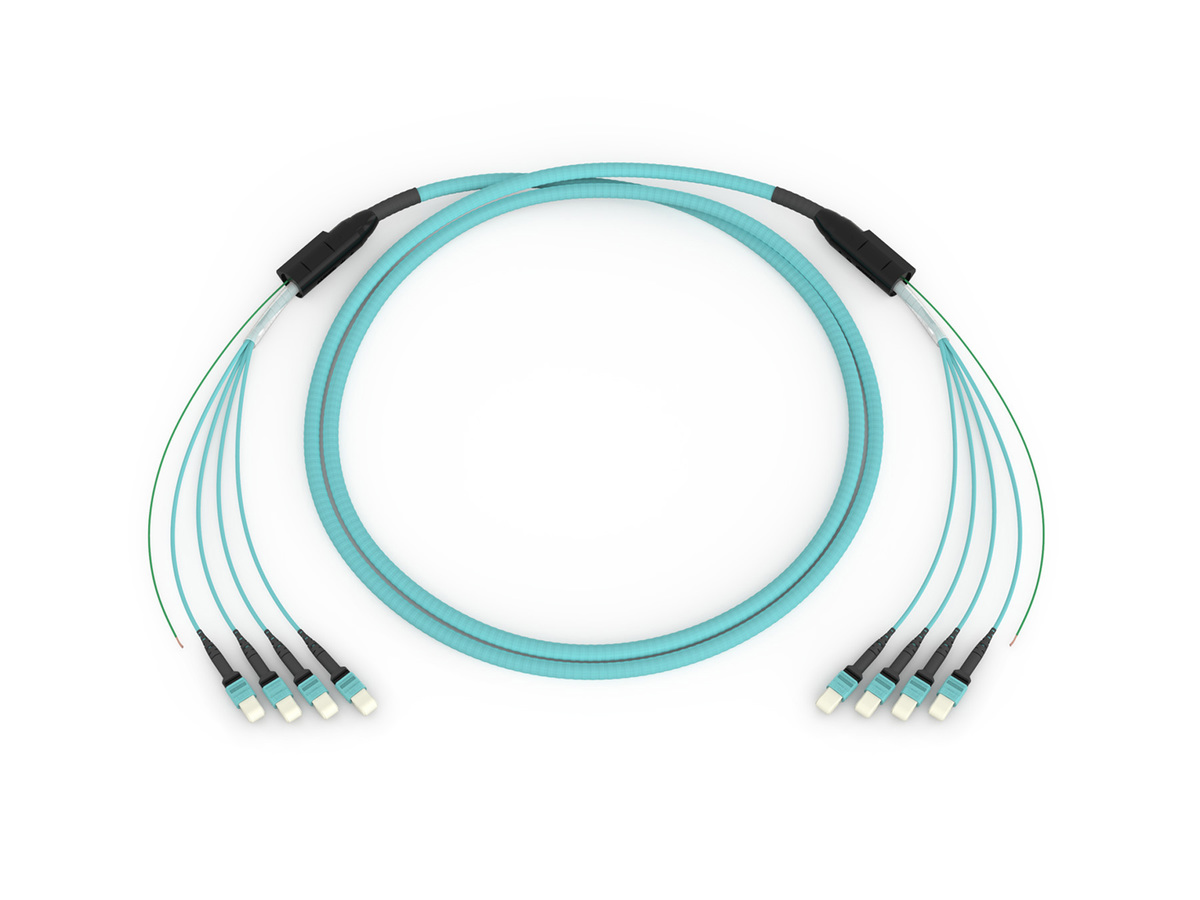

Corning GE5E508QADDDU100F EDGE8 MTP Armored Trunk 8F OM4 100ft Fiber Optic Cable
EDGE8® MTP®/MPO trunks provide the backbone of the EDGE8 solution. With 8-fiber pinned MTP connectors on both ends, these trunks are designed to interface with EDGE8 universal modules or adapter panels for parallel optic applications. All MTP trunks are manufactured with Corning® CleanAdvantage™ technology and shipped with strain-relief clips to allow easy tool-less installation. EDGE8® trunks utilize an 8-fibre push/pull optical connector that is pinned on both ends of the cable. The trunks are shipped with strain-relief clips that allow for toolless installation in EDGE8 housings. The grip can be pulled using up to 400 N of pulling tension while providing complete protection for the connectors. All trunks greater than 30 m are packaged on a plastic corrugated reel for easy installation.
Features and Benefits
Snap-in strain-relief clips
Provide easier cable management
Low-loss connectivity
Enables system design flexibility
Small outer diameter
Improves cable tray fill ratio and allows for imported airflow
Bend-improved fiber
Allows tighter cable bends for slack storage and routing, less risk of downtime due to pinched or bent cables
Corning® CleanAdvantage™ technology and optimized dust cap
Eliminates the need for scoping and cleaning prior to initial field connection
Specifications
| Product Number |
GE5E508QADDDU100F |
| Flame Rating |
Plenum (OFNP) |
| Fiber Category |
50 µm MM (OM4) |
| Cable Assembly Type |
EDGE8® Trunk |
| Environment |
Indoor |
| Application |
Data Center |
| Cable Type |
Interconnect |
| Connector Assembly Type |
MTP to MTP |
| Fiber Standards |
IEC 60793-2-10 for A1a class 50/125 multimode fibers; TIA/EIA 492AAAD (OM4); ITU-T Recommendation G.651; ISO/IEC 11801 Ed.2.2 Grade OM4 |
| Reaction to Fire |
Cca, s1b, d1, a1 |
| RoHS |
Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings |
NFPA 262, National Electrical Code® (NEC®), OFNP, CSA FT-6 |
| Design and Test Criteria |
ANSI/ICEA S-83-596 |
| Temperature Range, Installation |
0 °C to 50 °C (32 °F to 122 °F) |
| Temperature Range, Operation |
-10 °C to 60 °C (14 °F to 140 °F) |
| Fiber Count |
8 |
| Polarity |
Universal, TIA-568 Type-B |
| Fiber Type |
Multimode |
| Nominal Outer Diameter |
11.3 mm (0.44 in) |
| Min. Bend Radius Installation |
169.5 mm (6.67 in) |
| Min. Bend Radius Operation |
56.5 mm (2.22 in) |
| Fiber Code |
T |
| Performance Option Code |
90 |
| Fiber Name |
50 µm MM (OM4) |
| Maximum Attenuation |
2.8 dB/km / 1.0 dB/km |
| Wavelengths |
850 nm / 1300 nm |
| Fiber Compliance |
IEC 60793-2-10 |
| Fiber Core Diameter |
50 µm |
| Serial 1 Gigabit Ethernet |
1000 m / 600 m |
| Serial 10 Gigabit Ethernet |
550 m / - |
| Minimum Effective Modal Bandwidth (EMB) |
4700 MHz*km / - |
| Min. Overfilled Launch (OFL) Bandwidth |
3500 MHzkm / 500 MHzkm |
