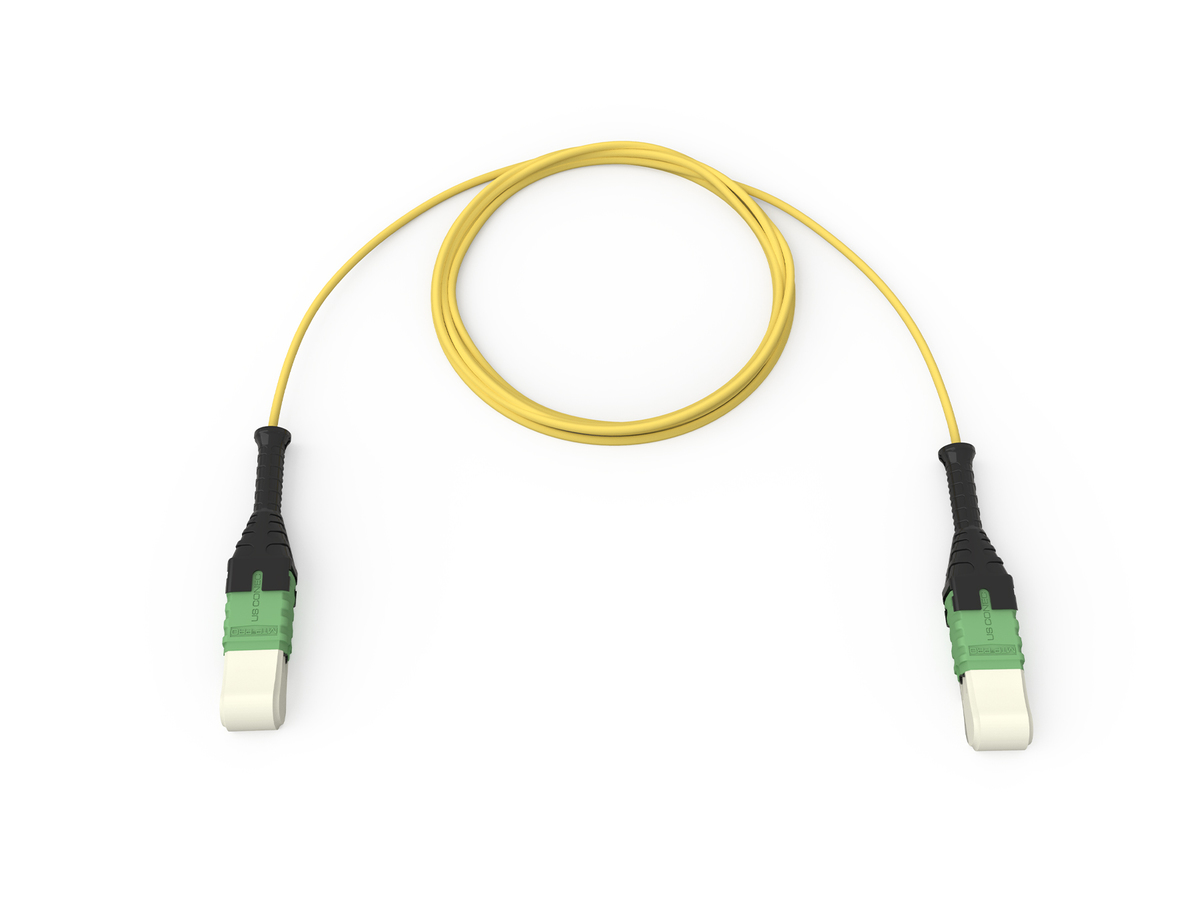

EDGE8® 8-fiber MTP® PRO jumpers allow for seamless migration to higher data rates in the data center when used in conjunction with EDGE8 trunks. These assemblies have the same connector size and cable footprint as duplex LC jumpers. The density, airflow, and cable management advantages of EDGE8 solutions are preserved as you migrate to higher data rates. These MTP Jumpers are built utilizing MTP PRO connectors. MTP PRO allows for a simple, one-step, colorcoded polarity change without removing the connector housing. The connector also provides the capability for field-friendly pinning configuration changes with safe handling of pins and easy color identification while maintaining product integrity. EDGE8 MTP jumpers are manufactured with Corning® CleanAdvantage™ and shipped with optimized dust caps, eliminating the need for cleaning and scoping prior to initial field connection.
Features and Benefits
Slim round 2-fiber interconnect cable
Improves airflow and reduces congestion
MTP® PRO connectors
Allows for pinning and poliarity changes in the field
Bend-improved fiber
Allows tighter cable bends for slack storage and routing, less risk of downtime due to pinched or bent cables
Corning® CleanAdvantage™ technology and optimized dust cap
Eliminates the need for scoping and cleaning prior to initial field connection
Specifications
| Product Number |
JE2E208QEZ-NA003M |
| Flame Rating |
LSZH/FRNC |
| Fiber Category |
50 µm MM (OM4) |
| Cable Assembly Type |
EDGE8 Jumper |
| Environment |
Indoor |
| Cable Type |
Interconnect |
| Assembly Insertion Loss |
≤ 0.35 dB |
| RoHS |
Free of hazardous substances according to RoHS 2011/65/EU |
| Intermateability |
TIA/EIA-604-5 / TIA/EIA-604-5 |
| Temperature Range, Installation |
0 °C to 50 °C (32 °F to 122 °F) |
| Temperature Range, Operation |
-10 °C to 60 °C (14 °F to 140 °F) |
| Temperature Range, Storage |
-25 °C to 70 °C (-13 °F to 158 °F) |
| Fiber Count |
8 |
| Polarity |
TIA-568 Type-A |
| Fiber Type |
Multimode |
| Minimum Bend Radius |
17 mm (0.67 in) |
| Nominal Outer Diameter |
2 mm (0.08 in) |
| Max. Tensile Strength for Installation |
220 N (49.46 lbf) |
| Crush Resistance |
350 N/10 cm |
| Min. Bend Radius Installation |
30 mm (1.18 in) |
| Min. Bend Radius Operation |
10 mm (0.39 in) |
| Fiber Code |
T |
| Performance Option Code |
98 |
| Fiber Name |
50 µm MM (OM4) |
| Maximum Attenuation |
2.8 dB/km / 1.0 dB/km |
| Wavelengths |
850 nm / 1300 nm |
| Fiber Compliance |
IEC 60793-2-10 |
| Fiber Core Diameter |
50 µm |
| Cladding Diameter |
125 µm |
| Coating Diameter |
242 µm |
| Serial 1 Gigabit Ethernet |
1000 m / 600 m |
| Serial 10 Gigabit Ethernet |
550 m / - |
| Minimum Effective Modal Bandwidth (EMB) |
4700 MHz*km / - |
| Min. Overfilled Launch (OFL) Bandwidth |
3500 MHzkm / 500 MHzkm |
