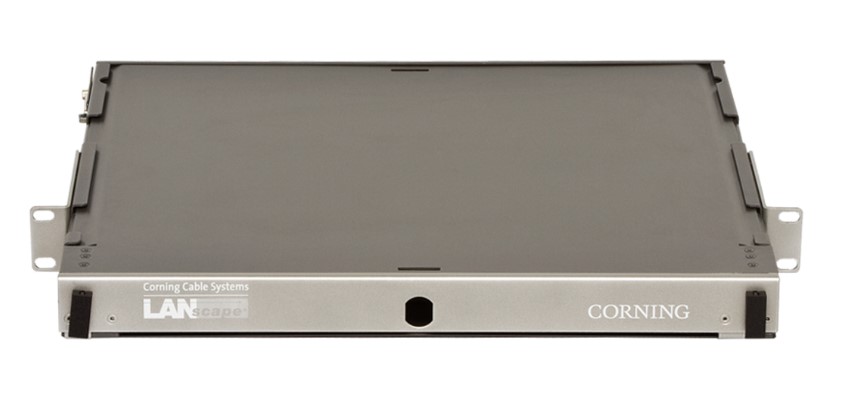

A tangled mess of fibres can bring your network to a halt, costing time and money. The Corning PCH-01U 1U Rack Mount Fiber Optic Enclosure, Holds 2 Panels Patch Panel provides a tidy, secure home for your connections, keeping them organised and protected within a standard 1 U rack space. It’s designed for data centres and enterprise networks where reliability and easy management are essential.
Corning PCH-01U 1U Rack Mount Fiber Optic Enclosure, Holds 2 Panels Patch Panel - solving your fibre management challenges
In busy network rooms, unmanaged fibres lead to accidental disconnections, difficult troubleshooting and reduced uptime. The lack of a secure, lockable housing can also expose delicate fibres to damage or unauthorised access. The Corning PCH-01U 1U Rack Mount Fiber Optic Enclosure, Holds 2 Panels Patch Panel solves these issues by offering a lockable, rack-mountable solution that protects fibres, simplifies identification and keeps your infrastructure compliant with safety standards. Its modular design means you can expand or re-configure without rewiring, saving time and reducing operational costs.
Benefits
You’ll notice real advantages straight away:
- Lockable front or rear ensures only authorised personnel can access the fibres.
- Supports up to 48 LC or 24 FC/SC/ST™ fibres, giving ample capacity for growth.
- Gray housing blends with standard rack aesthetics while remaining easy to spot.
- UL-listed and RoHS-compliant, meeting US, Canadian and EU safety regulations.
- Compact 1 U height (445 mm / 17.52 in) maximises rack space for other equipment.
Key Features
- Product Number: PCH-01U - the exact model you need for reliable performance.
- Product Type: Housings - a dedicated enclosure built for fibre patch panels.
- Mounting Type: Rack-mount - fits standard 19-inch racks for easy integration.
- Application: Data Center, Enterprise Networks - suited to critical infrastructure.
- RoHS: Free of hazardous substances according to RoHS 2011/65/EU - environmentally responsible.
- UL-Listed: United States and Canadian safety standards - certified for peace of mind.
- Lockable: Yes - provides secure access control.
- Housing Type: PCH - Corning’s proven enclosure design.
- Number of Panels per Housing: 2 - accommodates two patch panels in one unit.
- Fiber Capacity: Up to 24 fibres with FC/SC/ST™ connectors or up to 48 fibres with LC connectors - flexible to your connector preferences.
- Lock Position: Front or rear - choose the most convenient locking location.
- Housing Color: Gray - neutral colour that matches most rack environments.
- Height: 445 mm (17.52 in) - fits a single rack unit for space efficiency.
- Height Unit: 1 U - standardised height for seamless rack planning.
- Package Contents: Housing; Installation Guide; 2 Blank Panels; unit ID label; port identification label for 2 panels; assorted screws, tie wraps, spiral wraps, strain-relief clamp kit, UCC brackets and kit, nylon self-locking hex nut - everything required for a quick, complete installation.
- Shipping Weight: 5 kg - lightweight enough for easy handling yet robust.
- Units per Delivery: 1/1 - single unit per package for straightforward ordering.
Specifications
| General |
|
| Product Number |
PCH-01U |
| Product Type |
Housings |
| Mounting Type |
Rack-mount |
| Application |
Data Center, Enterprise Networks |
| Standards |
|
| RoHS |
Free of hazardous substances according to RoHS 2011/65/EU |
| UL-Listed |
United States and Canadian safety standards |
| Design |
|
| Lockable |
Yes |
| Housing Type |
PCH |
| Number of Panels per Housing |
2 |
| Panel or Module Type |
CCH |
| Splice Tray Options |
4 category 2R, 2 category 4R |
| Fiber Capacity |
Up to 24 fibers installing FC/SC/ST® Compatible connectors, or up to
48 installing LC connectors
|
| Lock Position |
Front or rear |
| Design - Adapter |
|
| Housing Color |
Gray |
| Dimensions |
|
| Height |
445 mm (17.52 in) |
| Ordering Information |
|
| Height Unit |
1 U |
| Package Contents |
Housing; Installation Guide; 2 Blank Panels; unit ID label; port identification label for 2 panels; 2
#10-32 x .38 screws; 8 #10-32 x 50 screws; 4 #12-24 x 50 screws; 4 1/8 x 4-in tie wrap, white; 2
spiral wraps, 2 ft; central member strain-relief clamp kit; left bracket for mounting UCC clamp; right
bracket for mounting UCC clamp; universal cable clamp (UCC) kit with 5 cable inserts; 2 #6-32,
SS nylon self-locking hex nut
|
| Shipping Weight |
5 kg |
| Units per Delivery |
1/1 |
