The Corsair 9000D RGB AIRFLOW is a premium Full Tower PC case designed for extreme performance and ultimate airflow. Constructed with stainless steel and tempered glass, it provides a durable and visually striking showcase for your components. Supporting ATX motherboards and multiple cooling configurations, with integrated RGB lighting and spacious interior, it’s perfect for enthusiasts and gamers who demand both style and top-tier performance in their builds.

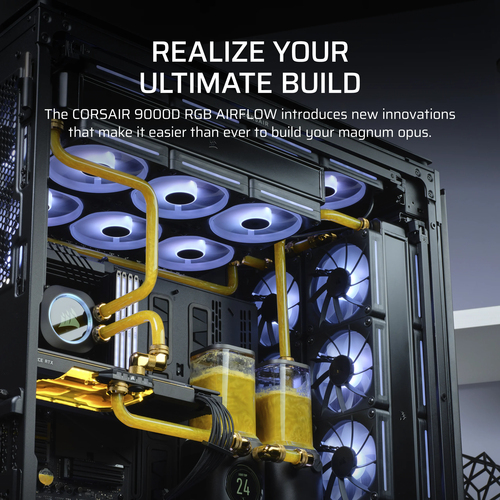

BUILT FOR AMBITION
The 9000D RGB AIRFLOW builds on the legacy of CORSAIR’s award-winning case design and introduces a host of new innovations that make it even easier to build your magnum opus.
ROOM TO BREATHE

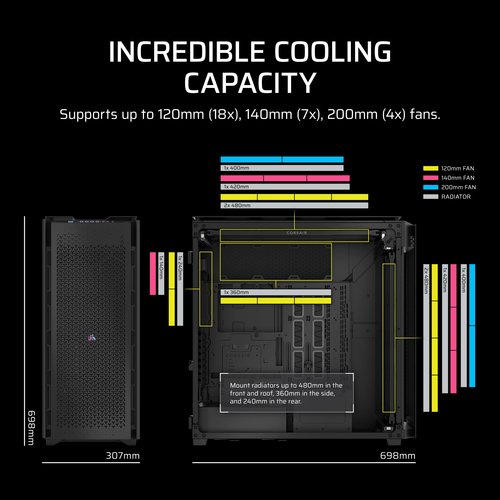

INCREDIBLE COOLING CAPACITY
A cavernous interior supports an extensive range of cooling configurations, accommodating up to 18x 120mm, 7x 140mm, or 4x 200mm fans.
Mount radiators up to 480mm in the front and roof, 360mm in the side, and 240mm in the rear for unmatched custom cooling loops.
INFINIRAIL FAN MOUNTING SYSTEM
This multi-point mounting system offers unmatched flexibility for front and roof fan configurations.
Simply slide the rail to mount 120mm and 140mm fans in any position, ensuring targeted airflow without fixed vertical mounting constraints.
THE FUTURE OF DIY BUILDING
iCUE LINK SMART COMPONENT ECOSYSTEM
- EVERYTHING IN ONE PLACE
Manage the lighting and performance for all of your components and peripherals.
- ONE CABLE. ONE CONNECTOR.
Link your components to each other in any order with a universal connector. If you can plug it in, it'll work.
- MODULAR CONTROL SOFTWARE
Fine-tune your component settings and see all PC sensor data from an intuitive interface.
EFFICIENT VENTILATION
OPTIMIZED FOR AIRFLOW

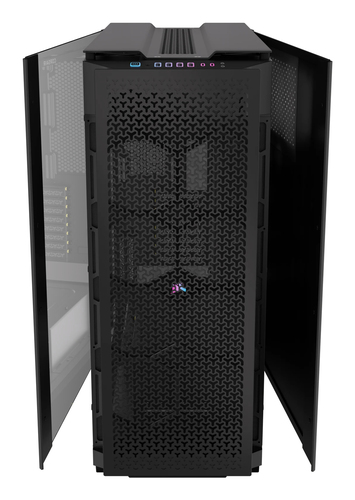

An improved high-airflow steel front panel, now removable for easy cleaning, takes in all the cool air you need to keep your top-of-the-line components performing at their best.
IMPRESSIVE I/O SETUP
INTEGRATED USB TYPE-C HUB
The front panel features an integrated USB Type-C hub that allows you to take full advantage of the case’s I/O panel regardless of your motherboard’s capabilities. The integrated DAC drives the front panel audio ports for a premium experience.
ATTENTION TO DETAIL
BUILT FOR BUILDERS

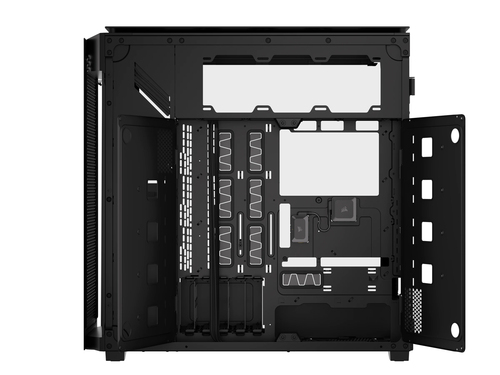

30mm of clearance behind the motherboard tray provides ample space to route all your cables, and a removable hard drive cage offers additional flexibility to accommodate sprawling custom-cooled setups.
A JOY TO BUILD IN
The 9000D RGB AIRFLOW incorporates the latest cutting-edge designs and features to make building easier and more intuitive.
- REUSABLE SCREW BOX
Never lose an important screw again thanks to the included reusable screw box holding everything you need securely locked away.
- QUICKTURN FAN SCREWS
As robust and secure as traditional screws, CORSAIR QuikTurn™ fan screws make adding fans to your system a breeze, useful when you’re filling up a case this size.
- DOUBLESHOT GROMMETS
Enjoy frustration-free cable installation with soft rubber inner grommets for easy cable passthrough and hard rubber outers that securely hold the grommet in place.
Specifications
| Design |
| Maximum PSU length |
8.86" (22.5 cm) |
| Maximum graphics card length |
15.7" (40 cm) |
| Maximum CPU cooler height |
7.09" (18 cm) |
| Anti-dust filter |
Yes |
| Side window |
Yes |
| Number of expansion slots |
10 |
| Number of internal 3.5" bays |
2 |
| Number of 2.5" bays |
6 |
| Number of 3.5" bays |
5 |
| Supported motherboard form factors |
ATX |
| Material |
Stainless steel, Tempered glass |
| Type |
PC |
| Form factor |
Full Tower |
| Ports & interfaces |
| Audio output |
Yes |
| Audio input |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Cooling |
| Top radiator sizes supported |
120,140,240,280,360,400,420,480 mm |
| Rear radiator sizes supported |
120,140,240 mm |
| Side radiator sizes supported |
240,360 mm |
| Front radiator sizes supported |
120,140,200,240,280,360,420,480 mm |
| Liquid cooling capability |
Yes |
| Top fans diameters supported |
120,140,200 mm |
| Number of top fans supported (max) |
8 |
| Rear fans diameters supported |
120,140 mm |
| Number of rear fans supported (max) |
2 |
| Side fans diameters supported |
120 mm |
| Number of side fans supported (max) |
3 |
| Front fans diameters supported |
120,140,200 mm |
| Weight & dimensions |
| Weight |
75.8 lbs (34.4 kg) |
| Height |
27.5" (698 mm) |
| Depth |
27.5" (698 mm) |
| Width |
12.1" (307 mm) |
