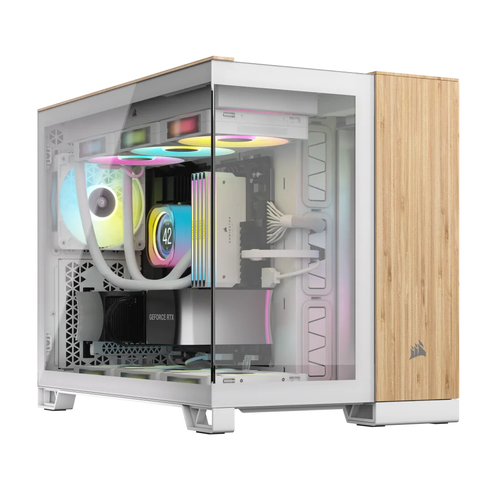

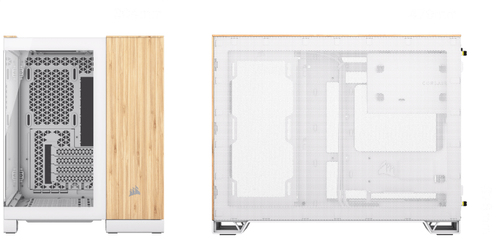

This CORSAIR 2500X Micro ATX Dual Chamber PC Case comes pre-fitted with Elite case panels to start your build in style, complete with fully mesh paneling for exceptional airflow and a dual chamber design for an organized, stunning build.
CHOOSE YOUR ADVENTURE
Your unique new build starts with pre-fitted Elite panels in a style that reflects who you are. Choose from a white or black case complemented by a variety of sleek aluminum or elegant wooden panels.
DUAL CHAMBER DESIGN
Show off your cleanest, most organized build in one chamber equipped with a multitude of fan and radiator mounts, while hiding cable routing, storage drives, and your PSU in the second chamber.
A FLAWLESS VIEW
Take advantage of reverse connector motherboard compatibility (ASUS BTF, MSI PROJECT ZERO) and iCUE LINK and win the war on cables once and for all.
ZERO COMPROMISE AIRFLOW
The 2500X doesn't just look cool. Fan and radiator mounts all around ensure enough airflow for any flagship build.
YOUR CASE, YOUR STYLE
Any system will look good in the 2500 Series, but if you're looking for inspiration, check out some of our favorites.
WIDE COOLING FLEXIBILITY
Customize your cooling setup with room for up to 9x 120mm or 6x 140mm fans, including versatile radiator mounting options for up to 240mm in the side, and up to 360mm in the roof and bottom.
MODERN FRONT PANEL I/O
Puts your connections within easy reach, including a USB 3.2 Gen 2 Type-C Port, 2x USB 3.2 Gen 1 Type-A ports, and a combination audio/microphone jack.
Specifications
| Design |
| Maximum PSU length |
22.5 cm |
| Maximum graphics card length |
40 cm |
| Maximum CPU cooler height |
18 cm |
| On/off button |
Yes |
| Reset button |
Yes |
| Cable management |
Yes |
| Anti-dust filter |
Yes |
| Tempered glass panel(s) |
Yes |
| Illumination location |
Case fans |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Suitable for |
Gaming |
| Side window |
Yes |
| Number of expansion slots |
4 |
| Number of 2.5" bays |
2 |
| Number of 3.5" bays |
2 |
| Supported motherboard form factors |
ATX |
| Product colour |
Bamboo, White |
| Material |
Steel, Tempered glass |
| Type |
PC |
| Form factor |
Midi Tower |
| Power supply |
| Supported power supply form factors |
MicroATX, mini ITX |
| Ports & interfaces |
| USB Type-C ports quantity |
1 |
| Audio output |
Yes |
| Audio input |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Cooling |
| Top radiator sizes supported |
240,280,360 mm |
| Rear radiator sizes supported |
120 mm |
| Bottom radiator sizes supported |
240,280,360 mm |
| Side radiator sizes supported |
240 mm |
| Bottom fans diameters supported |
120,140 mm |
| Number of bottom fans supported (max) |
3 |
| Top fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
3 |
| Rear fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
1 |
| Side fans diameters supported |
120 mm |
| Number of side fans supported (max) |
2 |
| Storage |
| SSD form factor |
2.5" |
| Supported HDD sizes |
3.5" |
| Technical details |
| Warranty period |
2 year(s) |
| Weight & dimensions |
| Weight |
13.4 kg |
| Height |
376 mm |
| Depth |
479 mm |
| Width |
304 mm |
