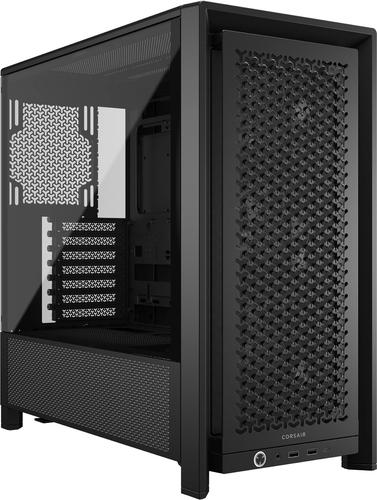

Create a clean and efficient gaming setup with the Corsair FRAME 4000D RS Gaming Midi Tower Case, engineered with a durable steel frame, tempered glass side panel, and high-quality plastic accents. Its optimized airflow layout, spacious interior, and modern design make it ideal for building high-performance gaming PCs with excellent thermal management and neat cable routing.
BUILD WITH THE BEST
50 SERIES GPUs ARE HERE
Pair a next-gen GPU with quality CORSAIR components for top-shelf performance and no hassles, right out of the box.
BUILD YOUR WAY

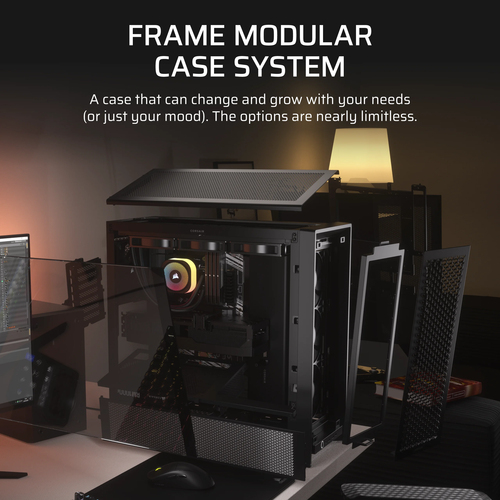

ENDLESS MODULAR POSSIBILITIES
The revolutionary FRAME Modular Case System redefines customization. Want to upgrade the motherboard tray to billet aluminum? Want to replace your front I/O panel for more USB ports? Now you can.
This case evolves with your needs, offering near limitless options for upgrades and changes.
FAN FOCUSED

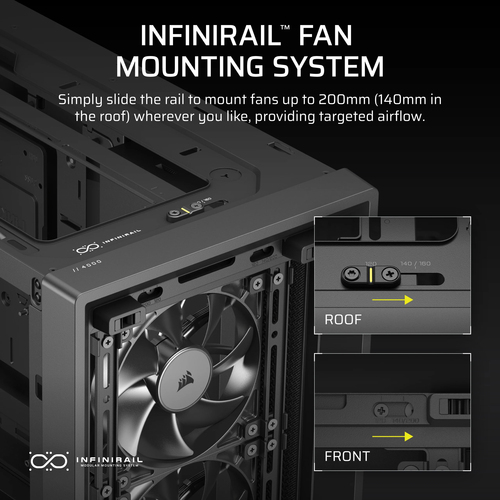

INFINIRAIL FAN MOUNTING SYSTEM
This steel multi-point mounting system provides unmatched flexibility for front and roof fan configurations. Easily slide the rail to mount fans up to 200mm (140mm in the roof) exactly where you need them, ensuring targeted airflow without limitations of fixed mounting points.
IMPROVED COOLING
UP TO 12% MORE AIRFLOW
Engineered for maximum airflow and minimal resistance, the new 3D Y-pattern steel front panel ensures a smooth, unobstructed path for cool air, enhancing overall cooling.
BUILD AND CHILL
DUAL 360mm RADIATOR SUPPORT
Boost your cooling with three dedicated mounting locations for 360mm radiators – front, roof, and side. You can mount up to 10x 120mm fans simultaneously, ensuring continuous cool air intake and efficient hot air exhaust.
AIR BENDING

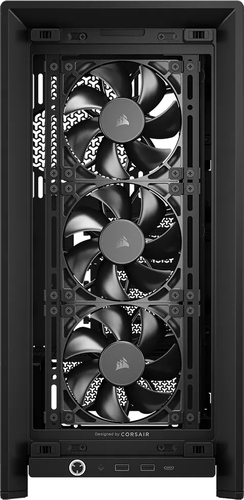

THREE RS120 FANS INCLUDED
RS120 PWM fans feature daisy-chainable connections for easy setup. Their magnetic dome bearings minimize friction, delivering a perfect combination of high airflow and quiet operation.
FUTURE PROOF
GET IN THE FRAME
Ensure your build has excellent airflow with careful cable routing and support for the latest motherboards and graphics cards.
NO VISIBLE CABLES
Fully compatible with reverse-connector motherboards from Asus, MSI, and Gigabyte, allowing for unobstructed airflow and a super-clean build.
SAG-FREE GRAPHICS CARDS
Every CORSAIR FRAME 4000D includes a GPU Anti-sag Stabilization Arm to keep your GPU steady, so you never have to worry about damaging your PCIe slot.
CABLE SHROUD
Keep unused and overly long cables out of sight with the cable shroud for a clean and organized interior.
WIDE COOLING FLEXIBILITY
Customize your cooling setup with room for up to 12x 120mm fans, plus versatile radiator mounting options including up to dual 360mm radiators.
MODERN FRONT PANEL I/O
Puts your connections within easy reach, including a USB 3.2 Gen 2 Type-C Port, 2x USB 3.2 Gen 1 Type-A ports, and a combination audio/microphone jack.
Specifications
| Design |
| Maximum PSU length |
22 cm |
| Maximum graphics card length |
43 cm |
| Maximum CPU cooler height |
17 cm |
| On/off button |
Yes |
| Cable management |
Yes |
| Anti-dust filter |
Yes |
| Tempered glass panel(s) |
Yes |
| Illumination |
No |
| Suitable for |
Gaming |
| Side window |
Yes |
| Number of expansion slots |
7 |
| Number of external 5.25" bays |
0 |
| Number of internal 3.5" bays |
2 |
| Number of 2.5" bays |
4 |
| Number of 3.5" bays |
2 |
| Number of 5.25" bays |
0 |
| Supported motherboard form factors |
ATX, EATX, micro ATX, Mini-ITX |
| Product colour |
Black |
| Material |
Plastic, Steel, Tempered glass |
| Type |
PC |
| Form factor |
Midi Tower |
| Power supply |
| Supported power supply form factors |
ATX |
| Power supply location |
Bottom |
| Power supply included |
No |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
0 |
| Cooling |
| Top radiator sizes supported |
240,280,360 mm |
| Top radiator installed |
No |
| Rear radiator sizes supported |
120,140 mm |
| Rear radiator installed |
No |
| Side radiator sizes supported |
240,280,360 mm |
| Front radiator sizes supported |
240,280,360 mm |
| Front radiator installed |
No |
| Liquid cooling capability |
Yes |
| Bottom fans diameters supported |
120 mm |
| Number of bottom fans supported (max) |
2 |
| Top fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
3 |
| Rear fans diameters supported |
120,140 mm |
| Number of rear fans supported (max) |
1 |
| Side fans diameters supported |
120,140 mm |
| Number of side fans supported (max) |
3 |
| Front fans diameters supported |
120,140,200 mm |
| Number of front fans supported (max) |
3 |
| Front fans installed |
3x 120 mm |
| Storage |
| SSD form factor |
2.5" |
| Supported HDD sizes |
2.5,3.5" |
| Packaging content |
| Manual |
Yes |
| Technical details |
| Warranty period |
2 year(s) |
| Weight & dimensions |
| Weight |
10.4 kg |
| Height |
486 mm |
| Depth |
490 mm |
| Width |
239 mm |
