ENHANCED AIRFLOW
UNRIVALED PERFORMANCE
5mm thicker fan blades enhance cooling performance by moving more air at the same speed as thinner fans. RX MAX RGB fans can also run quieter, as they can spin slower to produce the same airflow.
PERFORMANCE WHERE IT MATTERS
THICKER FANS, MORE POWER

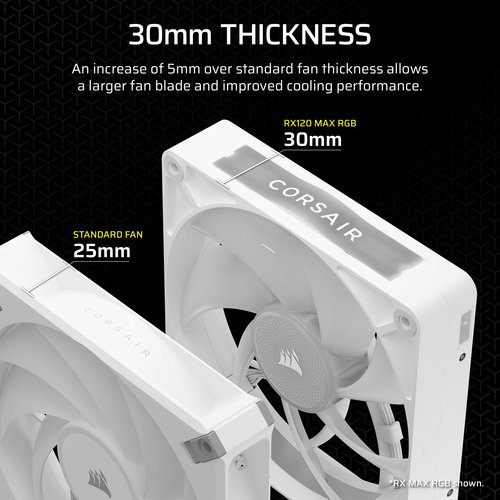

At 30mm, RX MAX RGB fans are 20% thicker than the standard PC cooling fan. This translates directly into additional cooling power for your PC, with stronger airflow and static pressure generated by the larger fan blade.
SUPERIOR AIRFLOW AND STATIC PRESSURE
RX MAX RGB fans leverage CORSAIR’s expert engineering and design to maximize every benefit of its thicker housing.
AIRFLOW
A larger fan blade with an optimized blade shape pushes a greater volume of air through your PC case.
STATIC PRESSURE

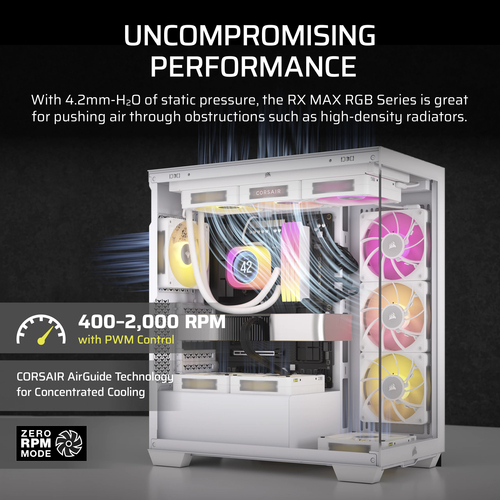

High static pressure makes RX MAX RGB ideal for radiator mounting, as it can push air more effectively through dense obstructions.
LOWER NOISE
RX MAX RGB fans significantly reduce fan noise by operating at a lower RPM compared to traditional fans while still achieving the same airflow.
EVERY SOURCE OF NOISE ADDRESSED
MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.
DESIGNED FOR REAL LIFE PERFORMANCE
RIGOROUSLY TESTED AND PERFECTED
Extensive testing bears out the RX MAX RGB Series’ exceptional cooling performance, in both case fan and radiator fan applications.
REMOVING AGE-OLD ANNOYANCES
QUIKTURN SCREW REVOLUTION
Take CORSAIR's QuikTurn screws for a single spin and see how convenient fan installation can be: as robust and secure as any traditional screw, and an absolute pleasure to use. Especially when you need to use 20 or more in a build.
Specifications
| Performance |

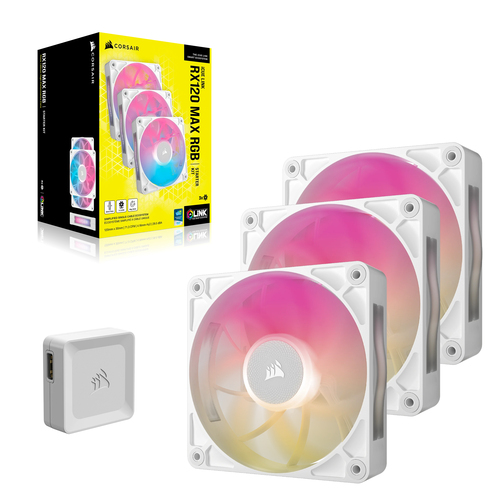

| Quantity per pack |
3 pc(s) |
| Pulse-width modulation (PWM) support |
Yes |
| Maximum air pressure |
4.16 mmH2O |
| Minimum air pressure |
0.22 mmH2O |
| Maximum airflow |
71.3 cfm |
| Minimum airflow (imperial) |
16.3 cfm |
| Noise level (high speed) |
29.5 dB |
| Noise level (low speed) |
10 dB |
| Rotational speed (max) |
2000 RPM |
| Rotational speed (min) |
400 RPM |
| Fan diameter |
12 cm |
| Type |
Fan |
| Suitable location |
Computer case |
| Design |
| Illumination colour |
Multi |
| Number of LEDs |
8 |
| Illumination LED |
Yes |
| Product colour |
White |
| Power |
| Fan current |
0.22 A |
| Weight & dimensions |
| Fan dimensions (W x D x H) |
120 x 120 x 30 mm |
| Weight |
812 g |
| Technical details |
| Warranty period |
5 year(s) |
| Packaging content |
| RGB controller included |
Yes |
| Screws included |
Yes |
| Package type |
Box |
