IT'S COOLER AT THE TOP
POWERFUL AND EFFICIENT ALL-IN-ONE CPU COOLING

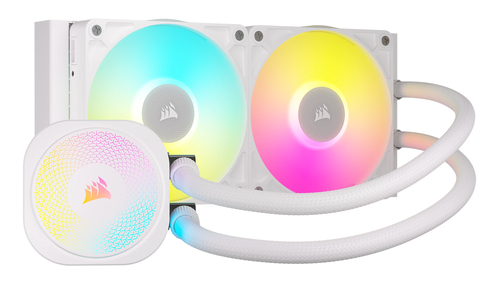

For cutting-edge systems that need to get the most out their CPUs, the TITAN RX RGB towers above the competition. Thousands of hours of in-house engineering culminate in a CPU cooler that combines unparalleled performance, impressively quiet acoustics, and simplified iCUE LINK connections.
PERFORMANCE WHERE IT MATTERS
PEAK COOLING POWER

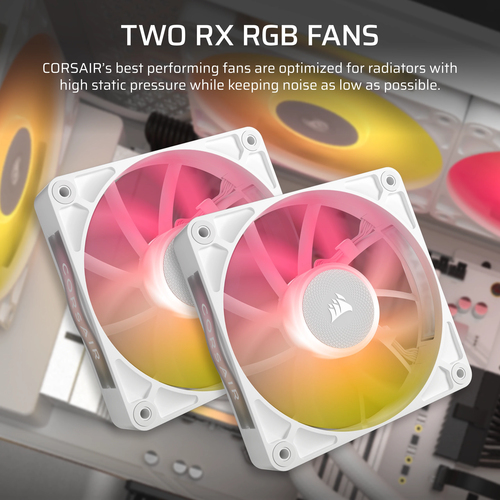

Push airflow through radiators like never before at low, medium, and high speeds. RX Series fans deliver high airflow and static pressure, while keeping noise as low as possible.

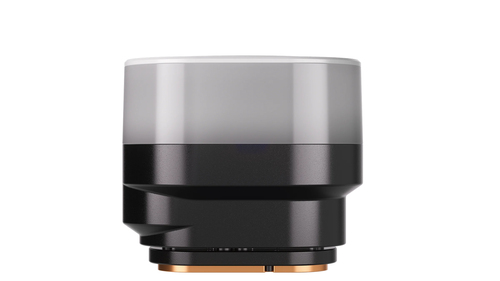

FLOWDRIVE COOLING ENGINE
Designed in-house by CORSAIR's expert engineers, the pump is powered by a three-phase motor with a higher flow rate and even lower noise levels than its predecessors. Add to that a precision-engineered cold plate surface profile that maximizes contact with your CPU’s IHS, and you have a recipe for consistently lower temperatures.
MAKE IT PERSONAL

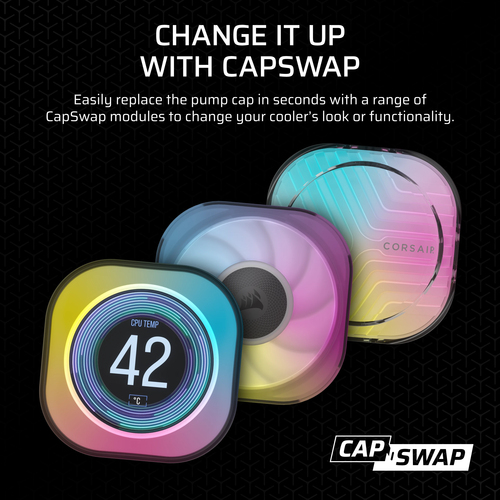

CAPSWAP MODULAR DESIGN
It's never been easier to change the look or functionality of your AIO. Switch the default pump cap with any CapSwap module (sold separately) in seconds, completely tool-free, and it's almost like a brand-new cooler.
EASY INSTALLATION FOR INTEL AND AMD CPUs
Includes mounting brackets and backplates for fast installation on a wide range of socket types, including modern Intel® LGA 1851/1700 and AMD® AM5/AM4.
KEEPING UP APPEARANCES
YOUR COOLER HAS NEVER LOOKED COOLER
PUMP CAP
The TITAN RX RGB’s unique pump cap design shows off the lighting from 20 individually addressable RGB LEDs around the pump.
DETACHABLE SIDE PLATES
Each RX RGB fan comes with a pair of decorative side plates, providing a choice between a translucent window or a CORSAIR wordmark.
FAN LIGHTING
Eight individually addressable RGB LEDs per fan display mesmerizing effects, easily synchronized with your pump lighting.
EXTREME PERFORMANCE THERMAL PASTE
For top-notch performance, every detail in the heat transfer and dissipation chain matters.
All TITAN RX RGB CPU blocks include pre-applied CORSAIR XTM70 Extreme Performance Thermal Paste for maximum heat transfer from your high-end processor to the cooler cold plate.
GET STARTED FAST WITH iCUE
See how easy it is to install your new CORSAIR components and set things up in iCUE software.
Specifications
| Performance |
| Quantity per pack |
1 pc(s) |
| Maximum air pressure |
4.33 mmH2O |
| Minimum air pressure |
0.12 mmH2O |
| Maximum airflow |
73.5 cfm |
| Minimum airflow (imperial) |
10.4 cfm |
| Rotational speed (max) |
2100 RPM |
| Rotational speed (min) |
300 RPM |
| Supported processor sockets |
LGA 1700, LGA 1851, Socket AM4, Socket AM5 |
| Fan diameter |
12 cm |
| Type |
All-in-one liquid cooler |
| Suitable location |
Processor |
| Design |
| Illumination colour |
Multi |
| Illumination LED |
Yes |
| Number of fans |
2 fan(s) |
| Base plate material |
Copper |
| Radiator material |
Aluminum |
| Product colour |
White |
| Weight & dimensions |
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Weight |
1.55 kg |
| Height |
444 mm |
| Depth |
456 mm |
| Tube length |
40 cm |
| Radiator height |
2.7 cm |
| Radiator depth |
12 cm |
| Radiator width |
27.7 cm |
| Width |
334 mm |
| Technical details |
| Warranty period |
6 year(s) |
| Packaging content |
| CPU bracket(s) |
Yes |
| Mounting kit |
Yes |
| Package type |
Box |
