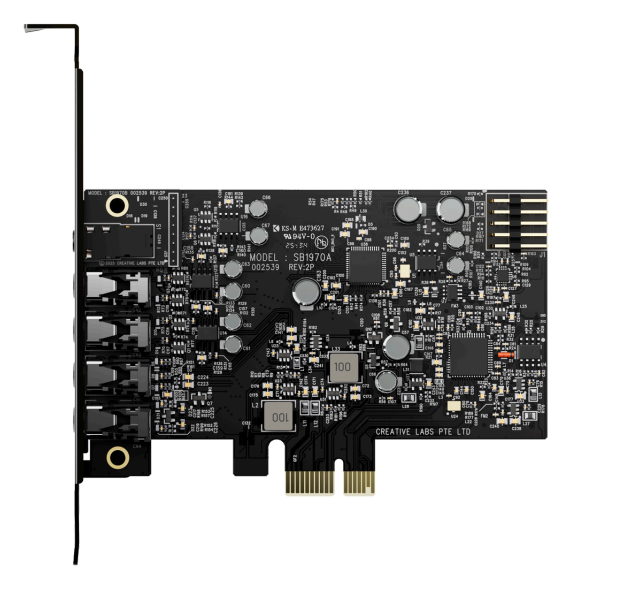

Creative Labs Sound Blaster Audigy Fx Pro 7.1 PCIe Sound Card
The Audigy Fx Pro is a compact sound card designed to deliver a clear and noticeable upgrade over onboard audio. Enjoy high-resolution playback at up to 32-bit / 384 kHz and 7.1 surround sound, with rich detail and enhanced audio clarity. It also comes with a built-in headphone amp supporting 32–300 Ω, bringing studio-grade audio to your PC effortlessly.
KEY FEATURES:
HIGH-RESOLUTION AUDIO — Delivers ultra-clear playback with 32-bit / 384 kHz and up to 120 dB SNR.
SURROUND SOUND — Supports discrete 7.1-channel analog output for immersive multichannel audio on your PC.
VERSATILE CONNECTIVITY — Connects effortlessly to multi-channel PC speaker systems, SPDIF output and headset outputs, mic-in, as well as line-in sources.
ALL-NEW CREATIVE NEXUS APP — Featuring a redesigned interface for intuitive control and Auto EQ customization, allowing users to simulate the frequency response of various headphones for a tailored listening experience.

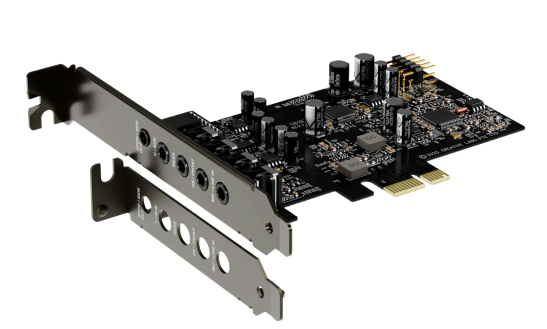

COMPACT LOW-PROFILE DESIGN — The card features a half-height bracket and a compact 10.5 cm length, ensuring compatibility with smaller cases and different build needs.
Specification
| Model Number |
SB1970 |
| Color |
Black (PCB) / Nickel plating black (bracket) |
| Interface |
PCI-e x1 to x16 bus |
| Form Factor |
Half-height profile, includes full height and half height brackets |
| SNR |
120 dB |
| THD + N |
0.003% |
| Playback Resolution (Headset/Headphone) |
PCM 16-bit/24-bit/32-bit, 44.1 to 384 kHz |
| Playback Resolution (Speaker out) |
PCM 16-bit/24-bit/32-bit, 44.1 to 192 kHz |
| Playback Resolution (SPDIF out) |
PCM 16-bit/24-bit, 44.1 to 192 kHz |
| Playback Resolution (Front panel out) |
PCM 16-bit/24-bit/32-bit, 44.1 to 192 kHz |
| DSD Support |
DSD64, DSD128, DSD256 native, DoP DSD64 and DSD128 |
| Recording Resolution |
16-bit to 32-bit, 44.1 to 192 kHz |
| Headphone Amplifier |
32 to 300 Ω support, 4.7 Ω output impedance |
| Connectivity |
1 x ⅛“ Mic in/Line in
1 x ⅛“ Headset/Headphone out/Front(L/R) out
1 x ⅛“ Center/Sub out
1 x ⅛“ Rear(L/R) out
1 x ⅛“ Side(L/R) out/SPDIF out combo
1 x HD Audio Front Panel Connector
|
| Driver Support |
WHQL Windows drivers |
| Audio APIs |
ASIO 2.3, WASAPI, USB Audio Driver Protocol (UPD) |
| Operating Temperature |
0°C to 45°C |
| OS Support |
Windows 10 64-bit, Windows 11 64-bit |
| CPU Requirement |
Intel Core i3 or AMD equivalent |
| RAM Requirement |
8 GB |
| Slot Requirement |
Available PCIe slot |
| Software |
Creative Nexus audio control software |
| Download Link |
creative.com/support/SBFxPro |
| Package Contents |
Sound card, full height bracket, half height bracket, quick start guide, warranty leaflet |
| Warranty |
1 year limited, 2 years Europe |
| Package Dimensions |
17.6 x 14.2 x 4.0 cm |
