Tired of waiting for slow, bulky printers that waste paper and space? The CUSTOM TK180 is a compact, fast label printer that fits on a desk and prints at 200 mm per second. It creates clear, durable labels for shipping, inventory, or retail. If you have missed deadlines because your old printer jams or prints blurry, you need a reliable solution that saves time and money.

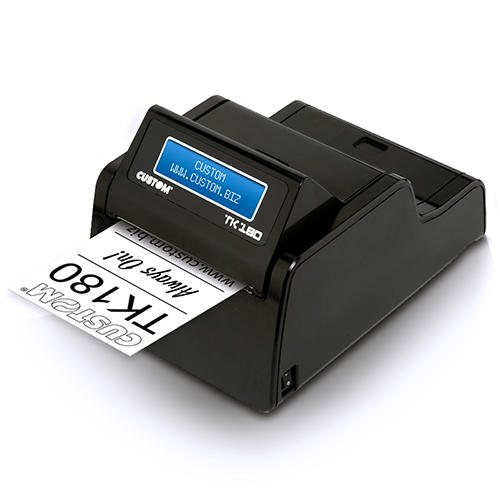

CUSTOM TK180, 203x203 DPI, 200mm/sec Thermal transfer, Label Printer
Many small businesses struggle with printers that are too large for a tight workspace and too slow for high-volume label jobs. This problem slows order processing and can cause costly errors. The CUSTOM TK180 solves the issue by delivering high-resolution 203 203 DPI prints at 200 mm/sec in a tiny footprint. Its Ethernet, USB and RS-232 ports let you connect it to any system, and the built-in sensor calibration stops waste before it starts.
Key Features
- Print speed up to 200 mm per second.
- Resolution of 203 x 203 DPI for sharp text.
- Thermal transfer technology for durable labels.
- Maximum label width 8 cm, roll diameter up to 20 cm.
- Ethernet, USB 2.0 and RS-232 ports for flexible connection.
- Built-in LCD display for easy operation.
- Automatic sensor calibration on each paper load.
- Supports common barcodes including QR, Data Matrix, and Code 128.
- Operating temperature range -10 C to 60 C.
- Weight only 1.9 kg, easy to move when needed.
Specifications
| Printing |
| Vertical printing |
Yes |
| Maximum printing width |
8 cm |
| Print speed |
200 mm/sec |
| Maximum resolution |
203 x 203 DPI |
| Colour |
No |
| Print technology |
Thermal transfer |
| Paper handling |
| Core diameter |
2.54 cm |
| Maximum roll diameter |
20 cm |
| Media thickness |
70 - 255 mm |
| Supported paper width |
20 - 82.5 mm |
| Ports & interfaces |
| RS-232 ports |
1 |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Connectivity technology |
Wired |
| Performance |
| Built-in barcodes |
AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix,
EAN13, EAN8, PDF417, QR Code, UPC-A, UPC-E
|
| Flash memory |
1 MB |
| Internal memory |
0.128 MB |
| Design |
| Display |
LCD |
| Built-in display |
Yes |
| Product colour |
Black |
| Power |
| AC adapter output current |
1.5 A |
| AC adapter output voltage |
24 V |
| AC input voltage |
110 V |
| System requirements |
| Linux operating systems supported |
Yes |
| Mobile operating systems supported |
Android, iOS |
| Windows operating systems supported |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
-10 - 60 °C |
| Operating temperature (T-T) |
-10 - 60 °C |
| Weight & dimensions |
| Weight |
1.9 kg |
| Height |
118.9 mm |
| Depth |
185.9 mm |
| Width |
130 mm |
| Packaging content |
| Cables included |
AC |
| Other features |
| Maximum resolution |
203 x 203 DPI |
