Smart Management
Featuring management interfaces, including an industry-standard CLI, and Web-based UI, the DIS-200G Serie is easy to manage and provides the controls to help protect and shape your network.

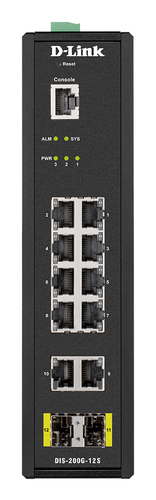

Gigabit Connectivity with SFP ports
Designed with 10 x 10/100/1000BaseT ports and 2 x SFP ports to suit a range of devices and network layouts.
Officially Certified
Certifications for vibration, shock, free-fall, electromagnetic, and high-capacity 6 kV surge protection on all copper ports to maximise network uptime in harsh deployment environments.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +65°C.
High Redundancy and Reliability
ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings.

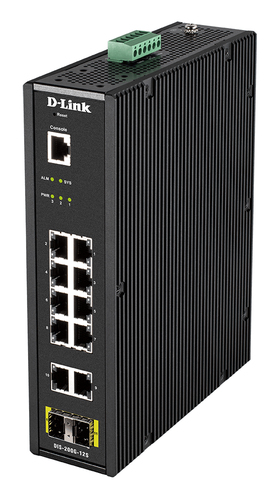

Strong Build
The tough housing has been created to keep your network protected and reliably rugged.
Enhanced IP Surveillance
Supports Auto-Surveillance VLAN (ASV), automatically detecting surveillance devices and putting them into a dedicated surveillance VLAN, increasing security of surveillance data, and giving the traffic a higher priority.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Fast Deployment

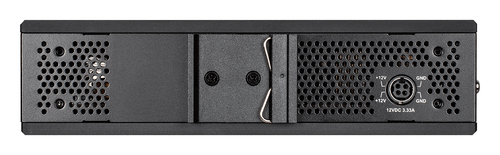

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 48 x 210 x 171.2 mm.
Specifications
| Management features |
| System event log |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
| Console port |
RJ-45 |
| SFP module slots quantity |
2 |
| Installed SFP+ modules quantity |
0 |
| Installed SFP modules quantity |
0 |
| Gigabit Ethernet (copper) ports quantity |
10 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
10 |
| Network |
| Number of VLANs |
4094 |
| Virtual LAN features |
Voice VLAN, Tagged VLAN, Port-based VLAN |
| VLAN support |
Yes |
| Active link detection |
Yes |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Broadcast storm control |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Spanning tree protocol |
Yes |
| Full duplex |
Yes |
| Port mirroring |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Optical fiber |
| Fiber ethernet cabling technology |
1000BASE-X |
| Data transmission |
| Jumbo frames |
9216 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Forwarding rate |
17.85 Mpps |
| Switching capacity |
24 Gbit/s |
| MAC address table |
8000 entries |
| Security |
| Authentication |
Port-based authentication |
| Authentication type |
RADIUS |
| Queue scheduling algorithms |
SPQ, Weighted Round Robin (WRR) |
| Security algorithms |
802.1x RADIUS, SSL/TLS |
| IGMP snooping |
Yes |
| DHCP features |
DHCP client |
| Multicast features |
| Multicast support |
Yes |
| Protocols |
| Management protocols |
SNMP v1/v2c/v3, SNTP, Telnet |
| Design |
| Electromagnetic compatibility |
CISPR 22, FCC Part 15B Class A |
| DIN rail mounting |
Yes |
| International Protection (IP) code |
IP30 |
| Number of fans |
0 fan(s) |
| Wall mountable |
Yes |
| LED indicators |
Yes |
| Housing material |
Metal |
| Product colour |
Black |
| Rack mounting |
Yes |
| Performance |
| Mean time between failures (MTBF) |
276773 h |
| Power |
| Power consumption (max) |
10.26 W |
| DC input voltage |
12 - 48 V |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Heat dissipation |
35.01 BTU/h |
| Operating temperature (T-T) |
-40 - 65 °C |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
-40 - 65 °C |
| Weight & dimensions |
| Weight |
1.63 kg |
| Height |
210 mm |
| Depth |
53 mm |
| Width |
171.2 mm |
| Certificates |
| Certification |
CE, FCC, BSMI EN 61000-4-2 ESD EN 61000-4-3 RS EN 61000-4-4 EFT EN 61000-4-5 EN 61000-4-6 CS EN 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 |
