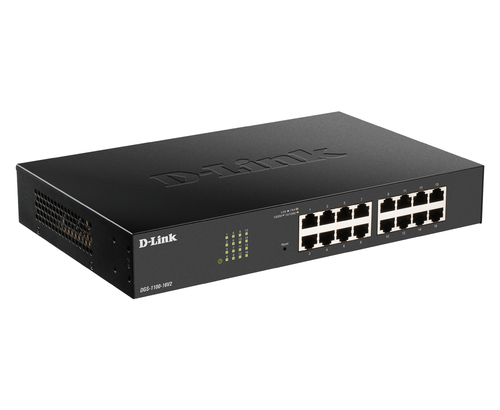

Powerful Switching for your Business
The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.
Gigabit Ethernet Speeds
Take your Ethernet speeds to the next level with Gigabit Connectivity
Cutting Edge Green Technology
Innovative D-Link Green power saving features keep your budget in check
Manage Anywhere, Anytime
Remote setup & management is easy, and can be done from anywhere.
Easy to Use & Easy to Install
D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.
VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.
For Voice
If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.
For Surveillance
If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.
Specifications
| Management features |
| System event log |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
| Installed SFP+ modules quantity |
0 |
| Installed SFP modules quantity |
0 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Network |
| Number of VLANs |
128 |
| Virtual LAN features |
Port-based VLAN, Voice VLAN |
| VLAN support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Broadcast storm control |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Flow control support |
Yes |
| Head-of-line (HOL) blocking |
Yes |
| Link aggregation |
Yes |
| Rate limiting |
Yes |
| Spanning tree protocol |
Yes |
| Full duplex |
Yes |
| Port mirroring |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 10BASE-TX, 1000BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission |
| Packet buffer memory |
4.1 MB |
| Jumbo frames |
9216 |
| Jumbo frames support |
Yes |
| Number of queues |
4 |
| Store-and-forward |
Yes |
| Forwarding rate |
23.81 Mpps |
| Switching capacity |
32 Gbit/s |
| MAC address table |
8000 entries |
| Security |
| Queue scheduling algorithms |
SPQ, Weighted Round Robin (WRR) |
| Security algorithms |
SNMP, SSL/TLS |
| IGMP snooping |
Yes |
| DHCP features |
DHCP client |
| Multicast features |
| Multicast support |
Yes |
| Design |
| LED indicators |
Yes |
| Product colour |
Black |
| Rack mounting |
Yes |
| Performance |
| Mean time between failures (MTBF) |
710519 h |
| Fanless |
Yes |
| Noise level |
0 dB |
| Flash memory |
16 MB |
| Memory type |
DRAM |
| Processor frequency |
125 MHz |
| Built-in processor |
Yes |
| Power |
| Power consumption (max) |
10.1 W |
| AC input voltage |
100 - 240 V |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Heat dissipation |
34.46 BTU/h |
| Operating temperature (T-T) |
-5 - 50 °C |
| Operating altitude |
0 - 2000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
-5 - 50 °C |
| Weight & dimensions |
| Weight |
1.27 kg |
| Height |
44 mm |
| Depth |
180 mm |
| Width |
280 mm |
| Certificates |
| Certification |
EMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC cUL, CE LVD, CB, BSMI, CCC |
