Slim, Low-Profile Design
Allowing the switch to be placed on the desktop or mounted on the wall
High-Speed Gigabit Networking
Connect up to 16 devices for fast file transfers and smooth media streaming
Silent Operation
Fanless design means the switch is virtually silent when in use
Energy Efficient
Integrated energy-saving technology to reduce power usage automatically
Connect More, Connect Faster

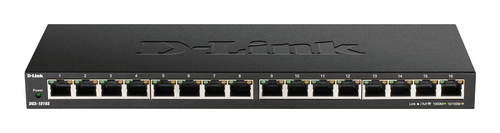

The 16-Port Gigabit Unmanaged Switch is ideal for homes and small-to-medium-sized businesses looking for a quick and easy way to upgrade or expand their network. Its slim, low-profile design means it can be placed on the desktop or mounted on the wall. Simple to set up with no software or configuration needed.
Silent and built to last
Metal casing with a fanless design not only means silent operation but also reduces energy usage and enhances reliability.
Visual Cable Diagnostics
LEDs on each port allow you to quickly see when something is wrong with the connection.
Good for your wallet, great for the planet
With its integrated power-saving technologies, the switch automatically reduces power consumption when a low-traffic or idle port is detected. It can also detect when a shorter network cable is connected to use less power on that port.
Specifications
| Management features |
| Quality of Service (QoS) support |
Yes |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Installed SFP+ modules quantity |
0 |
| Installed SFP modules quantity |
0 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Network |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Cable length detection |
Yes |
| Flow control support |
Yes |
| Full duplex |
Yes |
| Half duplex |
Yes |
| Copper ethernet cabling technology |
1000BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.1p, IEEE 802.3az, IEEE 802.3x |
| Data transmission |
| Packet buffer memory |
0.512 MB |
| Packet forwarding rate (1 Gbps) |
1488000 pps |
| Packet forwarding rate (10 Mbps) |
14880 pps |
| Packet forwarding rate (100 Mbps) |
148800 pps |
| Jumbo frames |
9216 |
| Jumbo frames support |
Yes |
| Number of queues |
8 |
| Store-and-forward |
Yes |
| Switching capacity |
32 Gbit/s |
| MAC address table |
8000 entries |
| Design |
| Safety |
LVD |
| LED indicators |
Activity, Link, Power, Speed |
| Product colour |
Black |
| Performance |
| Mean time between failures (MTBF) |
564658 h |
| Fanless |
Yes |
| Plug and Play |
Yes |
| Power |
| Power consumption (max) |
8.89 W |
| Input current |
1 A |
| DC input voltage |
12 V |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Heat dissipation |
30.32 BTU/h |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Weight |
770 g |
| Height |
25 mm |
| Depth |
110 mm |
| Width |
280 mm |
| Certificates |
| Certification |
CE, FCC, ICES 003, RCM |
