Tired of slow, unreliable connections that choke your video streams and drop VoIP calls? You need a true Gigabit backbone that powers cameras, phones and APs without a hitch. The switch gives you Gigabit speed and PoE power in a single, managed box, so your network stays fast and simple.

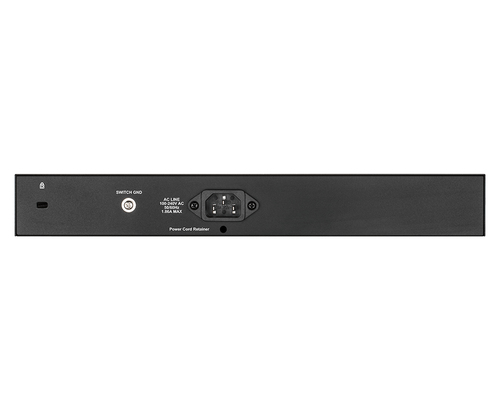

D-Link (DGS-1210-10MP/E), L2, Gigabit PoE, Managed Switch
This L2 managed switch is built for small to medium offices that need reliable layer-2 switching, PoE power for up to 130 W, and optional static routing. It fits neatly on a rack or desk and lets you separate traffic with VLANs.
Benefits
- Keeps your cameras and phones alive with up to 130 W PoE.
- Lets you split traffic into 256 VLANs for security.
- Handles up to 20 Gbit/s switching capacity, so no bottlenecks.
- Provides static routing to connect separate network segments.
- Offers built-in surveillance mode for instant camera view.
- Includes dual software images for risk-free upgrades.
Features
- 8 PoE+ ports, 130 W total budget
- 2 SFP fibre uplink slots
- 8 standard Ethernet ports
- Layer-2 switching with LACP link aggregation
- Static routing for up to 256 routes
- IGMP snooping and ACL security
- Fanless design with smart energy saving
- 32 MB flash, 128 MB RAM
Specifications
| Management features |
| Cloud-managed |
No |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
| Installed SFP modules quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
| Number of VLANs |
256 |
| VLAN support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Broadcast storm control |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Flow control support |
Yes |
| Head-of-line (HOL) blocking |
Yes |
| Link aggregation |
Yes |
| Spanning tree protocol |
Yes |
| Full duplex |
Yes |
| Half duplex |
Yes |
| Port mirroring |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission |
| Packet buffer memory |
4.1 MB |
| Jumbo frames |
10000 |
| Jumbo frames support |
Yes |
| Number of static routes |
256 |
| Static route |
Yes |
| Forwarding rate |
14.88 Mpps |
| Switching capacity |
20 Gbit/s |
| MAC address table |
8000 entries |
| Security |
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| Design |
| LED indicators |
Yes |
| Product colour |
Black, Grey |
| Performance |
| Mean time between failures (MTBF) |
1274005 h |
| Flash memory |
32 MB |
| Internal memory |
128 MB |
| Power |
| Power consumption (max) |
9.4 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Number of power supply units |
1 |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
130 W |
| Power over Ethernet (PoE) ports quantity |
8 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Heat dissipation |
507.23 BTU/h |
| Operating temperature (T-T) |
-5 - 50 °C |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
-5 - 50 °C |
| Weight & dimensions |
| Weight |
1.77 kg |
| Height |
44 mm |
| Depth |
180 mm |
| Width |
330 mm |
| Sustainability |
| Sustainability compliance |
Yes |
| Certificates |
| Compliance certificates |
BSMI, CB, CCC, cUL |
