Build a reliable industrial network with the D-Link DIS-210G-06, an Industrial 4-Port 1G + 2-Port 1G SFP L2+ Managed Switch designed for Gigabit Ethernet and fiber connectivity. It provides four 10/100/1000BASE-T Ethernet ports and two SFP ports, giving you flexible copper and fiber connections in one compact device. With a 12 Gbps switching capacity, dual-input 12 to 55 VDC power, IP40-rated metal casing, and an operating temperature range from -40 to 75°C, it is built for demanding industrial network environments.

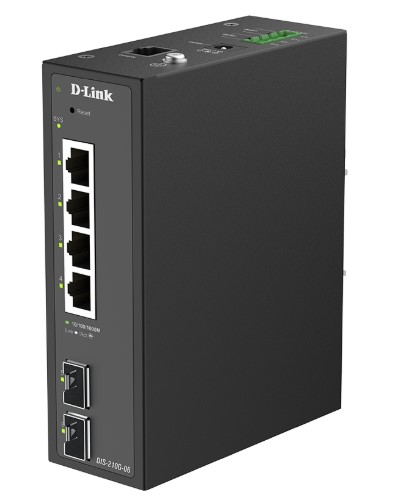

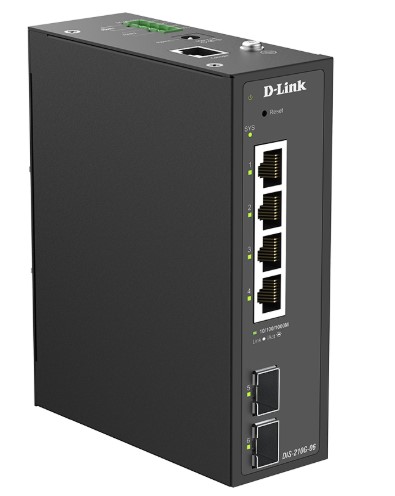

D-Link DIS-210G-06, Industrial 4-Port 1G + 2-Port 1G SFP L2+ Managed Switch
Industrial networks need dependable connectivity that can operate across different environments while supporting both copper and fiber links. The D-Link DIS-210G-06 provides four Gigabit Ethernet ports and two Gigabit SFP ports, allowing you to connect a mix of twisted-pair and fiber network devices. Its store-and-forward transmission method, 8K MAC address table, and 8.92 Mpps forwarding rate support efficient network traffic handling. Dual DC power input also provides a practical power connection for industrial installations.
Benefits
-
Flexible connectivity: Four Gigabit Ethernet ports and two SFP ports let you connect copper and fiber devices through one switch.
-
Built for harsh conditions: The -40 to 75°C operating temperature range supports installations exposed to wide temperature changes.
-
Industrial power support: Dual 12 to 55 VDC terminal block input suits industrial power environments.
-
Efficient traffic handling: The 12 Gbps switching capacity helps handle network traffic across connected devices.
-
Space-saving installation: The compact DIN rail design makes it easier to install the switch inside industrial cabinets.
Usages
The D-Link DIS-210G-06 can be used in industrial Ethernet networks where reliable copper and fiber connectivity is required. It is suitable for connecting industrial devices, network equipment, and fiber links through its four 10/100/1000BASE-T ports and two SFP ports. The DIN rail installation and IP40-rated metal casing make it practical for industrial cabinets and network control environments. Its wide operating temperature range supports deployment in locations with demanding temperature conditions.
Key Features
-

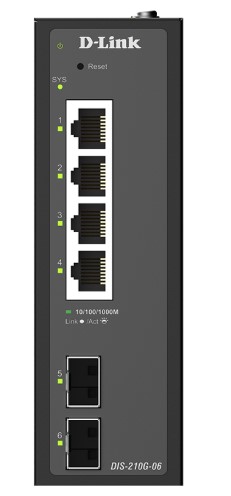

4 x 10/100/1000BASE-T Ethernet ports
-
2 x SFP ports
-
RJ-45 console port
-
12 Gbps switching capacity
-
8K MAC address table
-
8.92 Mpps forwarding rate
-
4.1 MB packet buffer memory
-
Dual 12 to 55 VDC power input
-
IP40-rated metal casing
-
DIN rail installation
-
-40 to 75°C operating temperature
-
Auto MDI/MDIX on twisted-pair ports
Specifications
| Model Information |
|
| Model Number |
DIS-210G-06 |
| Hardware Version |
A1 |
| Interfaces |
|
| Ethernet Ports |
4 x 10/100/1000BASE-T |
| SFP Ports |
2 x SFP ports |
| Console Port |
RJ-45 |
| Port Functions |
|
| Ethernet |
IEEE 802.3 for Ethernet |
| Fast Ethernet |
IEEE 802.3u for Fast Ethernet |
| Gigabit Fiber |
IEEE 802.3z for Gigabit fiber |
| Energy-Efficient Ethernet |
IEEE 802.3az Energy-Efficient Ethernet (EEE) |
| Media Interface Exchange |
|
| MDI/MDIX |
Auto MDI/MDIX adjustment for all twisted-pair ports |
| Performance |
|
| Switching Capacity |
12 Gbps |
| Transmission Method |
Store-and-forward |
| MAC Address Table |
8K |
| Maximum 64 Byte Packet Forwarding Rate |
8.92 Mpps |
| Packet Buffer Memory |
4.1 MB |
| Flash Memory |
16 MB |
| DRAM Size |
128 MB |
| LEDs |
|
| Power (per device) |
√ |
| Link/Active/Speed (per RJ-45 port) |
√ |
| Link/Active/Speed (per SFP port) |
√ |
| Physical |
|

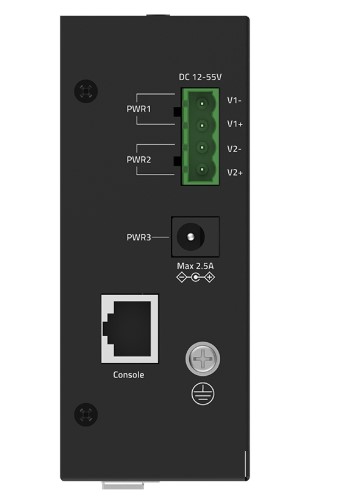

| Power Input |
12 to 55 VDC terminal block, dual input |
| Maximum Power Consumption |
Maximum: 6.3 W |
| Standby Power Consumption |
Maximum: 2.49 W |
| Heat Dissipation |
21.5 BTU/hr |
| MTBF |
> 200,000 hours |
| Environmental |
|
| Operating Temperature |
-40 to 75°C (-40 to 167°F) |
| Storage Temperature |
-40 to 85°C (-40 to 185°C) |
| Operating Humidity |
5% to 95% relative humidity |
| Storage Humidity |
5% to 95% relative humidity |
| Mechanical |
|
| Material |
IP40-rated metal casing |
| Installation |
DIN rail |
| Dimensions (L x W x H) |
138 x 108 x 44 mm (5.43 x 4.25 x 1.73 in) |
| Weight |
0.61 kg (1.34 lbs) |
