D-Link DIS-310G-24X is a 24-port SFP+ L3 managed switch designed for high-speed Ethernet and fiber networking environments that need strong switching performance and flexible port connectivity. With 16 GE LAN ports, 4 x 1G SFP ports, and 4 x SFP+ ports, it provides multiple interface options for connecting network devices and fiber links. The 120 Gbps switching capacity and 89.82 Mpps packet forwarding rate support efficient data movement across demanding network infrastructures.

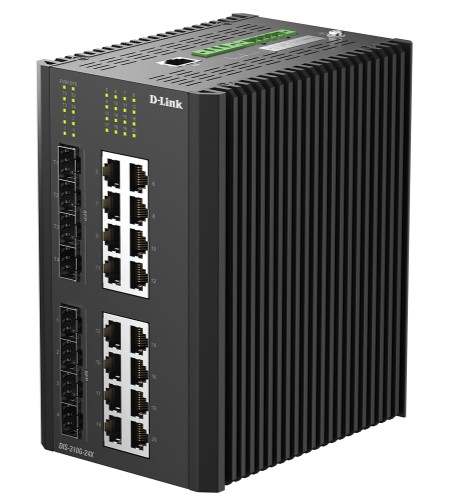

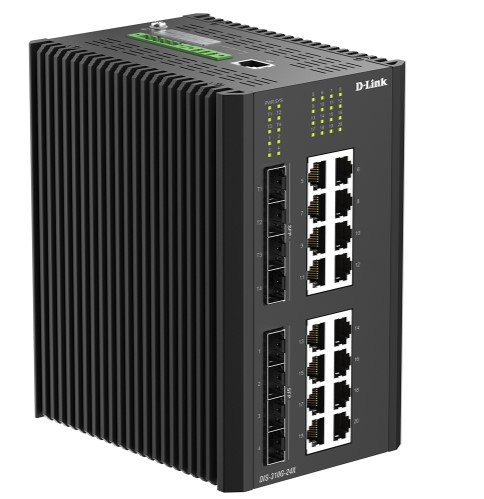

D-Link DIS-310G-24X 24-Port SFP+ L3 Managed Switch
Modern industrial and business networks need reliable connectivity across copper and fiber devices. The D-Link DIS-310G-24X provides a practical solution with 16 GE LAN ports, 4 x 1G SFP ports, and 4 x SFP+ ports in one switch. Its IEEE 802.3, IEEE 802.3ab, IEEE 802.3z, and IEEE 802.3az support enables Ethernet, Gigabit Ethernet, Gigabit fiber, and Energy-Efficient Ethernet connectivity. Store-and-forward transmission helps manage packet forwarding, while the 16K MAC address table supports network device addressing.
Benefits
-
Multiple copper and fiber interfaces provide flexible network connectivity.
-
120 Gbps switching capacity supports high-volume network traffic.
-
89.82 Mpps forwarding rate enables efficient packet processing.
-
Dual 48 to 60 VDC power input supports the specified power configuration.
-
DIN rail installation provides a practical mounting option.
Usages
The D-Link DIS-310G-24X can be used where a network requires a combination of GE LAN, 1G SFP, and SFP+ connections. The 16 GE LAN ports can connect compatible Ethernet devices, while the 1G SFP and SFP+ ports provide fiber and high-speed interface options within the network. This makes the switch suitable for network infrastructures that use different connection types in the same installation.
Its DIN rail installation and IP40-rated metal casing make the switch suitable for installations where DIN rail mounting is required. The operating temperature range of -40 to 75°C allows operation across a wide specified temperature range. The dual-input 48 to 60 VDC terminal block provides the stated power connection for the device.
Key Features
-

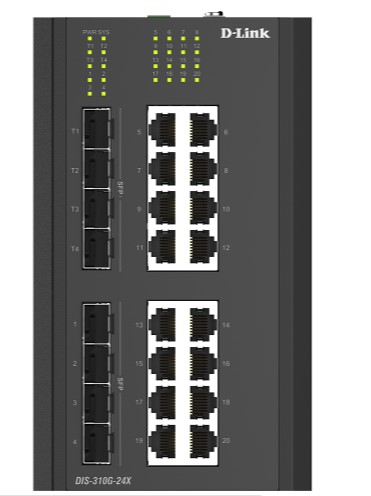

24 total network ports
-
16 x GE LAN ports
-
4 x 1G SFP ports
-
4 x SFP+ ports
-
RJ-45 console port
-
120 Gbps switching capacity
-
89.82 Mpps forwarding rate
-
16K MAC address table
-
1.5 MB packet buffer memory
-
48 to 60 VDC dual input
-
DIN rail installation
-
IP40-rated metal casing
Specifications:
| Hardware |
|
| Hardware Version |
A1 |
| Interfaces |
|
| GE LAN Ports |
16 x GE LAN ports |
| 1G SFP Ports |
4 x 1G SFP ports |
| SFP+ Ports |
4 x SFP+ ports |
| Console Port |
RJ-45 |
| Port Functions |
|
| Ethernet |
IEEE 802.3 for Ethernet |
| Gigabit Ethernet |
IEEE 802.3ab for Gigabit Ethernet |
| Gigabit Fiber |
IEEE 802.3z for Gigabit fiber |
| Energy-Efficient Ethernet |
IEEE 802.3az Energy-Efficient Ethernet (EEE) |
| Media Interface Exchange |
|
| MDI/MDIX |
Auto MDI/MDIX adjustment for all twisted-pair ports |
| Performance |
|
| Switching Capacity |
120 Gbps |
| Transmission Method |
Store-and-forward |
| MAC Address Table |
16 K |
| Maximum 64 Byte Packet Forwarding Rate |
89.82 Mpps |
| Packet Buffer Memory |
1.5 MB |
| Flash Memory |
16 MB |
| DRAM Size |
256 MB |
| LEDs |
|
| Power (per device) |
√ |
| Link/Active/Speed (per RJ-45 port) |
√ |
| Link/Active/Speed (per SFP/SFP+ port) |
√ |
| Physical |
|
| Power Input |

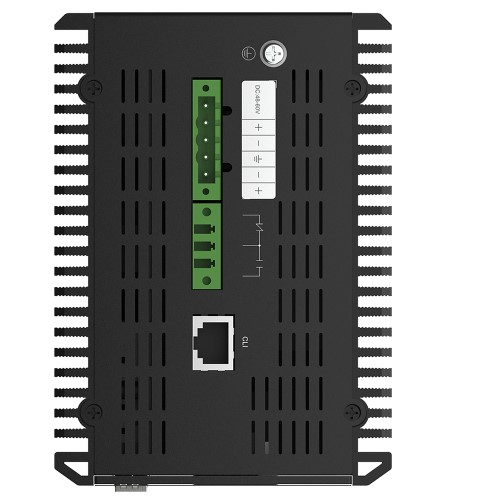

48 to 60 VDC terminal block, dual input |
| Maximum Power Consumption |
Maximum: 27.35 W |
| Standby Power Consumption |
Maximum: 14.28 W |
| Acoustics |
-- |
| Heat Dissipation |
93.32 BTU/h |
| MTBF |
> 200,000 hours |
| Environmental |
|
| Operating Temperature |
-40 to 75°C (-40 to 167°F) |
| Storage Temperature |
-40 to 85°C (-40 to 185°C) |
| Operating Humidity |
5% to 95% relative humidity |
| Storage Humidity |
5% to 95% relative humidity |
| Mechanical |
|
| Material |
IP40-rated metal casing |
| Installation |
DIN rail |
| Dimensions (W x D x H) |
100 x 140 x 170 mm (3.94 x 5.51 x 6.69 in) |
| Weight |
2.2 kg (4.85 lbs) |
