Darveen DBC-3200-1195G7, Intel Core i7-1195G7, DIN-Rail Industrial PC

When you need a compact industrial computer that can be installed directly inside a control cabinet or machine enclosure, a standard desktop PC can take up too much space and may not provide the required industrial connectivity. A DIN-Rail industrial PC is useful when you need reliable computing, multiple serial ports, dual Gigabit Ethernet, flexible storage, wireless expansion, and a wide 9-36VDC power input in a compact system.

Darveen DBC-3200-1195G7, Intel Core i7-1195G7, DIN-Rail Industrial PC

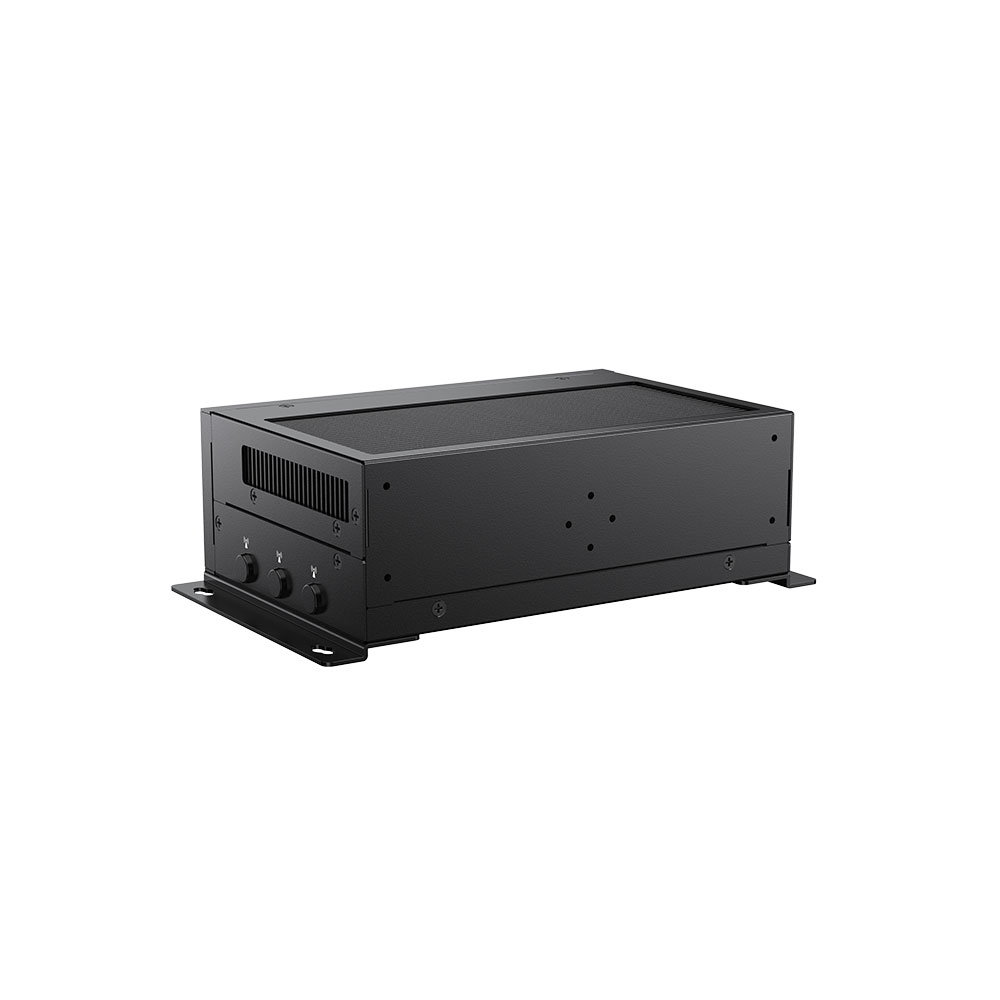

The Darveen DBC-3200-1195G7 is a compact DIN-Rail industrial PC designed for industrial computing, control, data processing, and connected automation systems. Its Intel Core i7-1195G7 processor provides the computing capability needed for demanding industrial applications while maintaining a 15W CPU TDP. The system supports up to 32GB of DDR4 3200 MHz SO-DIMM memory, giving users flexibility for applications that require more working memory.

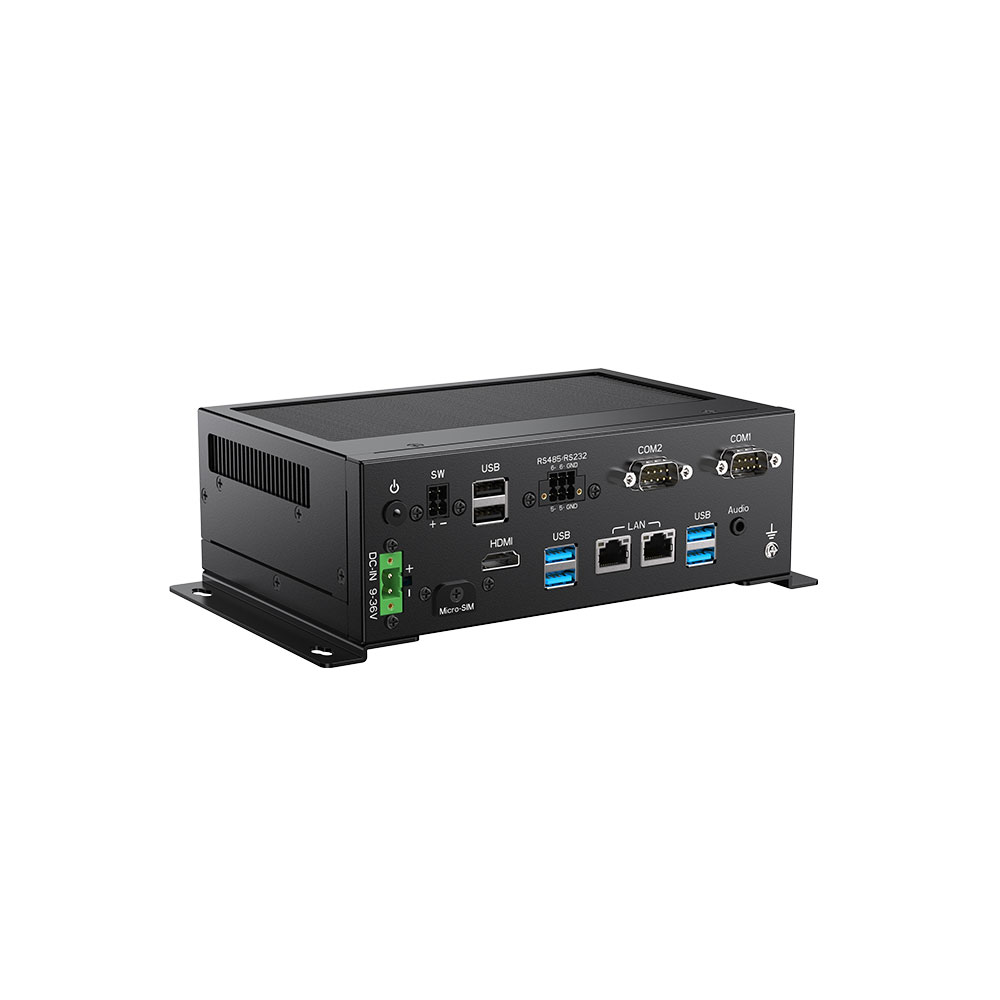

For storage, the system provides a 2.5″ SATA HDD bay and an M.2 2280 SATA slot, allowing storage to be configured according to the application. Its six USB ports provide connections for industrial peripherals and accessories, while four COM ports can be configured as RS-232 or a combination of RS-232 and RS-485 for connecting serial devices. Two Intel I210AT Gigabit Ethernet ports also support network connectivity for industrial equipment and systems.

The DBC-3200-1195G7 is also designed for applications that need wireless communication and positioning options. Its Mini PCIe expansion slot supports Wi-Fi, cellular, Bluetooth, and GNSS configurations, while the SIM card slot and three SMA antenna holes provide the physical interfaces needed for compatible wireless modules. HDMI provides display connectivity, and audio input and output support additional audio peripherals.

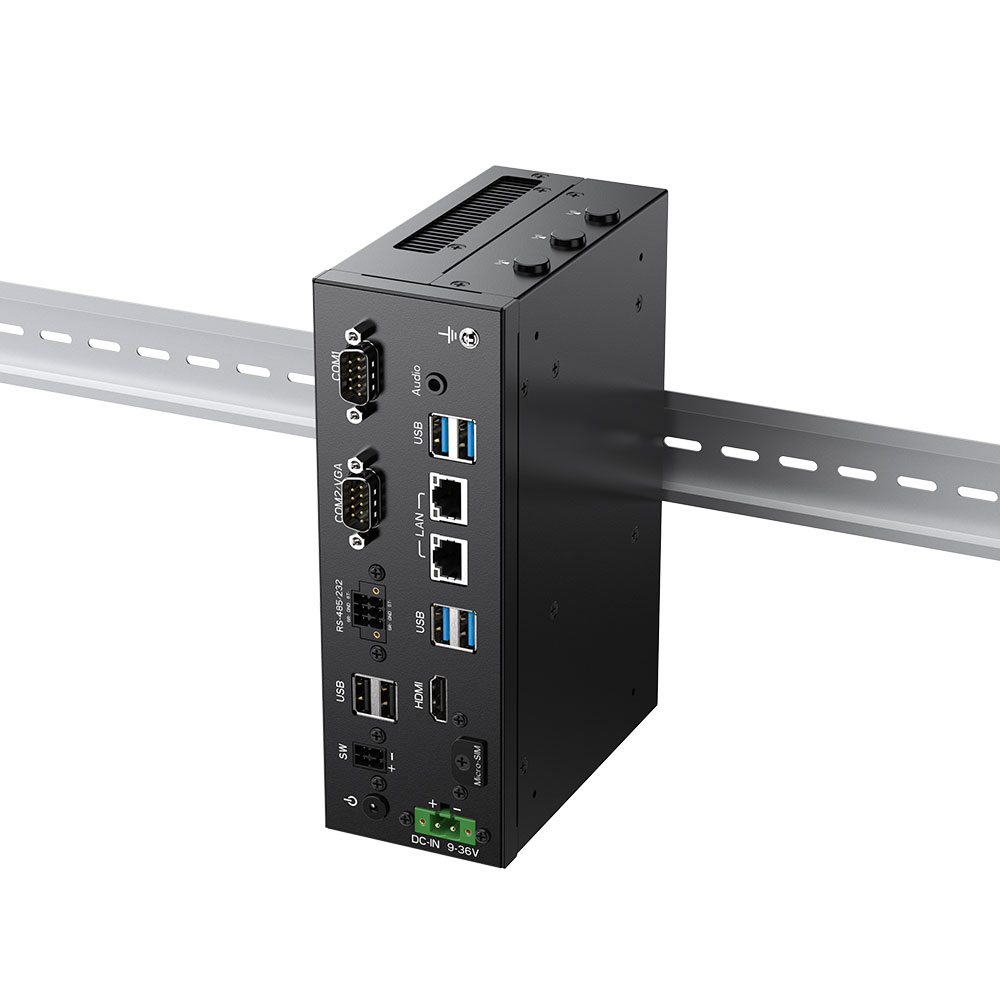

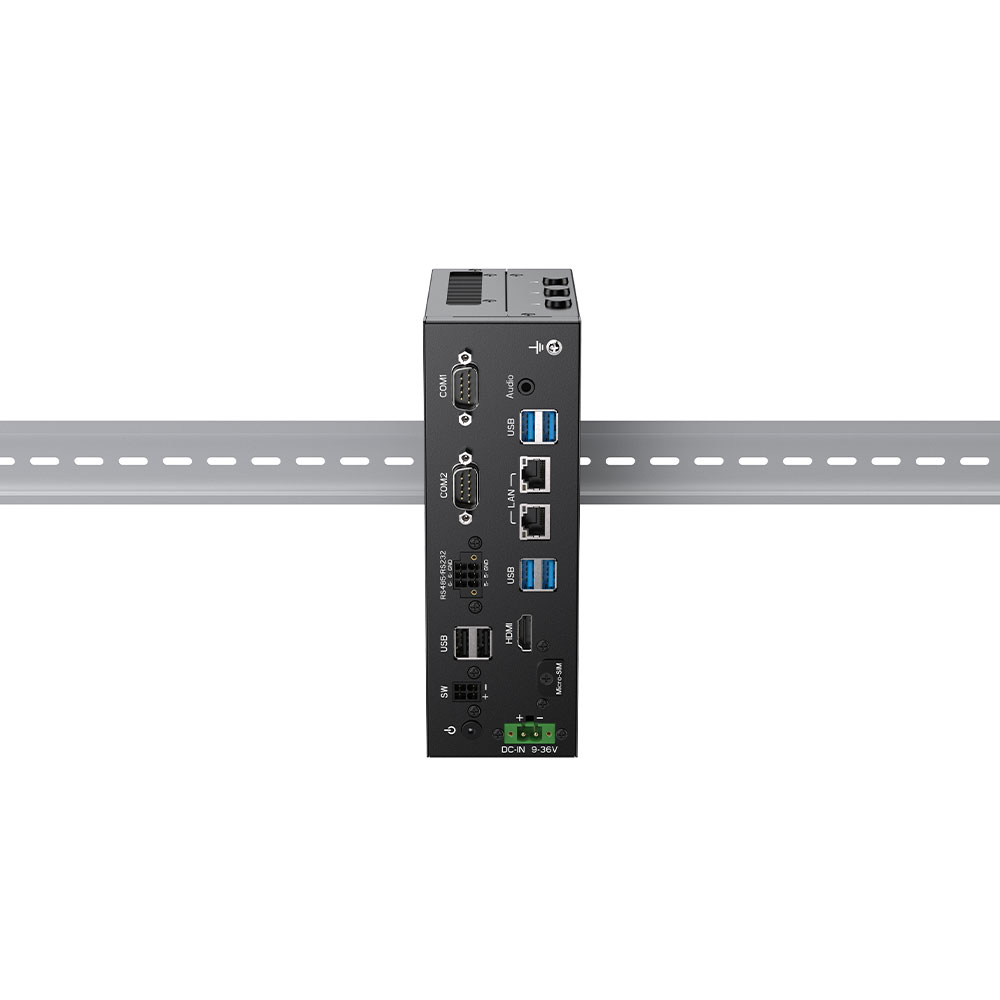

Installation is straightforward because the system supports both DIN-Rail and wall mounting. The aluminum alloy construction and compact 176x 120x 60mm size make it suitable for control cabinets and other space-constrained industrial installations. The 9-36VDC input and AT/ATX power mode provide flexibility when integrating the computer into industrial power systems, while the remote power control and programmable watchdog timer support practical system management.

The computer supports Windows 10, Windows 11, and Ubuntu, making it suitable for different software environments. Its -10 to 60℃ operating temperature range and 10% to 95% non-condensing relative humidity rating support use in industrial environments, while CE and FCC Class A certification helps with deployment in compatible industrial systems. Typical applications include industrial automation, machine control, edge computing, industrial networking, data acquisition, and connected control systems.

Key features

• Intel ® Core™ i7-1195G7 processor with 15W CPU TDP
• 1x DDR4 3200 MHz SO-DIMM up to 32GB
• 1x 2.5″ SATA HDD and 1x M.2 2280 Sata storage
• 4x COM with RS-232 and RS-485 options
• 2x RJ45 GbE Intel® I210AT
• Full length Mini PCIe for Wi-Fi, Cellular, Bluetooth, and GNSS
• 9-36VDC input with AT/ATX power mode
• DIN-Rail/Wall mount aluminum alloy design
