Darveen MP-270 Intel Core i5-10210U 27" Marine Panel PC

Darveen MP-270 Intel Core i5-10210U 27" Marine Panel PC

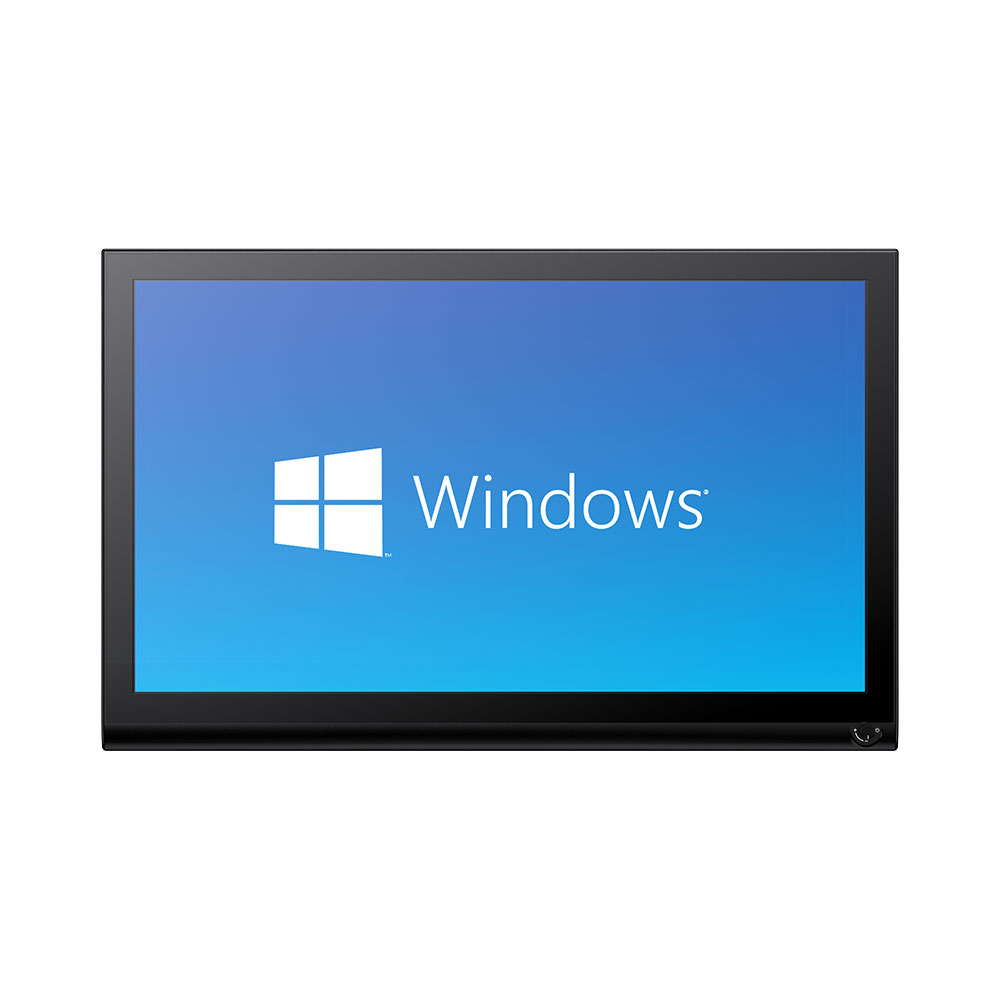

The Darveen MP-270 is a 27-inch Marine Panel PC designed for marine control systems, monitoring stations, navigation interfaces, and industrial applications that require a large touch display. Its multi-touch capacitive TFT-LCD screen provides an easy-to-use interface while the panel-mounted design supports integration into marine workstations and control panels.

Powered by an Intel Core i5-10210U processor at 1.6 GHz, the MP-270 provides the processing capability required for marine software, monitoring applications, control interfaces, and connected system workloads. The system supports DDR4 2666 or DDR4 3200 SO-DIMM memory configurations with up to 64GB, depending on the configuration.

The 27-inch display provides 1920 x 1080 resolution, 300 nits luminance, a 1000:1 contrast ratio, 16.7 M colors, and 89-degree viewing angles in all directions. The multi-touch capacitive screen has 87% transmittance and ≥7H surface hardness for practical operation in marine environments.

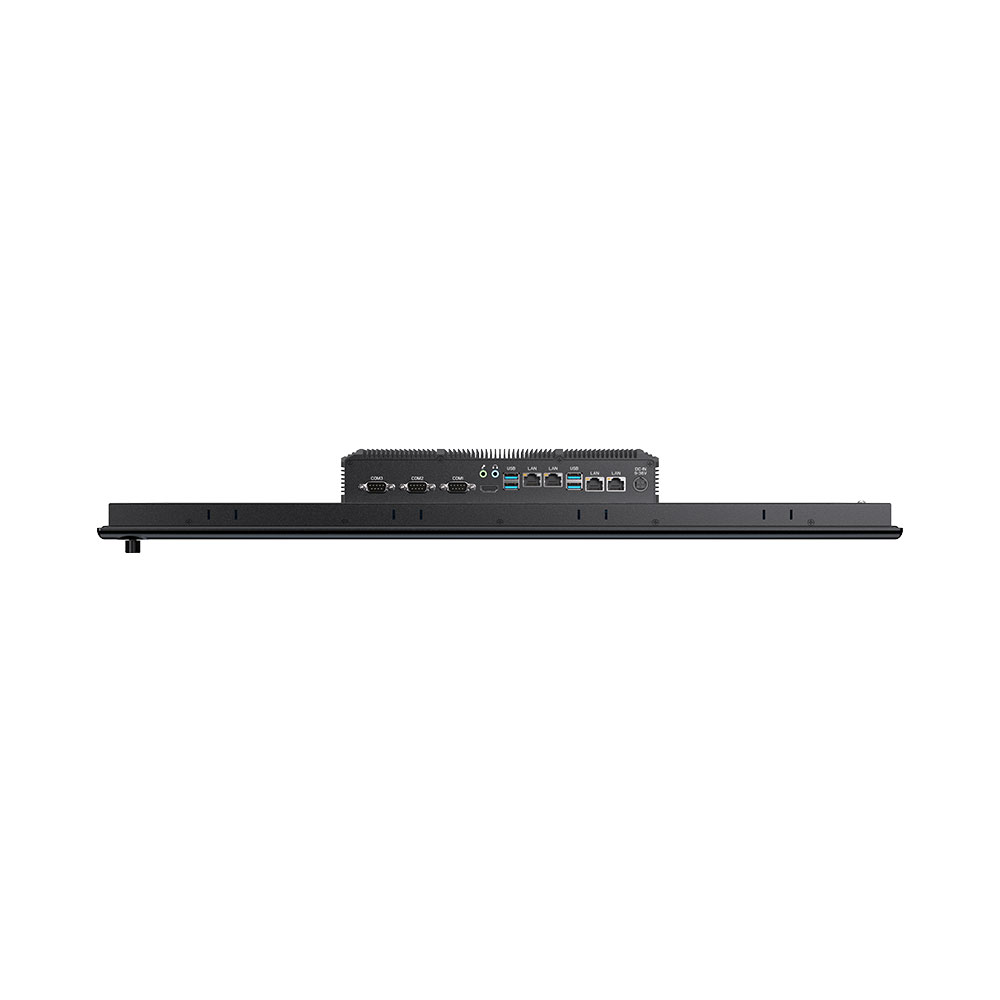

The MP-270 provides flexible connectivity through USB, COM, GbE LAN, HDMI, VGA, and optional wireless communication interfaces. Depending on the configuration, it supports Mini PCIe or M.2 expansion for Wi-Fi, cellular, and Bluetooth connectivity, along with storage options including 2.5-inch SATA HDD/SSD, mSATA SSD, and M.2 2280 NVMe SSD.

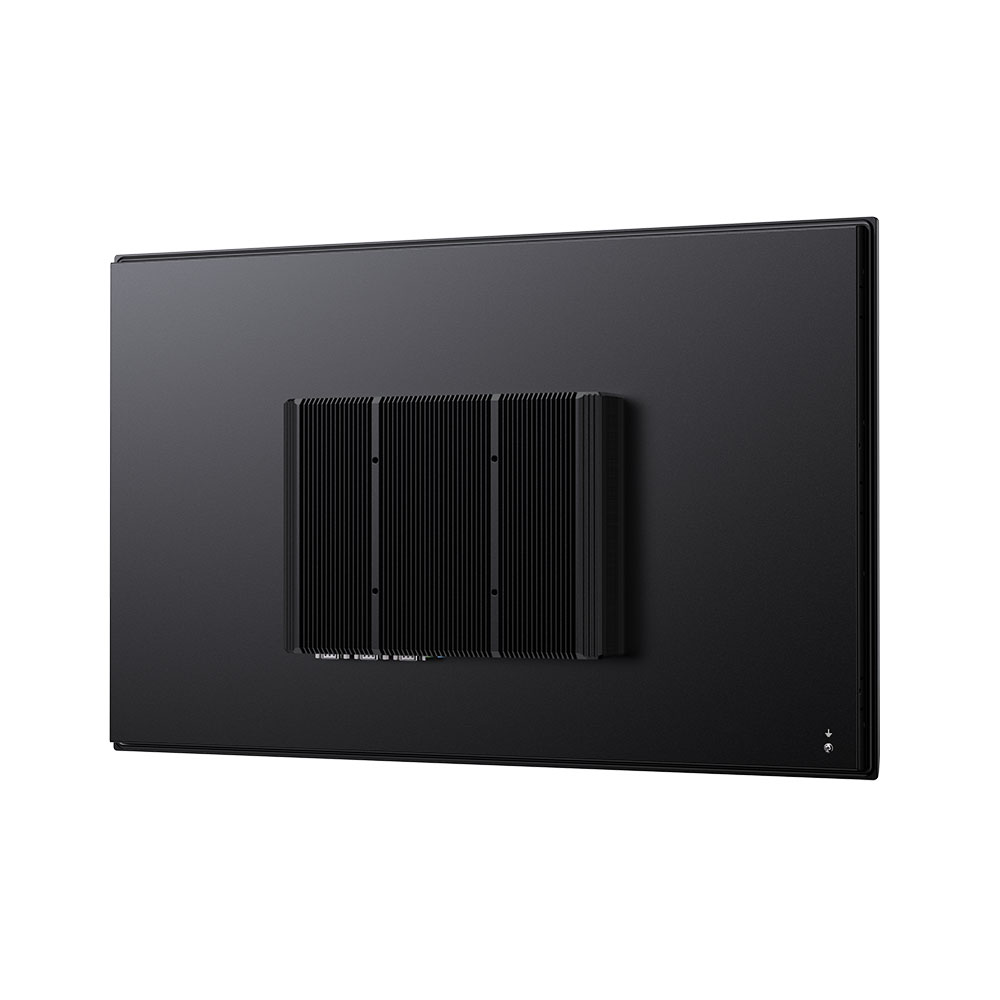

Designed for installation flexibility, the MP-270 supports panel mounting, a wall mount bracket, and VESA 100 mounting. Its aluminum alloy panel, all-metal chassis, 9 to 36VDC input, IP65-compliant front panel, and -10 to 50°C operating temperature range make it suitable for marine monitoring, vessel control, industrial automation, and other demanding installation environments.

Key Features

• 27-inch multi-touch capacitive TFT-LCD display

• Intel Core i5-10210U processor at 1.6 GHz

• Up to 64GB DDR4 SO-DIMM memory

• 1920 x 1080 resolution with 300 nits luminance

• USB, COM, GbE LAN, HDMI, and VGA connectivity

• Mini PCIe and M.2 expansion options

• 9 to 36VDC input with 27 W or 29 W power consumption

• IP65-compliant front panel with aluminum alloy panel and all-metal chassis

Specifications
