Darveen NBC-1360-1195G7, Intel Core I7-1195G7 Fanless Box Computer

When industrial equipment needs a compact computer that can run continuously without relying on a cooling fan, a conventional PC may introduce extra moving parts and take up valuable cabinet or machine space. A fanless box computer is a practical choice when the system needs reliable computing, multiple industrial interfaces, network connectivity, flexible storage, and a compact enclosure for automation and edge applications.

Darveen NBC-1360-1195G7, Intel Core I7-1195G7 Fanless Box Computer

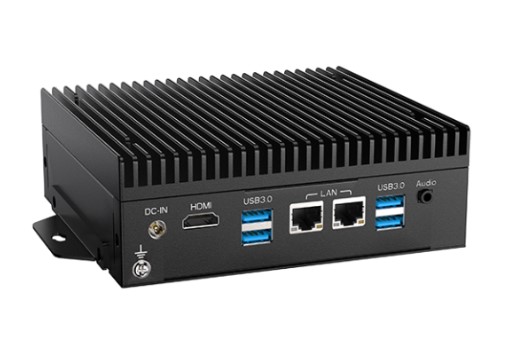

The Darveen NBC-1360-1195G7 is a compact fanless industrial box computer built around the Intel Core i7-1195G7 processor. Its fanless design makes it suitable for installations where reducing moving components is important, while the 15W CPU TDP provides a balance between computing capability and power requirements. The system supports up to 32GB of DDR4 3200 MHz SO-DIMM memory for industrial software, data processing, and edge computing workloads.

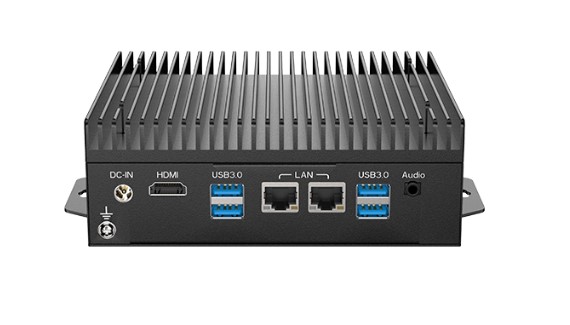

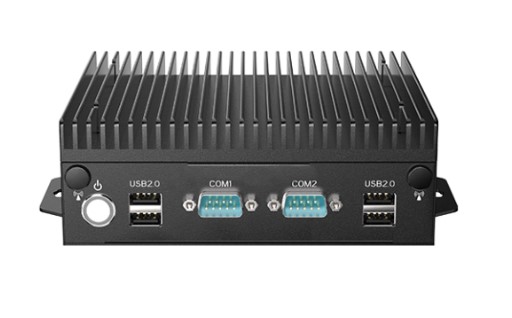

The computer provides flexible storage through a 2.5″ SATA HDD and an M.2 2280 SATA slot. Eight USB ports allow multiple peripherals to be connected, while two COM ports support RS-232/485 communication with compatible industrial devices. Two Intel I210AT Gigabit Ethernet ports provide network connectivity for industrial equipment, controllers, and connected systems, and HDMI provides a display connection for local monitoring or operation.

Wireless connectivity can also be added according to the required configuration. The full-length Mini PCIe expansion slot and M.2 2230 E-Key option support Wi-Fi, cellular, Bluetooth, and GNSS configurations, with optional expansion noted for the applicable interfaces. The internal SIM card slot and SMA antenna holes support compatible wireless communication setups, making the system suitable for connected industrial and edge applications.

The compact 152x 138x 53mm aluminum alloy enclosure allows the computer to fit into space-constrained installations. Its 12VDC input and AT/ATX power mode provide integration flexibility, while the programmable watchdog timer can support automatic system reset functions when required. The computer also includes microphone input and line output for applications that require audio connectivity.

The NBC-1360-1195G7 supports Windows 10/11 and Ubuntu, allowing it to work with different industrial software environments. Its -10 to 60℃ operating temperature range and 10% to 95% non-condensing relative humidity rating support use in industrial environments. With its compact fanless construction, storage expansion, industrial I/O, dual Gigabit Ethernet, and optional wireless capabilities, it can be used for industrial automation, machine control, edge computing, industrial networking, monitoring, and data acquisition applications.

Key features

• Intel ® Core™ i7-1195G7 processor with 15W CPU TDP
• Fanless aluminum alloy box computer design
• 1x DDR4 3200 MHz SO-DIMM up to 32GB
• 1x 2.5″ SATA HDD and 1x M.2 2280 Sata
• 2x COM with RS-232/485 communication
• 2x RJ45 GbE Intel® I210AT
• Full length Mini PCIe and optional wireless expansion
• Compact 152x 138x 53mm enclosure

Specifications
