Tired of missing scans and slow checkout lines? The Datalogic Gryphon GM4500-BK-HD-433 1D/2D 1280x800 Handheld Barcode Reader is built to end that frustration. It reads every barcode fast, even the tiny ones, so you can keep your workflow moving. If you need reliable scanning in a busy store, a warehouse, or a hospital, this device gives you the speed and accuracy you have been looking for.

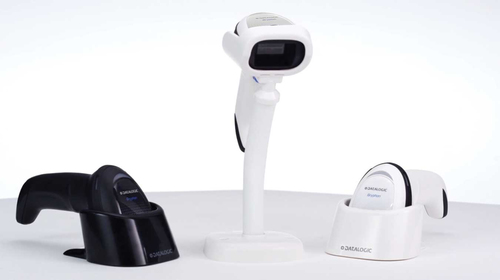

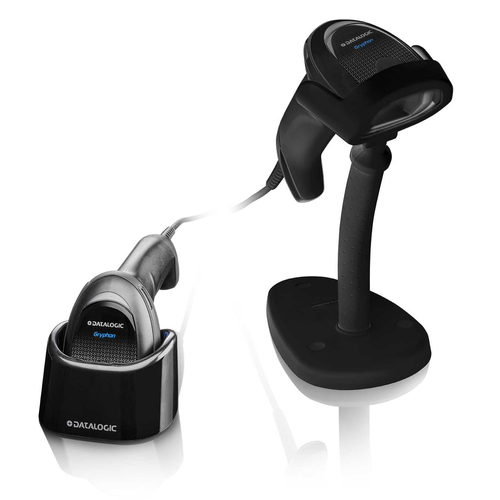

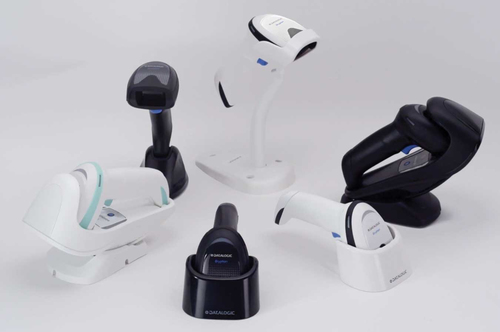

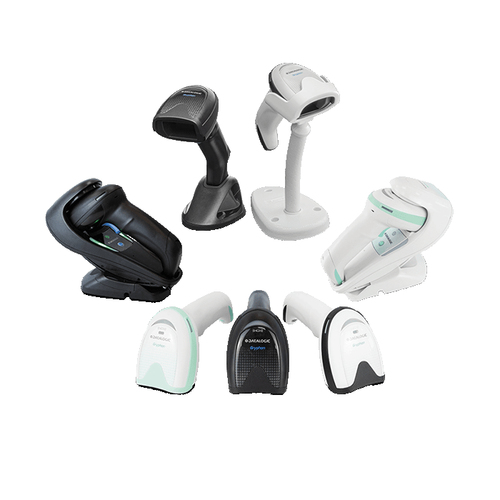

Datalogic Gryphon GM4500-BK-HD-433 1D/2D 1280x800 Handheld Barcode Reader
Many businesses lose time because scanners cannot read dense or damaged codes. That loss adds up in missed orders and unhappy customers. The Gryphon solves the problem by using a high-resolution 1280 x 800 sensor and warm-white illumination that works in bright light or low light. It switches automatically to hand-held mode when you pick it up, so you never have to change settings. The result is a smooth, error-free scanning experience that keeps your operation running.
Key Features
- 1280 x 800 megapixel sensor for crystal-clear reads.
- Warm-white illumination works in direct sunlight up to 100 000 lx.
- High-density (HD) optics read tiny, condensed codes and Dot codes.
- Motionix technology switches between stand and hand-held mode.
- 433 MHz wireless range up to 50 m with Bluetooth or STAR radio.
- Wireless charging cradle that also serves as a stand.
- IP52 rating protects against dust and water splashes.
- Lightweight 235 g design for comfortable handheld use.
- Battery: 3250 mAh LiPo, 4-hour charge, 4.5-14 V input.
Specifications
| Scanning |
| Yaw reading angle |
-65 - 65° |
| Pitch reading angle |
-65 - 65° |
| Tilt reading angle |
0 - 360° |
| Wavelength |
650 nm |
| Light levels (direct sunlight) |
0 - 100000 lx |
| Optical sensor resolution (W x H) |
1280 x 800 pixels |
| 2D (matrix & stacked) barcodes supported |
Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, MaxiCode, Micro QR Code, MicroPDF417, QR Code |
| Linear (1D) barcodes supported |
GS1 DataBar, GS1 DataBar Expanded, PDF417 |
| Sensor type |
Laser |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
| Operating frequency |
433 MHz |
| Wireless range |
50 m |
| Standard interfaces |
RF Wireless |
| Connectivity technology |
Wireless |
| Performance |
| International Protection (IP) code |
IP52 |
| Product colour |
Black |
| Power |
| Input voltage |
4.5 - 14 V |
| Charging time |
4 h |
| Number of reads per charge |
80000 |
| Battery voltage |
12 V |
| Battery capacity |
3250 mAh |
| Battery technology |
Lithium Polymer (LiPo) |
| Power source type |
Battery |
| Weight & dimensions |
| Weight |
235 g |
| Height |
166 mm |
| Depth |
68 mm |
| Width |
109 mm |
| Operational conditions |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Battery |
| Battery capacity |
3250 mAh |
| Technical details |
| Compliance certificates |
RoHS |
