Capture every moment in crystal clear 4K without missing a beat. The DataVideo 4K Tracking PTZ Camera 8.5MP 3840x2160 60fps 12x Zoom H.264 H.265 is a professional-grade camera that follows moving subjects automatically. If you have struggled with shaky manual pans or lost focus during live events, this camera gives you smooth, reliable tracking so your audience never looks away.

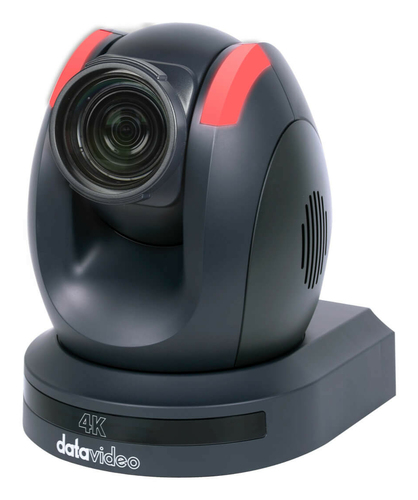

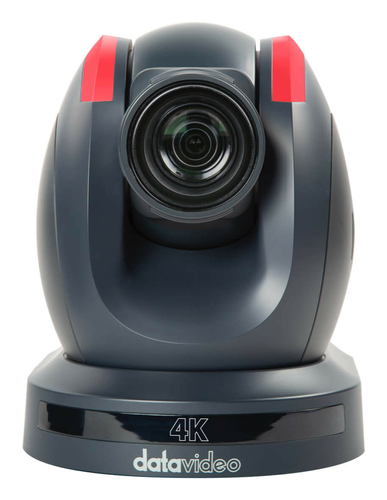

DataVideo 4K Tracking PTZ Camera 8.5MP 3840x2160 60fps 12x Zoom H.264 H.265
Live productions often suffer from missed shots when the camera operator cannot keep up with fast movement. That problem hurts viewer engagement and can cost you repeat takes. DataVideo solves this by combining 4K resolution, 12x optical zoom, and intelligent auto-tracking in one unit. The camera locks onto a person or object, moves smoothly, and keeps the subject perfectly framed, letting you focus on content instead of camera control.
Benefits
- Automatic tracking saves you time and reduces operator fatigue.
- 4K 60 fps video delivers sharp, detailed images for any platform.
- 12x optical zoom lets you capture close-ups without losing quality.
- Dual streaming output lets you broadcast to two services at once.
- PoE power simplifies installation and reduces cable clutter.
Usages
The camera fits perfectly in a broadcast studio for news anchors, in a church for worship services, or in a classroom for remote learning. Sports venues use it to follow athletes on the field, while event producers rely on it for concerts and award shows. Any situation that needs hands-free, high-quality video can benefit from this PTZ solution.
Key Features
- 8.5 MP CMOS sensor with 0.5 lx low-light performance
- 3840 2160 resolution at 60 fps for smooth motion
- 12x optical and 16x digital zoom for versatile framing
- Smart PID algorithm adjusts pan, tilt and zoom speed automatically
- Supports H.264, H.265 and M-JPEG compression
- Simultaneous HDMI 2.0, 3G-SDI and IP outputs
- RS-422, VISCA over IP, DVIP and ONVIF control options
- Remote control with RMC-1AT IR controller and web UI
- Built-in tally lights for preview and program status
- Power over Ethernet (PoE) for easy mounting
- Wide 80 field of view captures large scenes
- S-shaped speed curve ensures fluid lens movement
Specifications
| Performance |
| Operating voltage |
12 V |
| Power consumption (typical) |
12 W |
| Minimum illumination |
0.5 lx |
| Noise reduction |
Yes |
| Signal-to-Noise Ratio (SNR) |
55 dB |
| Streaming capability |
Yes |
| White balance |
Auto, Indoor, Manual, One push, Outdoor |
| Camera shutter speed |
1/30 - 1/10000 s |
| Camera shutter type |
Auto |
| Camera shutter function |
Yes |
| Focal length range |
4.4 - 52.8 mm |
| Digital zoom |
16x |
| Optical zoom |
12x |
| Zoom capability |
Yes |
| Auto focus |
Yes |
| Video formats supported |
H.264, H.265, M-JPEG |
| Maximum frame rate |
60 fps |
| Camera HD type |
4K Ultra HD |
| Maximum video resolution |
2160 x 3840 pixels |
| Megapixel (approx.) |
8.51 MP |
| Design |
| Tripod thread |
1/4-20" |
| Tripod mounting supported |
Yes |
| Pan range |
-15 - 130° |
| Pan speed |
43 °/sec |
| Tilt angle range |
0 - 300° |
| Tilt speed |
21.32 °/sec |
| Optical sensor size |
25.4 / 2.8 mm (1 / 2.8") |
| Sensor type |
CMOS |
| Mounting type |
Stand |
| Product colour |
Blue |
| Interface |
HDMI |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Weight |
2.6 kg |
| Height |
219 mm |
| Depth |
189.1 mm |
| Width |
173 mm |
| Packaging data |
| Package type |
Box |
| Quantity |
1 |
| Packaging content |
| Manual |
Yes |
| Packaging content |
1 x PTC-285 product 1 x RMC-1AT IR remote controller 1 x Ceiling mount bracket-A 1 x Ceiling mount bracket -B 6 x Ceiling mount bracket screw M3*4mm 1 x DC 12V Power Adaptor 1 x Safety cable |
| Remote control included |
Yes |
| Other features |
| Power over Ethernet (PoE) |
Yes |
| Supported protocols |
Pelco-D, Peldo-P, VISCA, VISCA over IP, DVIP, ONVIF |
