Imagine a meeting where every face is crystal clear, every detail sharp, and you never have to chase a moving speaker. The DataVideo PTC-305 4K PTZ Video Conference Camera delivers exactly that. It is a professional-grade camera designed for video calls, webinars, and live streams. If you have struggled with blurry images, missed participants, or complicated setups, this camera solves those issues with one simple device.

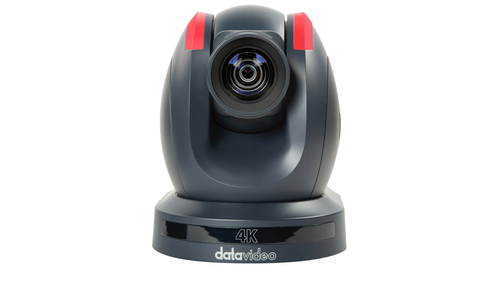

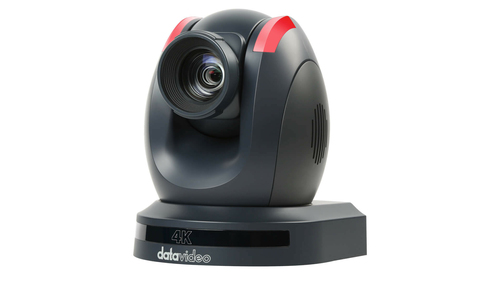

DataVideo PTC-305 4K PTZ Video Conference Camera 8.51MP 3840x2160 20x 16x Zoom
Many businesses lose credibility when their video quality looks amateur. Poor image quality can distract viewers and make communication harder. The PTC-305 removes that problem by offering true 4K resolution, powerful 20x optical zoom, and intelligent auto-tracking that follows the speaker automatically. You get a reliable, high-definition picture without needing a crew, and you can focus on the conversation instead of the camera.
Benefits
- Sharp 4K video lets every detail be seen, so participants feel present.
- Auto-tracking follows the speaker, so you never miss a gesture or expression.
- 20x optical zoom brings distant speakers close without losing quality.
- Dual HDMI and IP outputs let you stream to two platforms at once.
- Power over Ethernet simplifies installation and reduces cable clutter.
Usages
The camera fits perfectly in board rooms for executive briefings, in classrooms for remote teaching, and in studios for live webinars. It works well for corporate town halls, virtual conferences, and even small-scale productions that need professional quality. Because it supports RTSP, RTMPS and popular platforms like YouTube and Facebook, you can broadcast live or record for later use with the same device.
Key Features
- 8.51 MP 1/1.8" CMOS sensor delivers true 3840 2160 resolution.
- 20x optical zoom and 16x digital zoom for flexible framing.
- Smart auto-tracking with PID speed adaptation for smooth motion.
- Three simultaneous outputs: HDMI 2.0, 3G-SDI, and IP stream.
- Supports H.264, H.265, and M-JPEG compression formats.
- On-board tally lights show preview and program status.
- 255 preset positions let you recall favorite angles instantly.
- PoE (IEEE 802.3at) powers the camera over a single CAT-6 cable.
- Compatible with RS-422, VISCA, DVIP, and ONVIF for easy integration.
- Remote control and mobile app let you manage up to four cameras.
Specifications
| Camera |
| Number of camera presets |
255 |
| Wide Dynamic Range (WDR) |
No |
| Auto focusing (AF) modes |
Auto, Manual |
| White balance |
Auto, Indoor, Manual, One push, Outdoor |
| Signal-to-Noise Ratio (SNR) |
55 dB |
| Minimum illumination |
0.5 lx |
| Field of view (wide) |
60° |
| Focal length range |
6.7 - 125 mm |
| Digital zoom |
16x |
| Optical zoom |
20x |
| Zoom capability |
Yes |
| Optical sensor size |
25.4 / 1.8 mm (1 / 1.8") |
| Sensor type |
CMOS |
| Camera type |
Single camera |
| Megapixel (approx.) |
8.51 MP |
| Video |
| High Dynamic Range (HDR) supported |
No |
| Video formats supported |
H.264, H.265, M-JPEG |
| Supported video modes |
720p, 1080i, 1080p, 2160p |
| HD type |
4K Ultra HD |
| Maximum video resolution |
3840 x 2160 pixels |
| Design |
| Pan speed (max) |
43 °/sec |
| Tilt speed (max) |
21.32 °/sec |
| Tally light |
Yes |
| Mounting type |
Stand |
| Product colour |
Black |
| Ports & interfaces |
| Microphone in |
Yes |
| 3G-SDI output |
Yes |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Network |
| Supported network protocols |
Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, Onvif |
| Streaming capability |
Yes |
| Networking standards |
IEEE 802.3at |
| Packaging content |
| Remote control included |
Yes |
| Weight & dimensions |
| Weight |
2.6 kg |
| Height |
219 mm |
| Depth |
189.1 mm |
| Width |
173 mm |
