Ever tried to sync a camera feed with a monitor and end up with black screens or mismatched formats? You need a reliable display that accepts both SDI and HDMI without a hassle. The DataVideo TLM-170VM gives you a 17-inch Full HD screen that pulls out, cross-converts video signals, and shows accurate waveforms so you can trust what you see. No more guesswork, just clear picture and built-in tools that keep your production moving.

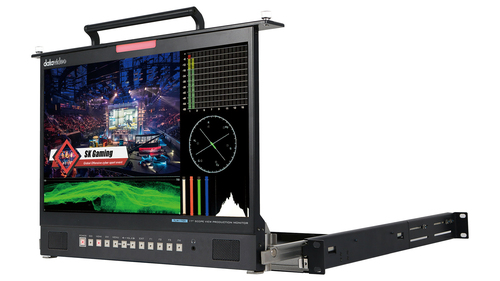

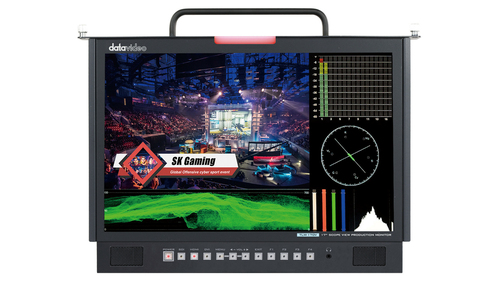

DataVideo TLM-170VM,17" FULL HD LCD Monitor with SDI and HDMI, Black
Designed for video editors, field producers and broadcast engineers, this 17.3-inch LCD monitor delivers 1920 x 1080 resolution, HDR support and a 300 cd/m peak brightness. It features one SDI input, two HDMI inputs, a loop-through SDI and HDMI, plus audio I/O and a tally light for live cues.
Benefits
- You see exactly what the camera records, no guesswork.
- Cross conversion lets you mix SDI and HDMI sources instantly.
- DataVideos built-in tools cut setup time on set.
- Tally light alerts you when a source is live.
- Wide viewing angles keep colors consistent for any crew position.
- Integrated speakers and audio I/O simplify monitoring.
Features
- 17.3 inch Full HD LCD panel
- 1920 x 1080 native resolution
- Supports HDR (high dynamic range)
- 1 x 3G/HD/SD-SDI input
- 2 x HDMI inputs, HDMI loop-through
- Built-in audio in/out and speakers
- Tally light for live production
- 89 vertical and horizontal viewing angles
Specifications
| Display |
| High Dynamic Range (HDR) supported |
Yes |
| Viewing angle, vertical |
89° |
| Viewing angle, horizontal |
89° |
| Maximum refresh rate |
60 Hz |
| Contrast ratio (typical) |
700:1 |
| Aspect ratio |
4:3, 16:9 |
| Supported video modes |
480i, 576i, 720p, 1080i, 1080p |
| Supported graphics resolutions |
1920 x 1080 (HD 1080) |
| Screen shape |
Flat |
| Display brightness (peak) |
300 cd/m² |
| LED backlight |
Yes |
| Touchscreen |
No |
| Display technology |
LCD |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
43.2 cm (17") |
| Performance |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
| Built-in camera |
No |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
| Product colour |
Black |
| Market positioning |
Business |
| Ports & interfaces |
| Headphone outputs |
1 |
| Headphone out |
Yes |
| Audio output |
Yes |
| Audio input |
Yes |
| 12G-SDI ports quantity |
2 |
| HDMI ports quantity |
2 |
| HDMI |
Yes |
| Built-in USB hub |
No |
| Power |
| Power consumption (typical) |
21.9 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Weight (with stand) |
6.7 kg |
| Height (with stand) |
492.7 mm |
| Depth (with stand) |
44.5 mm |
| Width (with stand) |
485.8 mm |
| Packaging content |
| Cables included |
DC |
| Stand included |
Yes |
