If you are looking for a reliable and efficient server to manage your business operations, you might be facing a big problem. Many servers on the market are not able to handle large amounts of data and traffic, which can lead to slow performance and even crashes. This can be very frustrating and cost you a lot of time and money. The DELL PowerEdge R760, Intel Xeon Gold 6544Y, 2U Rack-Mount Server is here to give you a clear solution. With its powerful processor and large storage capacity, it can handle even the most demanding tasks with ease. This means you can focus on growing your business without worrying about your server holding you back.

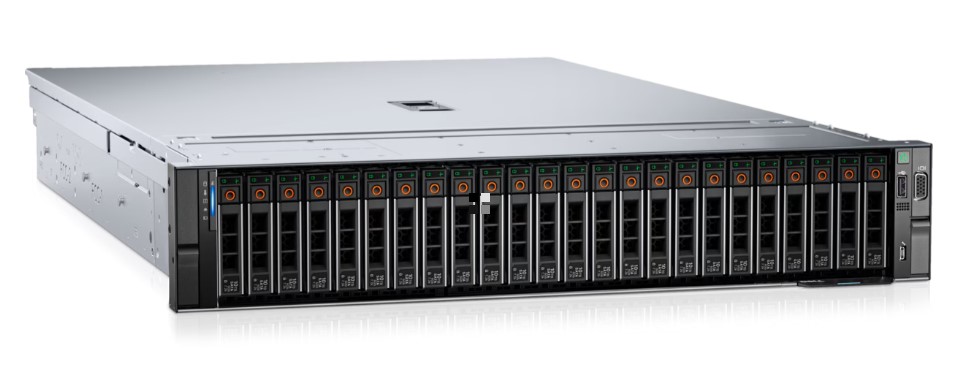

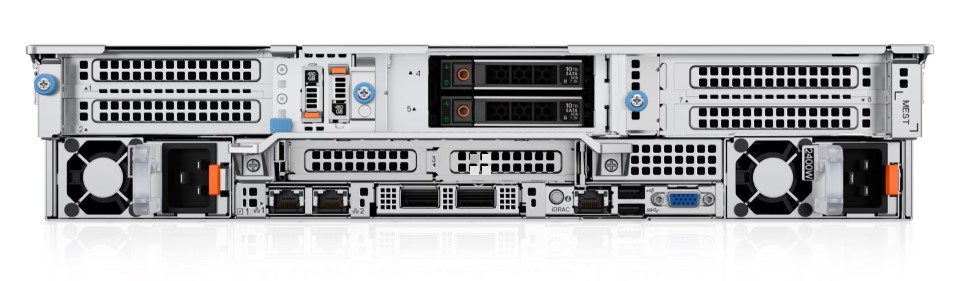

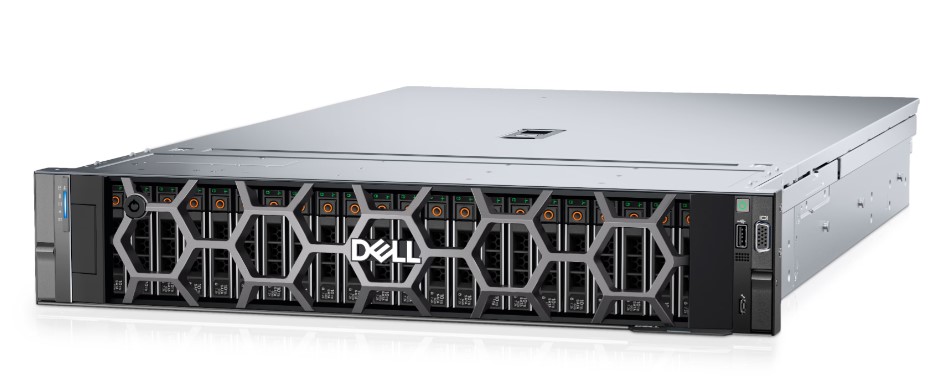

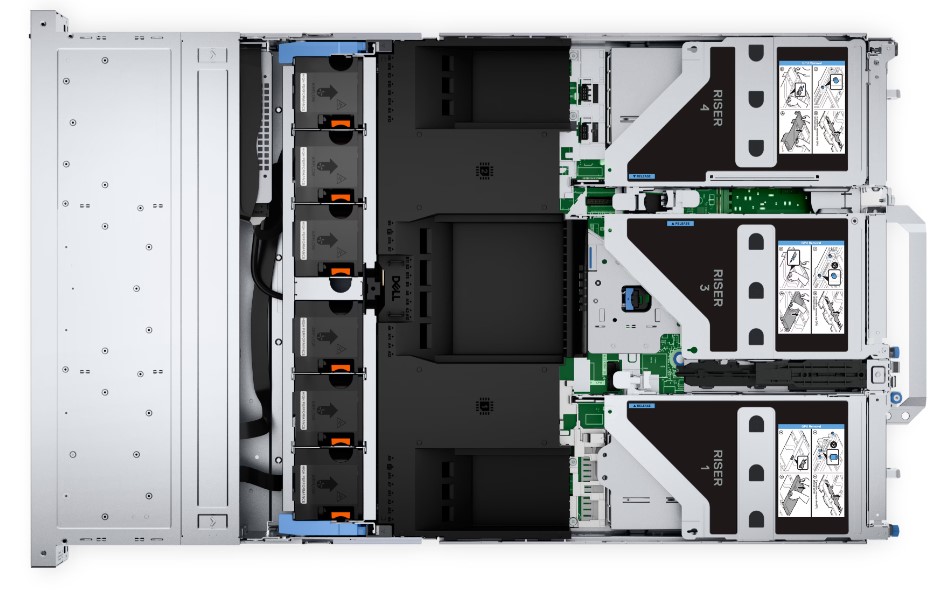

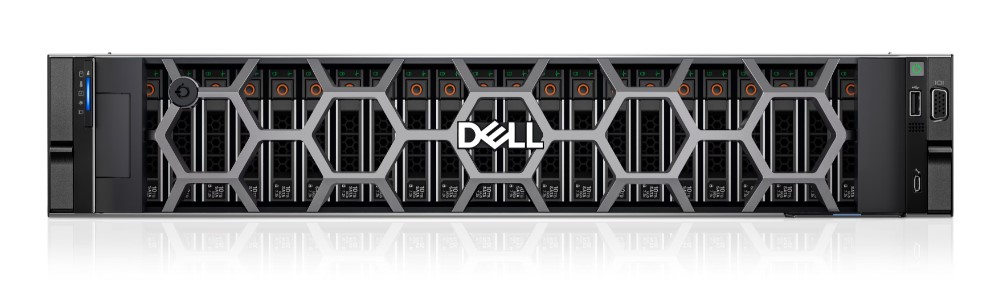

DELL PowerEdge R760, Intel Xeon Gold 6544Y, 2U Rack-Mount Server with DELL
Are you tired of using a slow and unreliable server? Look no further than the DELL PowerEdge R760, Intel Xeon Gold 6544Y, 2U Rack-Mount Server. This powerful server is designed to handle even the most demanding tasks with ease, making it perfect for businesses of all sizes. With its advanced features and reliable performance, you can trust that your business will be running smoothly and efficiently. The DELL PowerEdge R760 is a 2U rack-mount server that is designed to be easy to use and manage, even for those who are not tech-savvy. It is perfect for businesses that need a reliable and efficient server to manage their operations.
Key Features
- Intel Xeon Gold 6544Y processor, providing fast and efficient performance
- 2U rack-mount design, making it easy to install and manage
- 64 GB of DDR5 ECC RDIMM memory, providing plenty of room for growth and expansion
- 2 x 960 GB SATA Read Intensive SSD, providing fast and reliable storage
- 2 x 1100 W Titanium Hot-Plug Redundant Power Supplies, providing reliable and efficient power
- 6 Hot-plug fans, providing advanced cooling and ventilation
- iDRAC9 Enterprise with OpenManage Enterprise, providing advanced management and monitoring capabilities
- Trusted Platform Module (TPM) 2.0, providing advanced security and encryption
- Support for up to 8 PCIe Gen5 slots, providing plenty of room for expansion and upgrades
- Broadcom 57416 Dual Port 10GbE BASE-T LAN controller, providing fast and reliable networking
- 2 x USB 3.2 Gen 1 Type-A ports, providing easy connectivity and access
Specifications
| Product |
|
| Product Name |
DELL PowerEdge R760 |
| Server Type |
2U Rack-Mount Server |
| Processor |
|
| Processor manufacturer |
Intel |
| Processor family |
Intel® Xeon® Gold |
| Processor model |
Intel Xeon Gold 6544Y |
| Processor frequency |
3.6 GHz |
| Processor boost frequency |
4.1 GHz |
| Processor cores |
16 |
| Number of processors installed |
1 |
| Processor cache |
45 MB |
| Processor cache type |
L3 |
| Processor generation |
Intel Xeon Scalable 5th Gen |
| Memory |
|
| Internal memory type |
DDR5 ECC RDIMM |
| Internal memory |
64 GB |
| Memory layout (slots x size) |
2 × 32 GB |
| Memory slots |
32 DIMM |
| Memory clock speed |
5600 MT/s |
| Maximum internal memory |
8 TB |
| Storage |
|
| Total storage capacity |
1.92 TB |
| Storage drive type |
2 × 960 GB SATA Read Intensive SSD |
| Supported SSD sizes |
2.5" |
| RAID support |
Yes |
| RAID controller |
PERC H755 |
| Optical drive type |
No |
| Network |
|
| Ethernet LAN |
Yes |
| Ethernet interface type |
10 Gigabit Ethernet |
| LAN controller |
Broadcom 57416 Dual Port 10GbE BASE-T |
| Ports & interfaces |
|
| Ethernet LAN (RJ-45) ports |
2 |
| USB 3.2 Gen 1 Type-A ports |
2 Front, 2 Rear |
| VGA (D-Sub) ports quantity |
1 |
| Dedicated management port |
1 × iDRAC9 |
| Expansion slots |
Up to 8 PCIe Gen5 slots (configuration dependent) |
| Management |
|
| Management platform |
iDRAC9 Enterprise with OpenManage Enterprise |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Graphics |
|
| On-board graphics controller |
ASPEED AST2600 |
| Design |
|
| Chassis type |
Rack (2U) |
| Rack mounting |
Yes |
| Cooling type |
Active |
| Standard fans |
6 Hot-plug fans |
| Power |
|
| Power supply type |
2 × 1100 W Titanium Hot-Plug Redundant Power Supplies |
| Redundant power supply (RPS) support |
Yes |
| Number of main power supplies |
2 |
| Security |
|
| Security features |
UEFI Secure Boot, Silicon Root of Trust, TPM 2.0, System Lockdown, Secure
Component Verification
|
| Software |
|
| Operating system installed |
No |
| Supported operating systems |
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server,
Ubuntu Server LTS, VMware ESXi
|
| Weight & dimensions |
|
| Chassis type |
Rack (2U) |
| Width |
482 mm |
| Height |
86.8 mm |
| Depth |
772 mm |
