Dell PowerScale F710 is a 1U all-flash, all-NVMe NAS designed for high-performance storage environments that need fast SSD-based capacity in a compact form factor. It combines 512 GB DDR5 ECC memory, two Intel® Xeon® CPUs, and 10 NVMe SSD drives with 7.68 TB TLC capacity per node. With 77 TB raw node capacity and flexible 10G, 25G, 40G, and 100G networking options, the Dell PowerScale F710 provides a scalable storage platform for environments that require high-speed data access and clustered storage.

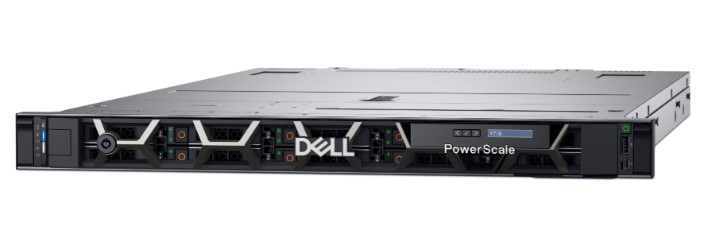

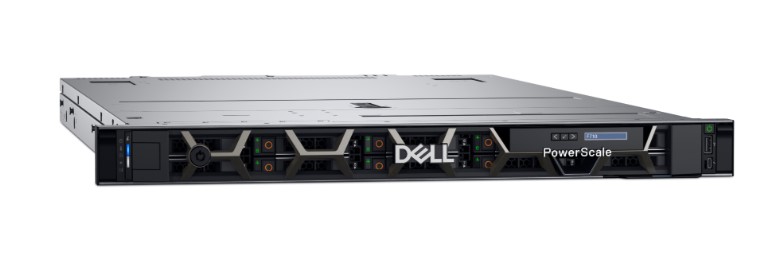

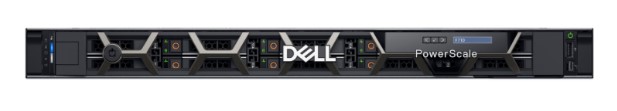

Dell PowerScale F710 1U All-Flash NAS
Modern storage environments can require large SSD capacity while maintaining a compact rack footprint. The Dell PowerScale F710 uses a 1U form factor with 10 x 2.5” NVMe SSD drives, providing 77 TB of raw node capacity from 7.68 TB TLC SSDs. Its 512 GB DRAM DDR5 ECC memory and two Intel® Xeon® CPUs running at 2.6GHz/24C provide the specified processing and memory configuration for the NAS platform.
The Dell PowerScale F710 also supports multiple front-end networking configurations. Per node, it can use a dual-port 25 NIC supporting 10G or 25G connections through SFP+/SFP28, along with a dual-port 100G NIC supporting 40G or 100G connections. Infrastructure networking uses a dual-port 100G NIC supporting 40G or 100G connections. OneFS 9.2.1 or later provides the specified operating system for the system.
Benefits
-
All-flash NVMe storage provides a dedicated SSD-based storage configuration.
-
1U form factor helps provide high storage capacity in a compact enclosure.
-
512 GB DDR5 ECC memory provides the specified memory capacity.
-
Multiple networking options support 10G, 25G, 40G, and 100G connections.
-
Dual redundant power supplies provide the specified power configuration.
Usages
The Dell PowerScale F710 is designed for scale-out storage environments that need NVMe SSD storage in a 1U enclosure. Its 10 SSD drives per node provide 7.68 TB TLC capacity per drive, resulting in 77 TB of raw node capacity. This configuration gives storage environments a compact platform for managing all-flash data.
The PowerScale architecture uses a distributed fully symmetric clustered design that combines modular storage with the OneFS operating system in a single volume, single namespace, and single filesystem. The minimum cluster size is 3 nodes, while the maximum cluster size is 252 nodes, allowing the system to be deployed as part of a larger scale-out storage architecture.
Key Features
-
Dell PowerScale F710
-
All-flash, all-NVMe NAS
-
1U form factor
-
2 Intel® Xeon® CPUs, 2.6GHz/24C
-
512 GB DRAM DDR5 ECC
-
10 x 2.5” NVMe SSD drives
-
7.68 TB TLC SSD capacity per drive
-
77 TB raw node capacity
-
OneFS 9.2.1 or later
-
3-node minimum cluster size
-
252-node maximum cluster size
-
Dual redundant 1400 W power supplies
Specifications:
| Product Information |
|
| Product |
PowerScale F710 |
| Functional |
All-flash, all-NVMe NAS |
| Form Factor |
1U Form Factor |
| Processor |
|
| Processor |
2 Intel® Xeon® CPUs, 2.6GHz/24C |
| Memory |
|
| Memory |
512 GB DRAM DDR5 ECC |
| Storage |
|
| Storage Type |
NVMe SSD |
| SSD Drives per Node |
10 |
| SSD Capacity |
7.68 TB (TLC) |
| Raw Node Capacity |
77 TB |
| System Overview |
|
| Base Enclosure |
1U Form Factor |
| Drive Form Factor |
10x2.5” NVMe SSD drives |
| Connectivity |
|
| Front End Networking (per node) |
Dual port 25 NIC supporting 10G or 25G connections (SFP+/SFP28);
Dual Port 100G NIC supporting 40G or 100G connections
|
| Infrastructure Networking (per node) |
Dual port 100G NIC supporting 40G or 100G connections (QSFP+SFP28) |
| Software |
|
| Operating System |
OneFS 9.2.1 or later |
| Expansion Capacity |
|
| Scale-out Architecture |
Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace, and single filesystem |
| Minimum Cluster Size |
3 nodes |
| Maximum Cluster Size |
252 nodes |
| Physical |
|
| Height |
42.8 mm / 1.68 in. |
| Width |
482 mm / 18.97 in. |
| Depth |
822.88 mm / 32.39 in. (with bezel) |
| Weight |
22.5 kg / 49.6 lb |
| Power |
|
| Power Supply |
1400 W |
| Power Supply Configuration |
Dual redundant power supplies |
| Max Power Consumption @ 200–240V per node |
769 Watts (@25°C), 887 Watts (@35°C) |
| Typical Thermal Rating |
2622 BTU/hr (@25°C), 3025 BTU/hr (@35°C) |
