DELL PowerScale F910 is a 2U all-flash NAS designed for high-capacity NVMe storage and demanding scale-out environments. It supports 24 NVMe SSD drives per node with a raw node capacity of 184 TB, providing a large all-flash storage configuration in a 2U form factor. With 512 GB ECC memory, multiple high-speed networking options, and PowerScale OneFS 9.8 or later, the DELL PowerScale F910 provides a scalable platform for storage environments requiring flexible connectivity and substantial NVMe capacity.

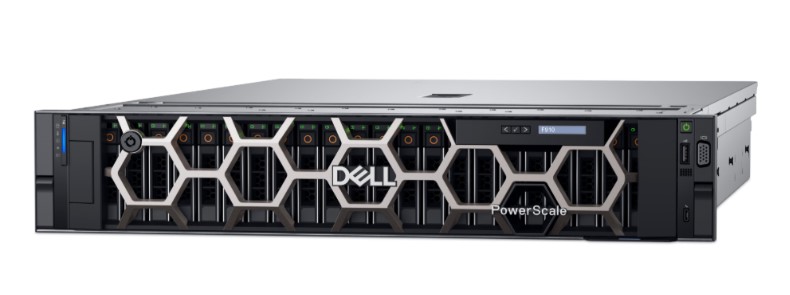

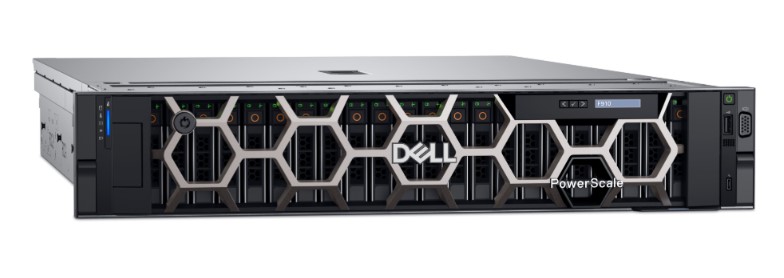

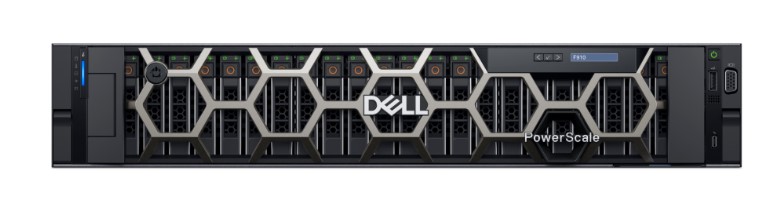

DELL PowerScale F910 2U All-Flash NAS
High-performance storage environments need a combination of large NVMe capacity, high-speed networking, and scale-out flexibility. The DELL PowerScale F910 provides 24 2.5" NVMe SSD drives per node and a raw node capacity of 184 TB. Its 512 GB ECC memory per node supports the specified system configuration, while the 2U form factor provides a compact rack-based design for the all-flash NAS platform.
The DELL PowerScale F910 supports several front-end networking configurations, including dual-port 25G NICs for 10G or 25G connections, dual-port 100G NICs for 40G or 100G connections, dual-port 200G Ethernet NICs, and dual-port 200G InfiniBand NICs (HDR). Infrastructure networking also supports dual-port 100G, 200G Ethernet, and 200G InfiniBand options, providing flexible connectivity for the specified network environment.
Benefits
-
184 TB raw node capacity provides substantial NVMe storage capacity.
-
24 NVMe SSD drives per node provide a dense all-flash storage configuration.
-
512 GB ECC memory per node provides the specified memory capacity.
-
Multiple 25G, 100G, and 200G networking options support flexible connectivity.
-
2U form factor provides a rack-based enclosure for the NAS platform.
Usages
The DELL PowerScale F910 is suited to storage environments that require high NVMe drive density and a large raw capacity per node. With 24 2.5" NVMe SSD drives and 184 TB raw node capacity, it provides a substantial storage configuration for scale-out NAS deployments.
Its broad networking options allow the node to be configured with different high-speed connectivity types. Front-end networking can use 25G, 100G, 200G Ethernet, or 200G InfiniBand HDR options, while infrastructure networking supports 100G, 200G Ethernet, and 200G InfiniBand HDR configurations.
The system supports self-encrypting drives (SED), with this feature requiring OneFS 9.8. The operating system is PowerScale OneFS 9.8 or later, matching the specified software requirement for the DELL PowerScale F910.
Key Features
-
DELL PowerScale F910
-
2U form factor all-flash NAS
-
184 TB raw node capacity
-
24 x 2.5" NVMe SSD drives per node
-
512 GB ECC memory per node
-
Self-Encrypting Drives (SED) support
-
Requires OneFS 9.8 for SED
-
PowerScale OneFS 9.8 or later
-
Dual-port 25G NIC supporting 10G or 25G
-
Dual-port 100G NIC supporting 40G or 100G
-
Dual-port 200G Ethernet NIC
-
Dual-port 200G InfiniBand NIC (HDR)
Specifications:
| Raw Node Capacity |
184 TB |
| NVMe SSD Drives (2.5") per Node |
24 |
| Self-Encrypting Drives (SED) |
Yes (requires OneFS 9.8) |
| Operating System |
PowerScale OneFS 9.8 or later |
| ECC Memory (per Node) |
512 GB |
| Front-End Networking (per Node) |
Dual port 25G NIC supporting 10G or 25G connections; Dual port 100G NIC supporting
40G or 100G connections; Dual port 200G Ethernet NIC; Dual port 200G InfiniBand NIC
(HDR)
|
| Infrastructure Networking (per Node) |
Dual port 100G NIC supporting 40G or 100G connections; Dual port 200G
Ethernet NIC; Dual port 200G InfiniBand NIC (HDR)
|
| Max Power Consumption @ 200–240V (per Node) |
877 Watts (@25°C), 913 Watts (@35°C) |
| Typical Thermal Rating |
2992 BTU/hr (@25°C), 3115 BTU/hr (@35°C) |
