Unleash the power of a true mobile workstation and transform every project into a masterpiece. The DELL Precision 5570 delivers unrivaled performance, stunning 4K visuals, and rock‑solid security—so you can create, analyze, and present with confidence.

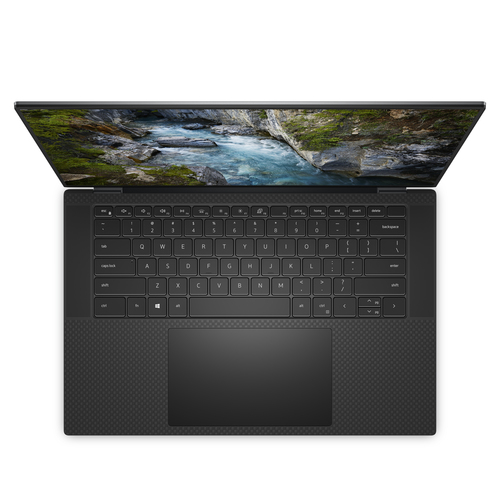

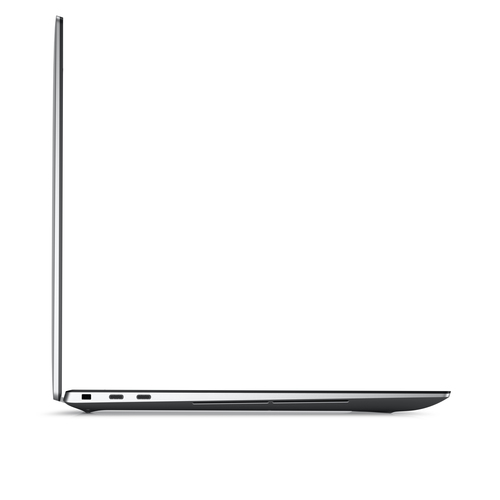

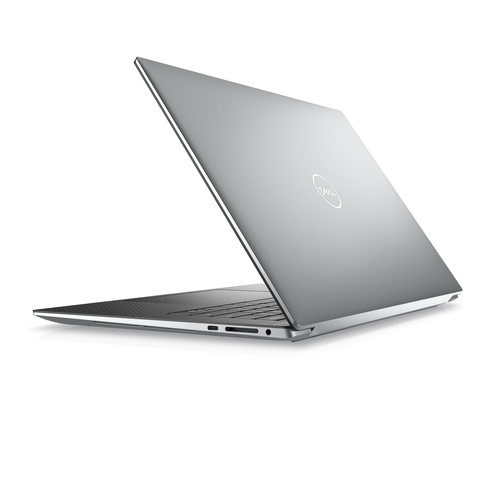

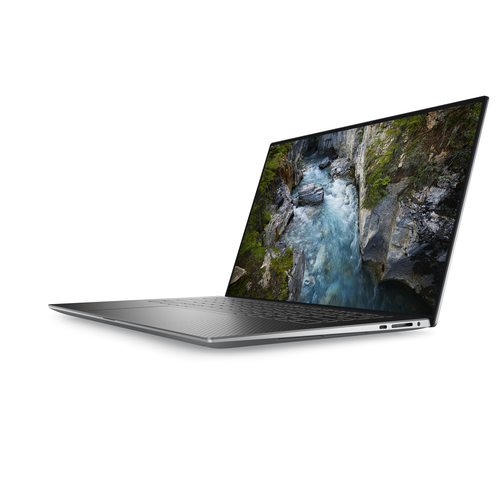

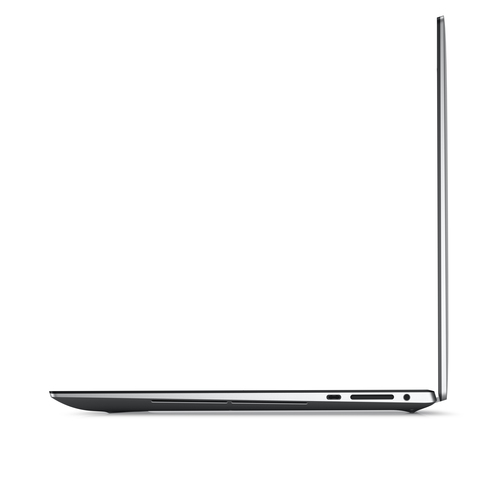

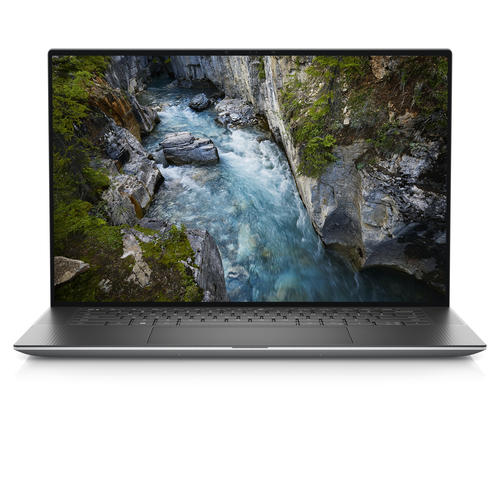

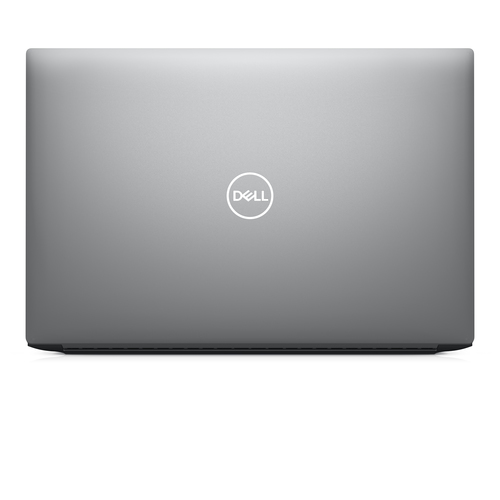

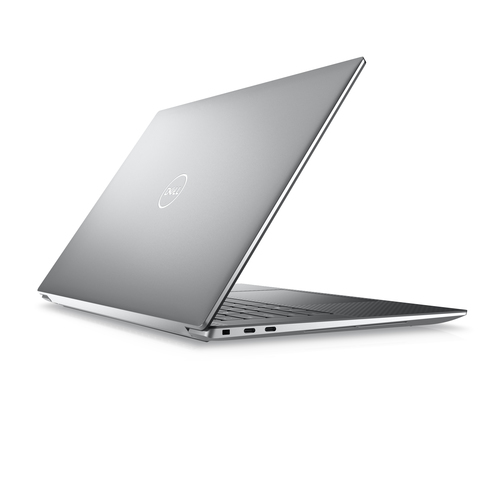

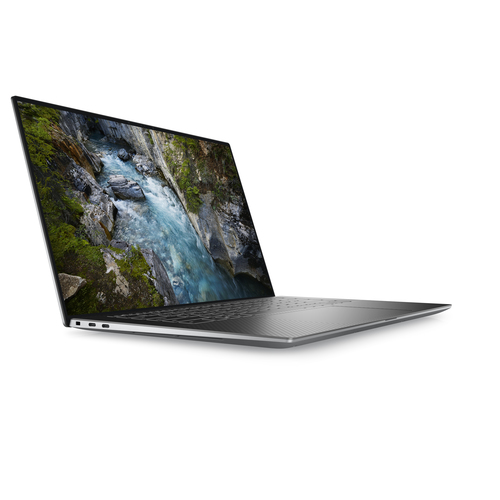

DELL Precision 5570, Core i9, 32GB/1TB, 15.6 Inch 4K Laptop, W10 Pro P0V6X

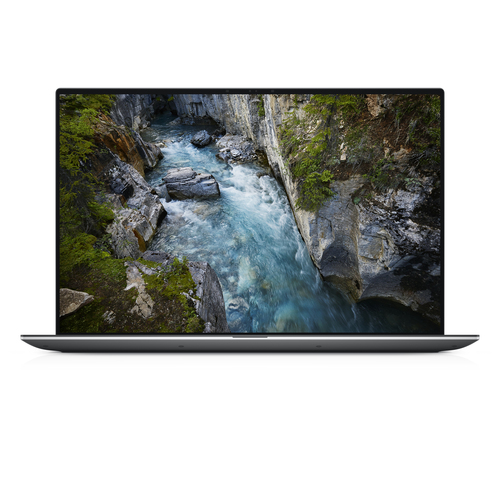

Equipped with a 12th Gen Intel Core i9 processor and NVIDIA RTX A2000 graphics, this laptop handles demanding CAD, video editing, and AI workloads without breaking a sweat. The 15.6‑inch 4K UHD+ InfinityEdge touchscreen offers 100 % Adobe RGB coverage and HDR 400 for vivid, true‑to‑life colors.
Your workflow stays fast and fluid thanks to 32 GB DDR5‑4800 memory and a 1 TB PCIe 4.0 NVMe SSD. Thunderbolt 4, Wi‑Fi 6E, and a USB‑C Power Delivery port keep you connected and powered up wherever you go.
Security features like a fingerprint reader, TPM 2.0, and a lock slot protect your data, while the 86 Wh battery and fast‑charge technology give you up to 10 hours of work on a single charge.
Benefits
- Extreme performance for complex 3D rendering and data analysis.
- Ultra‑sharp 4K touchscreen delivers accurate color for design work.
- Robust security with fingerprint, TPM 2.0, and cable‑lock slot.
- Long‑lasting battery and rapid charging keep you productive on the move.
Uses of the product
- Professional CAD and BIM modeling with high‑resolution visuals.
- Video editing and color grading on a true‑to‑life 4K display.
- AI and machine‑learning development using powerful CPU and GPU.
- Secure remote work with enterprise‑grade encryption and authentication.
Features
- 12th Gen Intel i9‑12900H processor (14 cores, 5 GHz boost) with 24 MB cache.
- NVIDIA RTX A2000 8 GB GDDR6 discrete graphics plus Intel Iris Xe.
- 15.6‑inch 3840 × 2400 UHD+ touchscreen, HDR 400, 500 cd/m² brightness, 100 % Adobe RGB.
- Two Thunderbolt 4 ports, Wi‑Fi 6E AX211, fingerprint reader, TPM 2.0, and fast‑charge 86 Wh battery.
Specifications
| Design |
| Intel® vPro™ Platform Eligibility |
Yes |
| Introduction year |
2022 |
| Market positioning |
Business |
| Form factor |
Clamshell |
| Product colour |
Grey |
| Product type |
Mobile workstation |
| Display |
| High Dynamic Range (HDR) technology |
High Dynamic Range (HDR) 400 |
| High Dynamic Range (HDR) supported |
Yes |
| Contrast ratio (typical) |
1600:1 |
| Display response rise/fall |
60 ms |
| Maximum refresh rate |
60 Hz |
| Colour gamut |
100% |
| RGB colour space |
Adobe RGB |
| Pixel density |
290 ppi |
| Pixel pitch |
0.09 x 0.09 mm |
| Display brightness |
500 cd/m² |
| LED backlight |
Yes |
| Native aspect ratio |
16:10 |
| Panel type |
WLED |
| HD type |
UHD+ |
| Touchscreen |
Yes |
| Display resolution |
3840 x 2400 pixels |
| Display diagonal |
39.6 cm (15.6") |
| Processor |
| Configurable TDP-down |
35 W |
| Processor cache |
24 MB |
| Processor boost frequency |
5 GHz |
| Processor cores |
14 |
| Processor model |
i9-12900H |
| Processor generation |
12th gen Intel® Core™ i9 |
| Processor family |
Intel® Core™ i9 |
| Processor manufacturer |
Intel |
| Memory |
| Maximum internal memory |
64 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 16 GB |
| Memory clock speed |
4800 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
32 GB |
| Storage |
| Compatible memory cards |
SDXC, SD, SDHC |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| SSD interface |
PCI Express 4.0 |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Total storage capacity |
1 TB |
| Graphics |
| On-board graphics card model |
Intel Iris Xe Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |
| Discrete graphics card model |
NVIDIA RTX A2000 |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Number of built-in speakers |
4 |
| Audio chip |
Realtek ALC3281 |
| Camera |
| Infrared (IR) camera |
Yes |
| Video capturing speed |
30 fps |
| Front camera HD type |
HD |
| Front camera resolution |
1280 x 720 pixels |
| Front camera resolution (numeric) |
0.92 MP |
| Front camera |
Yes |
| Network |
| Bluetooth version |
5.2 |
| Bluetooth |
Yes |
| Ethernet LAN |
No |
| WLAN controller manufacturer |
Intel |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Antenna type |
2x2 |
| Wi-Fi data rate (max) |
2400 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 2.0 ports quantity |
0 |
| Keyboard |
| Keyboard language |
UK English |
| Keyboard backlit |
Yes |
| Numeric keypad |
No |
| Pointing device |
Touchpad |
| Software |
| Trial software |
No Microsoft Office License Included 30 day Trial Offer Only |
| Windows 11 free upgrade |
Yes |
| Operating system language |
German, Dutch, English, French, Italian |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Pro |
| Processor special features |
| CPU configuration (max) |
1 |
| Embedded options available |
No |
| Execute Disable Bit |
Yes |
| Intel Flex Memory Access |
Yes |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Battery |
| Battery weight |
340 g |
| Fast charging |
Yes |
| Battery recharge time |
3 h |
| Battery capacity |
86 Wh |
| Battery capacity |
86 Wh |
| Battery voltage |
11.4 V |
| Number of battery cells |
6 |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| AC adapter output voltage |
20 V |
| AC adapter output current |
6.5 A |
| AC adapter input voltage |
100 - 240 V |
| AC adapter frequency |
50/60 Hz |
| AC adapter power |
130 W |
| Security |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Fingerprint reader |
Yes |
| Cable lock slot |
Yes |
| Operational conditions |
| Non-operating vibration |
1.3 G |
| Operating vibration |
0.66 G |
| Non-operating shock |
160 G |
| Operating shock |
110 G |
| Non-operating altitude |
-15.2 - 10668 m |
| Operating altitude |
-15.2 - 3048 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating temperature (T-T) |
0 - 35 °C |
| Weight & dimensions |
| Height (rear) |
1.17 cm |
| Height (front) |
1.85 cm |
| Depth |
230.1 mm |
| Width |
344.4 mm |
| Weight |
2.1 kg |
| Packaging content |
| Cables included |
AC |
| Other features |
| Internal memory |
32 GB |
| Manufacturer |
DELL |
| Maximum internal memory |
64 GB |
| Operating temperature (T-T) |
0 - 35 °C |
