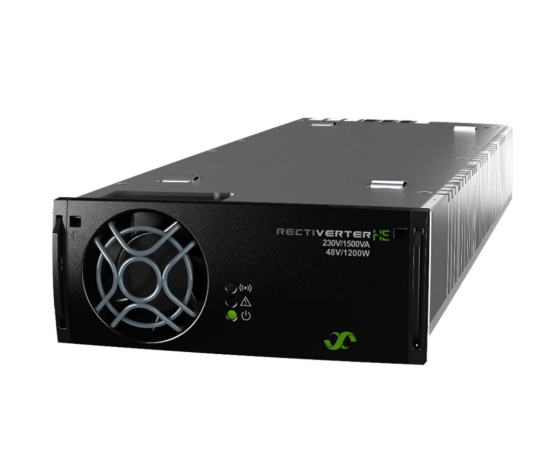

Model
|
230/1500 48/1200 |
|
Part Number
|
241123.100 |
|
AC Output Data
|
|
|
Voltage (Default) / (Adjustable Range)
|
230 VAC / 200 - 240 VAC
|
|
Frequency (Default Inverter Mode)
|
50 Hz (adaptive)
|
|
Frequency (Settable Inverter Mode)
|
50 Hz, 60 Hz or last synced 50/60 Hz (adaptive), 94-106 Hz, 74-76 Hz
|
|
Power Maximum (Continuous / Overload (<15s))
|
1200 W (1500 VA) / 2000 VA
|
|
Load Sharing
|
±5% of active power from 10 to 100% load
|
|
Current Maximum (Continuous / Overload (<15s))
|
6.5 ARMS / 8.7 ARMS
|
|
Current Maximum Quick Trip (20 ms)
|
32 A (6 × nominal)
|
|
THD
|
< 1.5% at resistive load
|
|
Protection
|
Fuse in L, hot pluggable, varistor
|
|
DC Output Data
|
|
|
Voltage (Default) / (Adjustable Range)
|
53.5 VDC / 43 - 58 VDC
|
|
Power (Maximum at Nominal Input)
|
1200 W
|
|
Current (Maximum at VOUT ≤ 48 VDC)
|
25 A
|
|
Current Sharing (10 - 100% Load)
|
±5% of maximum current from 10 to 100% load
|
|
Static Voltage Regulation (10 - 100% Load)
|
±0.5%
|
|
Dynamic Voltage Regulation
|
±5.0% for 10-90% or 90-10% load variation, regulation time < 50 ms
|
|
Ripple
|
< 200 mVPP, 30 MHz bandwidth
|
|
Protection
|
Short circuit proof, overvoltage shutdown, reversed polarity, reversed polarity and fuse
|
|
Input Data
|
|
|
AC Mains Input Voltage (Range / LV Disconnect)
|
185 - 275 VAC / 170 VAC
|
|
AC Current (Maximum)
|
11.5 ARMS
|
|
Frequency (Default: Sync Range)
|
47-53 & 57-63 Hz
|
|
Frequency (Settable: Sync Range)
|
47-53 Hz, 57-63 Hz or both (adaptive)
|
|
Power Factor / THD
|
> 0.985 at 50% load or more / < 3.5%
|
|
AC Input Protection
|
Fuse in L and N, hot pluggable, varistor
|
|
DC Voltage (Nominal / Extended Range)
|
45 - 58 VDC / 40 - 45 VDC
|
|
DC Current (Maximum)
|
32 A / 45 A during overload (15 s)
|
|
Other Specifications
|
|
|
Efficiency
|
>96% (mains mode), >94% (inverter mode)
|
|
Environmental Parameters
|
|
|
Operating Temperature
|
-40 to +75°C (-40 to +167°F)
|
|
Operating Humidity
|
5 - 95% RH, non-condensing
|
|
Temperature Derating Above 55°C
|
1200 W to 480 W at 75°C for each AC and DC output
Total power 2000 W to 800 W
|
|
Storage Temperature
|
-40 to +85°C (-40 to +185°F)
|
|
Storage Humidity
|
0 - 99% RH, non-condensing
|
|
Dimensions & Weight
|
|
|
Dimensions (W × H × D)
|
109 × 41.5 × 327 mm (4.25 × 1.69 × 13 in)
|
|
Weight
|
1.95 kg (4.3 lbs)
|
|
Design Standards
|
|
|
Electrical Safety
|
EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, IEC/EN 62040-1:2008+A1:2013, UL 60950-1:2014, UL 1778:2014, C22.2 No. 107.3-14
|
|
EMC
|
EN 61000-6-1:2019, EN 61000-6-2:2019, EN 61000-6-3:2007 + A1:2011, EN 61000-6-4:2019, IEC 61000-6-5:2015, EN 62040-2:2006, EN 50121-4:2016+A1:2019, EN 50121-5:2017+A1:2019, ETSI EN 300 386 V.2.1.1, FCC CFR 47 Part 15
|
|
Environment
|
EU 2015/863 (RoHS), 2012/19/EU (WEEE), ETSI EN 300 019: 2-1 (Class 1.2) and 2-2 (Class 2.3)
|
|
Normal Operating Conditions
|
As per IEC 62040-5-3:2016, clause 4.2. Other operating conditions as per clause 4.3 must be advised
|
