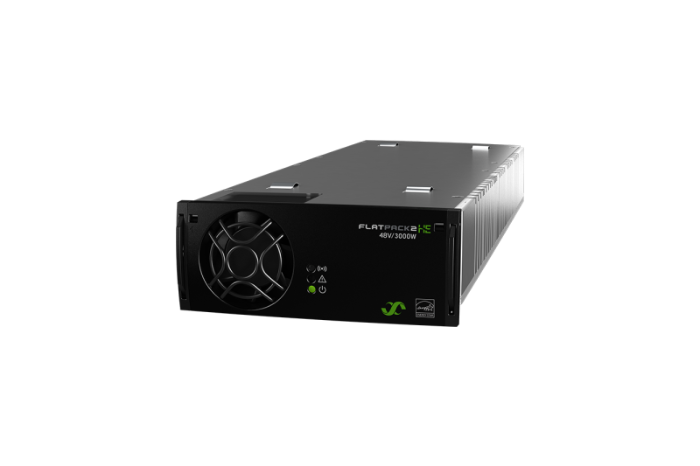

Delta (48V / 3000W HE) Flatpack2 HE Rectifier

Delta (48V / 3000W HE) Flatpack2 HE Rectifier

You often face power that is too high or too noisy for delicate electronics. That can damage batteries, reduce efficiency, and cause costly downtime. The Delta rectifier removes those risks by providing a stable DC output that matches your systems voltage range. It protects against spikes, limits inrush current, and keeps voltage regulation tight, so you get reliable performance without constant monitoring.

Benefits

• Stable DC output from 43.2 V to 582 V lets you fine-tune for any battery or load.
• Built-in fuse, varistor, and temperature protection keep your system safe.
• Low ripple (<150 mVpp) and low noise (<2 mVRMS) protect sensitive electronics.
• Fast dynamic regulation (<5 % change in under 50 ms) maintains power during load swings.
• Compact flat-pack design saves space in tight installations.

Key Features

• Input voltage: 85 - 305 VAC, 45 - 66 Hz.
• Nominal input current: 19.2 ARMS at full load.
• Output power: 3000 W maximum.
• Default output voltage: 53.5 VDC, adjustable to 43.2 - 582 VDC.
• Maximum output current: 62.5 A.
• Static voltage regulation 0.5 % (10-100 % load).
• Dynamic voltage regulation 5 % with response <50 ms.
• Protection: fuse, short-circuit proof, high-temperature shut-off, hot-plug inrush limiting.
• Low ripple and noise for clean power.
• Compact flat-pack housing for easy mounting.
