Imagine a telecom rack that never worries about power drops or overheating. The Delta (CellD 100) 19'' 2U Telecom Power System is that reliable heart for your network. It delivers clean 48 V power to every piece of equipment, keeping voice, data and wireless links alive. If you have ever lost service because a power supply failed, this unit solves that pain with built-in redundancy and high efficiency.

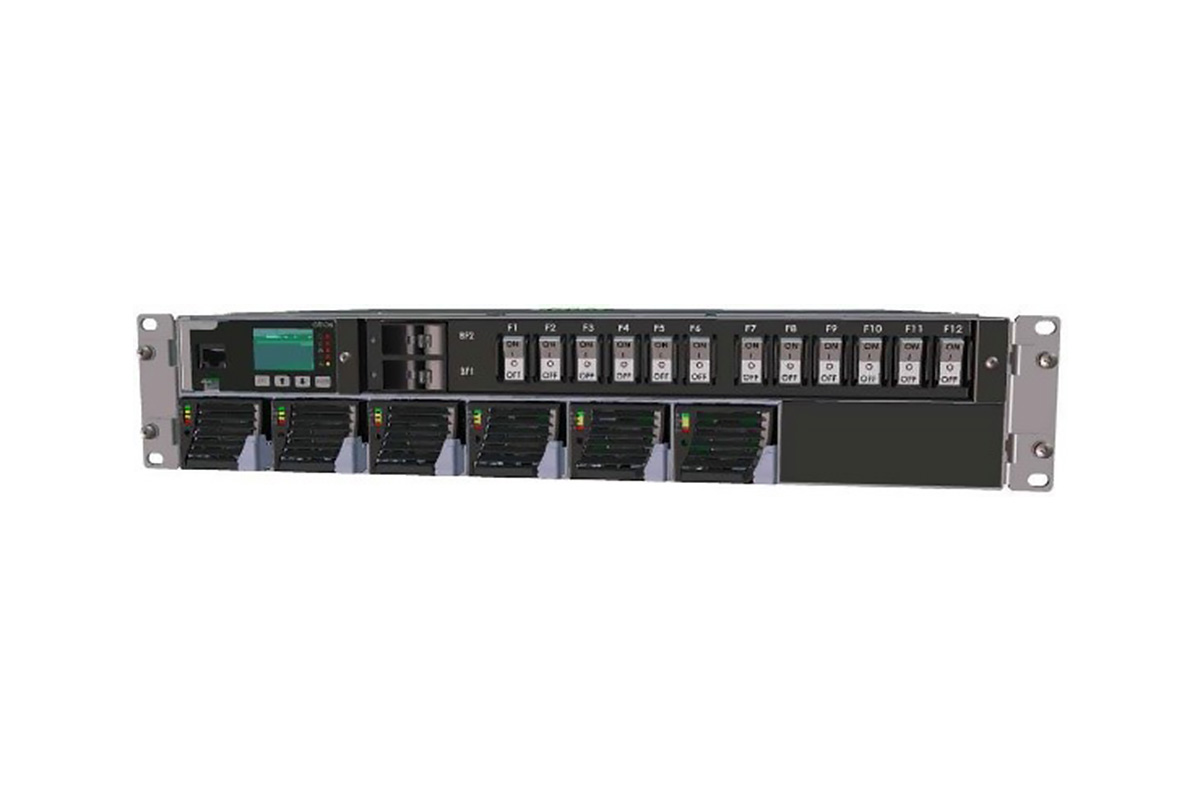

Delta (CellD 100) 19'' 2U Telecom Power System
CellD 100 is the power system playing the leader role in wire and wireless network application.
To maintain all aspects of the power performance at high level, Delta DPS 850 and DPS 2900 Series is featured with the high cost-performance ratio and gorgeous efficiency all rolled into one, that is, your one of a kind energy core.
Relying on the advanced controller, flexible PDUs and outstanding rectifiers providing power for 48V system can reach each full potential in a compact 2U shelf.
Key Features
- Input: 100-240 VAC single phase, 3 W consumption.
- Input voltage range: 80-300 VAC, frequency 45-66 Hz.
- Output: 48 VDC default, adjustable 42-58 VDC.
- Maximum power: 8.7 kW at nominal input.
- Output current: up to 100 A.
- Altitude capability: -80 m to +4000 m.
- Humidity tolerance: up to 95 % non-condensing.
- Noise level: less than 60 dBA.
- Compliant with RoHS, IEC 60950, EN 300 386 and ETSI standards.
Specifications
| INPUT |
|
| Voltage (nominal) |
Single phase; 100-240VAC; 3W (L, N, PE) |
| Voltage (range) |
80 - 300VAC |
| Frequency |
45 - 66Hz |
| OUTPUT |
|
| Voltage (nominal) |
53.5VDC |
| Voltage (default) |
48VDC |
| Voltage (adjustable range) |
42 to 58VDC |
| Maximum Power @ nominal Input |
8.7kW |
| Output current |
100 A (Max.) |
| MECHANICAL |
|
| Dimensions (W x H x D) |
444 x 86.8 x 323mm (17.2 x 3.4 x12.7in) |
| Weight |
approx. 7kg (15.4Ib) |
| ENVIRONMENTAL |
|
| Operating Temperature |
-45 to +65 ᵒC (-49 to +149 ᵒF) |
| Altitude |
-80 to +4000m |
| Related Humidity |
95%, non-condensing (Max.) |
| Acoustic Noise |
< 60dBA |
| STANDARDS |
|
| Environment |
RoHS, ETSI EN 300 019-1-3 |
| Safety standard |
IEC 60950 |
| EMC standard |
EN 300 386 |
