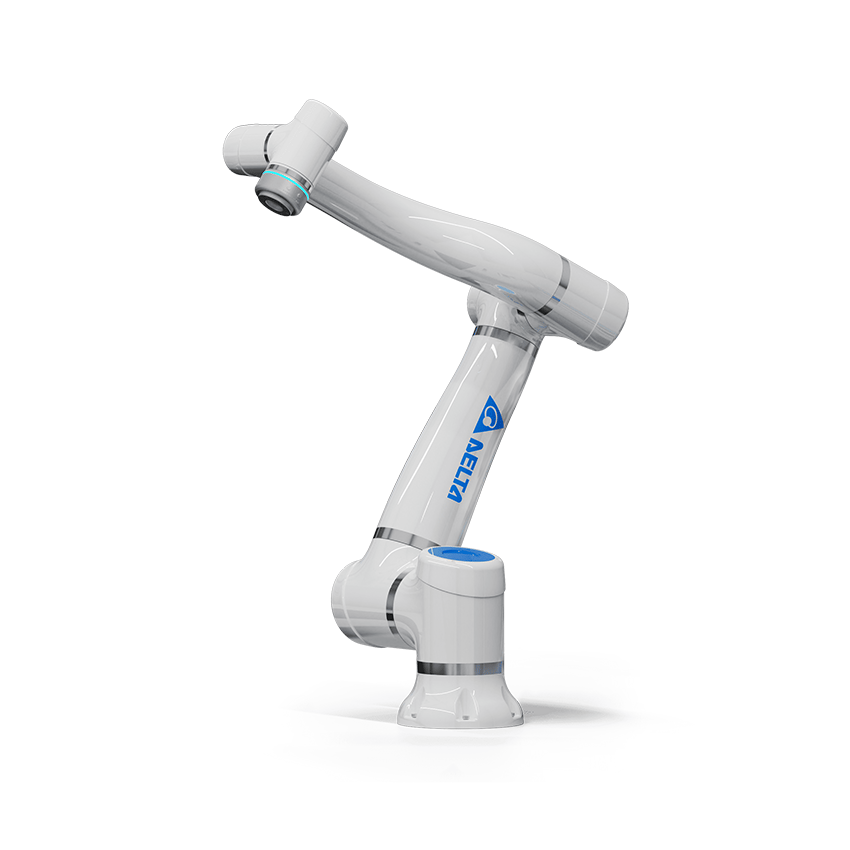

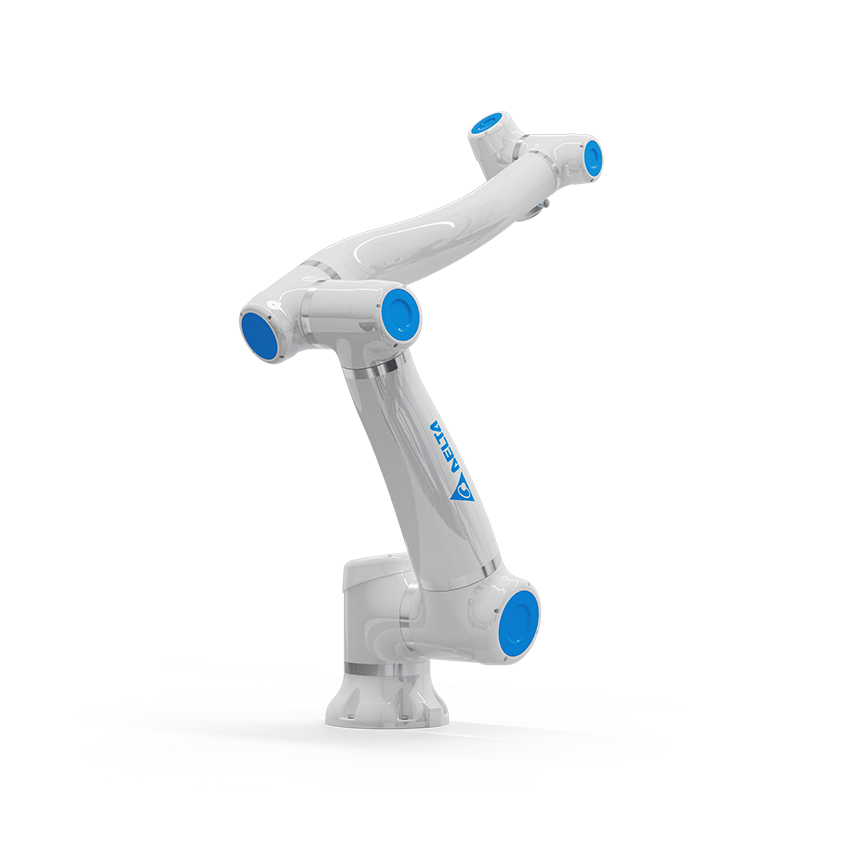

Delta D-Bot DC10 Collaborative Industrial Robot

The Delta D-Bot D10 is a modern cobot of the latest generation. It offers a payload of 10 kg and a reach of 1200 mm, making it extremely versatile. This flexibility and repeatability of just 0.02mm allow the D-Bot to adapt seamlessly and easily to a wide range of tasks. Quick programming for different applications is possible without extensive set-up.

The D-Bot's robust design, combined with its compact build and IP66 rating, makes it suitable for a variety of demanding environments where other collaborative robots may not be suitable. In addition, its design allows for easy cleaning and makes it resistant to dirt and debris.

When it comes to safety, the D-Bot is also ideally positioned and offers functions such as defining safe positions, limits and collision detection. This means that the cobot can be easily integrated into work environments shared with people.

The solution ensures the safe handling of delicate parts and enables the precise assembly of objects with consistent force. This not only eliminates unnecessary waste, but also prevents potentially costly collisions.

With its high level of safety, accuracy and speed, the D-Bot series closes the gap between cobots and industrial robots. This makes the D-Bot series an efficient and cost-effective solution for automating production processes.

Key  Features:

• Payload : 10kg
• Maximum Reach  : 1200mm
• Consistant Accuracy  : ±0.02mm
• Enhanced Speed : Max 3 m/s
• Safety Features : Pld Cat. 3 / SIL 2

Specifications:
